Pick-to-Light Displays – Banner – PTL110S-FF200TD3-QP150

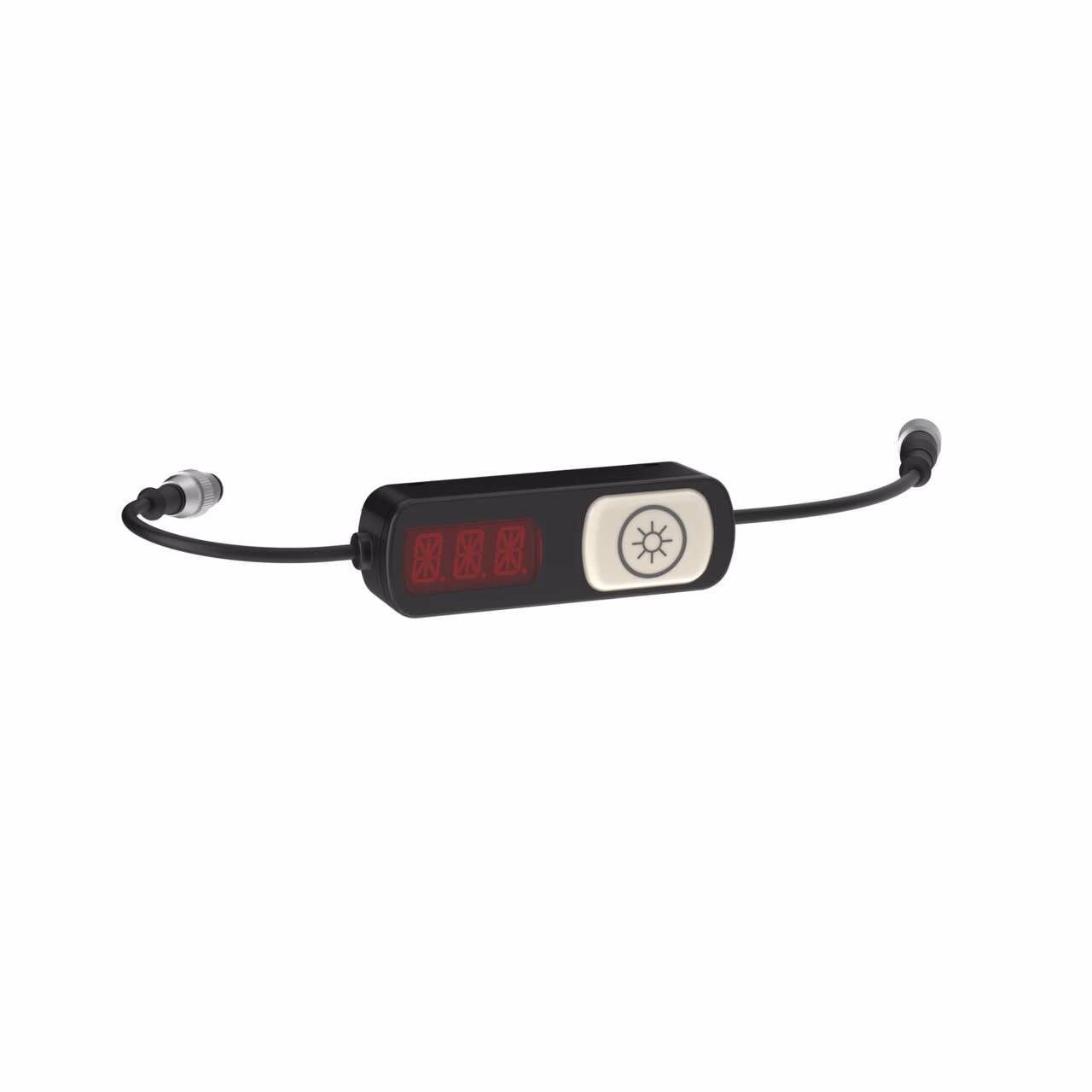

PTL110 Node
Voltage: 10-30 V dc; Environmental Rating: IP54
200 mm Fixed Field; Touch Sensor; 3-digit 14-segment LED Display
150 mm (6 in) M12 PVC Pigtail QDs
| Color Technology | RGB Configurable |
|---|---|
| Connection | Pigtail QD |
| Feature: Audible | No |
| Maximum Sensing Distance (mm) | 200 |
| PICK-IQ (Modbus RTU) | Yes |
| Pick-to-Light Function | Programmable |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Sensing Mode (General) | Fixed Field |
| Actuation | Yes |
| Animation Option 1 | Modbus Controlled |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| Environmental Rating | IP54 |
| EPLAN Original Sent Date | 04/13/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Flat Mount – Flat Window |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Modbus RTU | Yes |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of beams | 1.0 |
| Number of colors/segments | 14 |
| Number of Conductors | 4.0 |
| Operating mode | Capacitive Touch and Optical |
| Operating voltage | 10-30 V dc |
| Output type | Communication Protocol |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 110.0 x 35.0 x 33.1 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP54 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Slot width (mm) | 0.15 |
| Touchscreen | Yes |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 110 |
| Max Current Color (mA) | 155.0 |
Description
PTL110 Node
Voltage: 10-30 V dc; Environmental Rating: IP54
200 mm Fixed Field; Touch Sensor; 3-digit 14-segment LED Display
150 mm (6 in) M12 PVC Pigtail QDs
