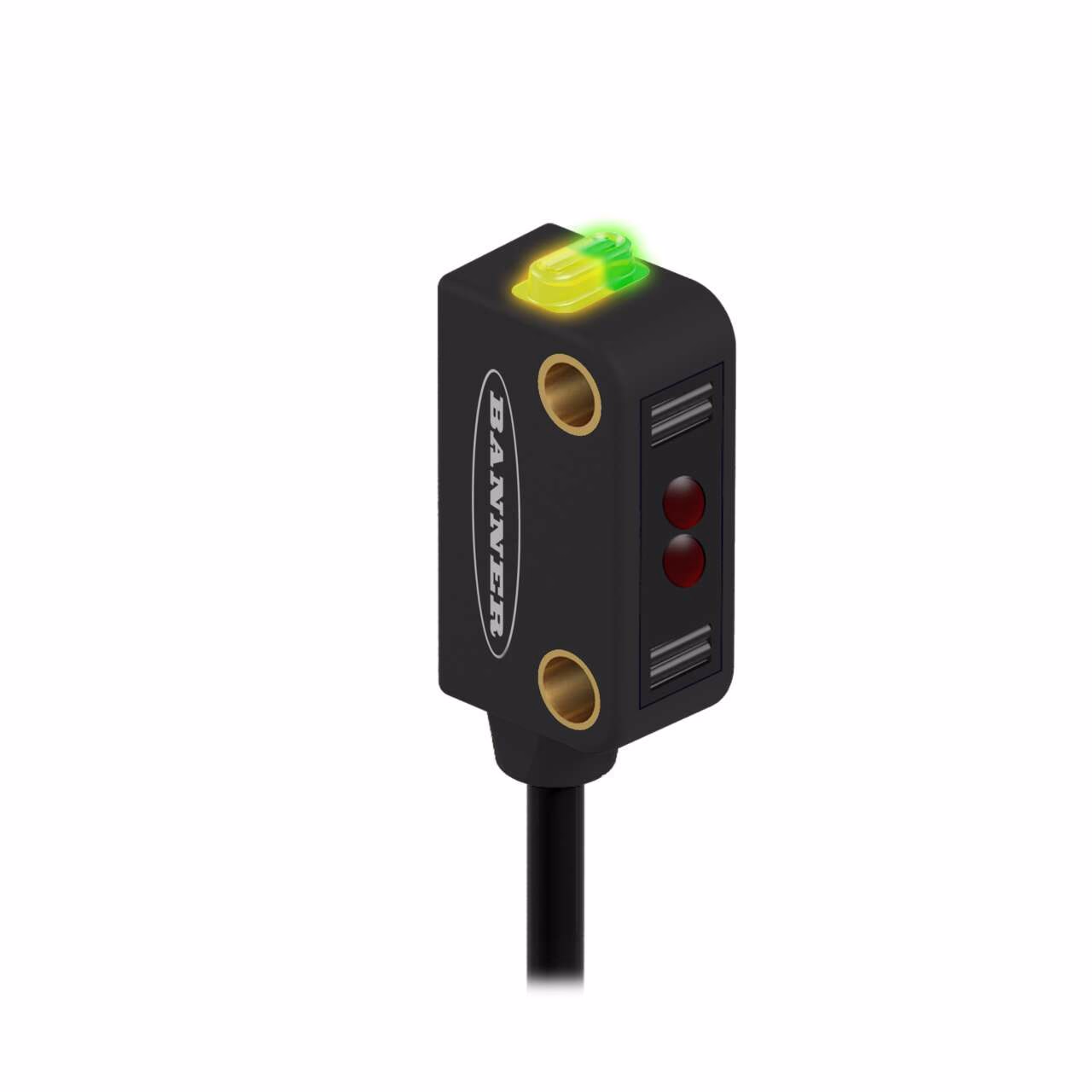

Q12 Series Miniature Self-Contained Sensor – Banner – Q12RP6LPQ3
WORLD-BEAM Q12 Series: Polarized Retro
Range: 1 m; Input: 10-30 V dc
Output: DO; 1 PNP
150 mm (6 in) 3-pin M8 Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Retroreflective |
| Connection technology signal | Polarized |
| DeviceNet | No |
| EPLAN Original Sent Date | 06/06/2024 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Homerun Exit Location | 0.7 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Glass |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Operation | Dark Operate |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 640 |
| Min Op. Temperature (C) | -20 |
| Slot width (mm) | 0.15 |
| Delay at Power-up (ms) | 120 |
| Max Sensing Distance (mm) | 1000 |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
Description
WORLD-BEAM Q12 Series: Polarized Retro
Range: 1 m; Input: 10-30 V dc
Output: DO; 1 PNP
150 mm (6 in) 3-pin M8 Pigtail QD
