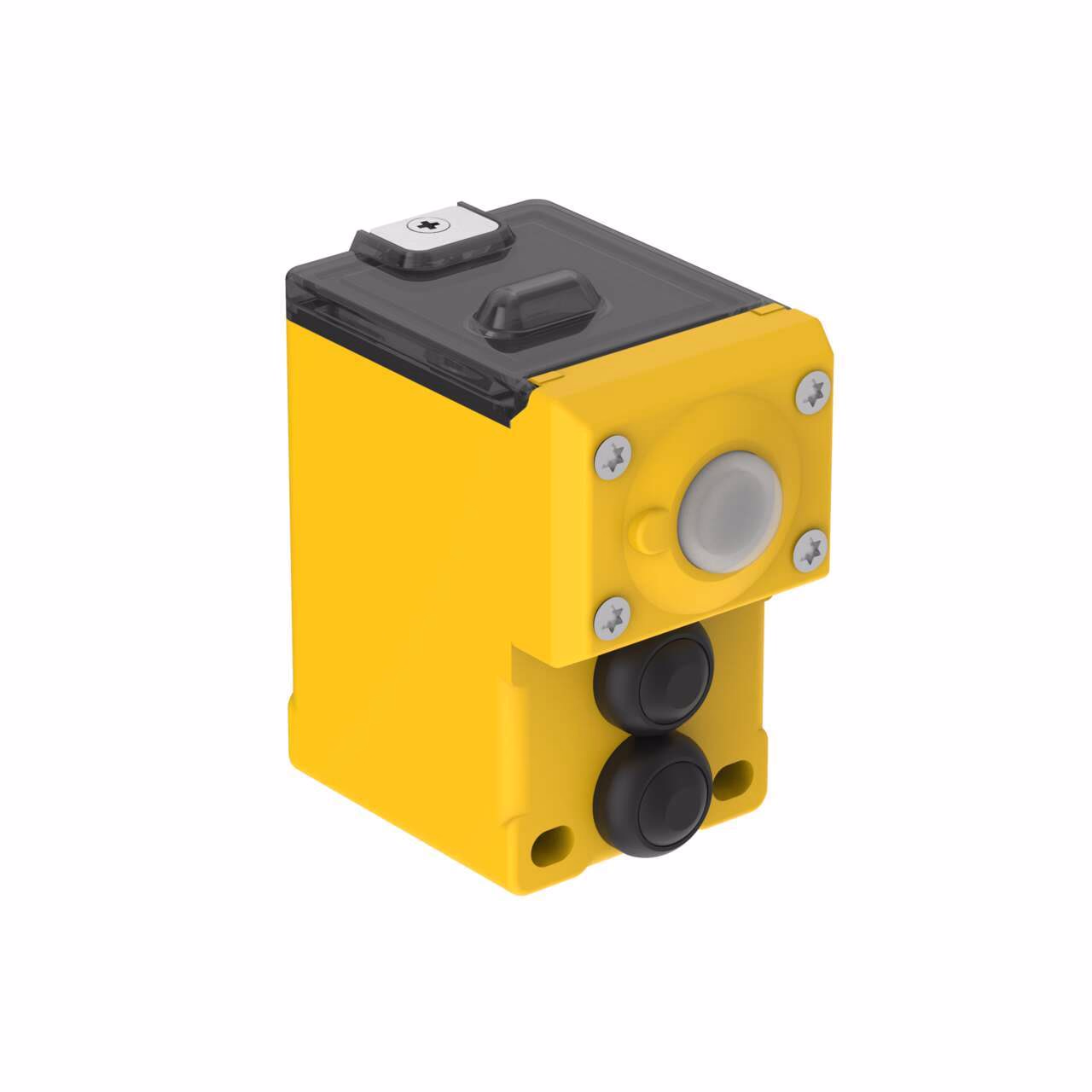

Q45 Switches and Push Buttons – Banner – DX80N9Q45B2L-NH
Wireless Q45 Sensor
Dual Button & Light 900 MHz
Four Color LED Indicator Light No Hub
| 1-wire Serial Interface | No |
|---|---|
| LCD Display | No |
| Max Temp Operating Conditions (C) | 70 |
| Min Temp Operating Conditions (C) | -40 |
| Output Details | Light |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Relative Humidity | 90% at 50° C |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | Two Button |
| Device type | Push Button |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 2 AA Batteries |
| Power Good Output | Battery |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Indicator Light |
Description
Wireless Q45 Sensor
Dual Button & Light 900 MHz
Four Color LED Indicator Light No Hub
