QS18 Series All Purpose Photoelectric Sensor – Banner – QS18WE

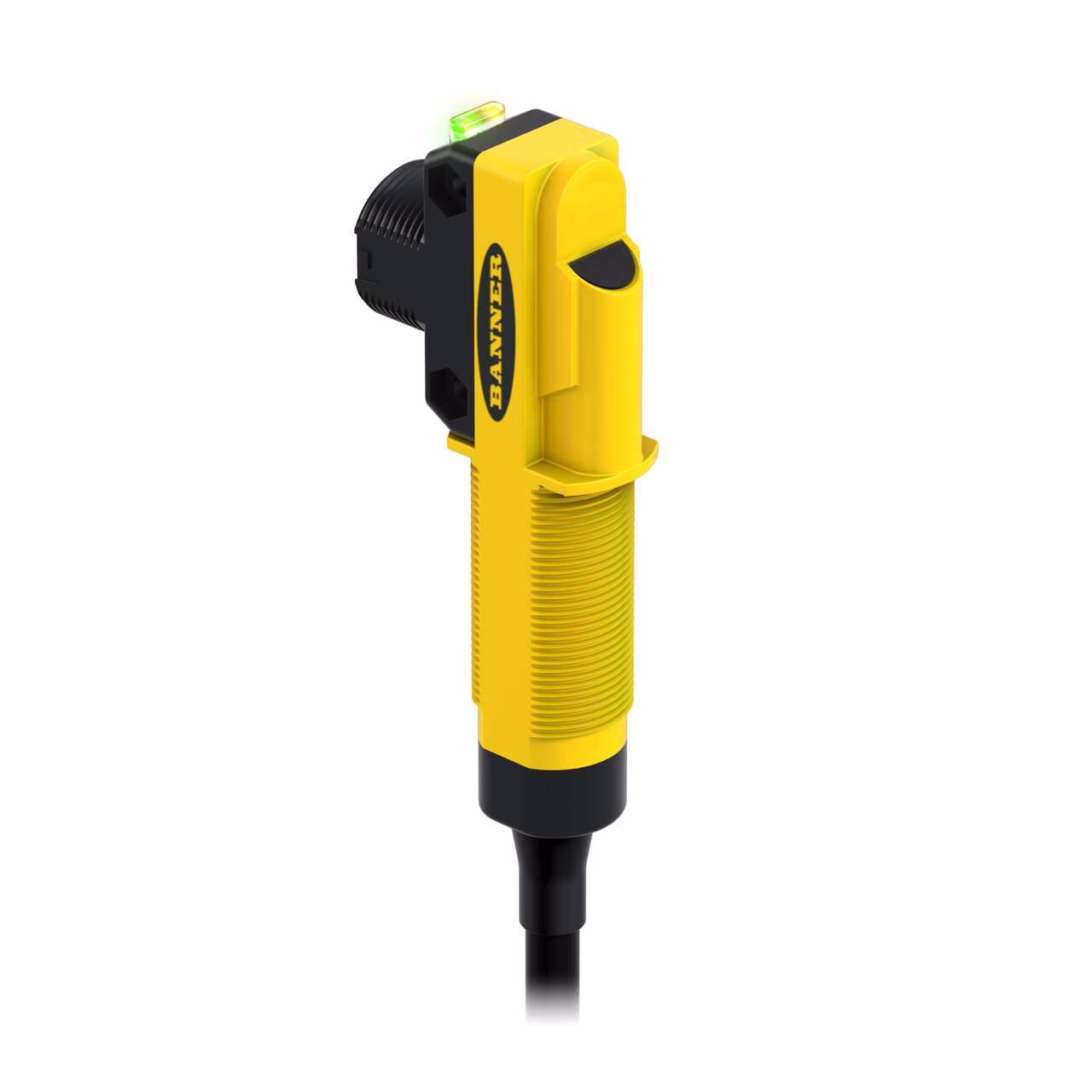

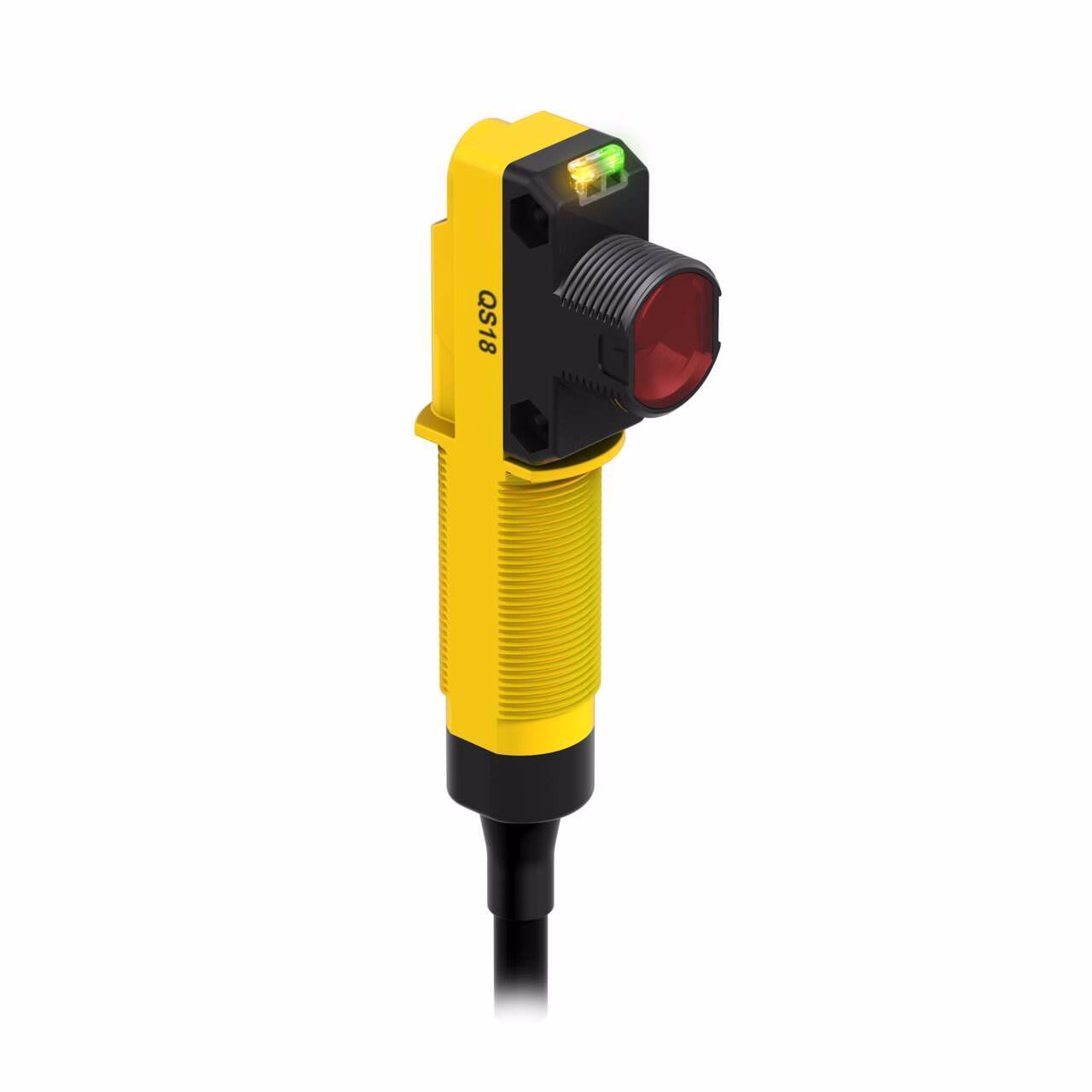

WORLD-BEAM QS18 Universal Voltage Emitter
Range: 20 m
Output: Not Applicable
2 m Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| Homerun Exit Location | 16.6 |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 2 |
| Operating voltage | 20-270 V ac/dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Power Good Output | AC/DC Universal |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -25 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100ms dc, 300ms ac |
| Max Sensing Distance (mm) | 20000 |
| Max Op. Temp. (C) | 70 if 140V |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Barrel Diameter (mm) | 18 |
Description
WORLD-BEAM QS18 Universal Voltage Emitter
Range: 20 m
Output: Not Applicable
2 m Cable
