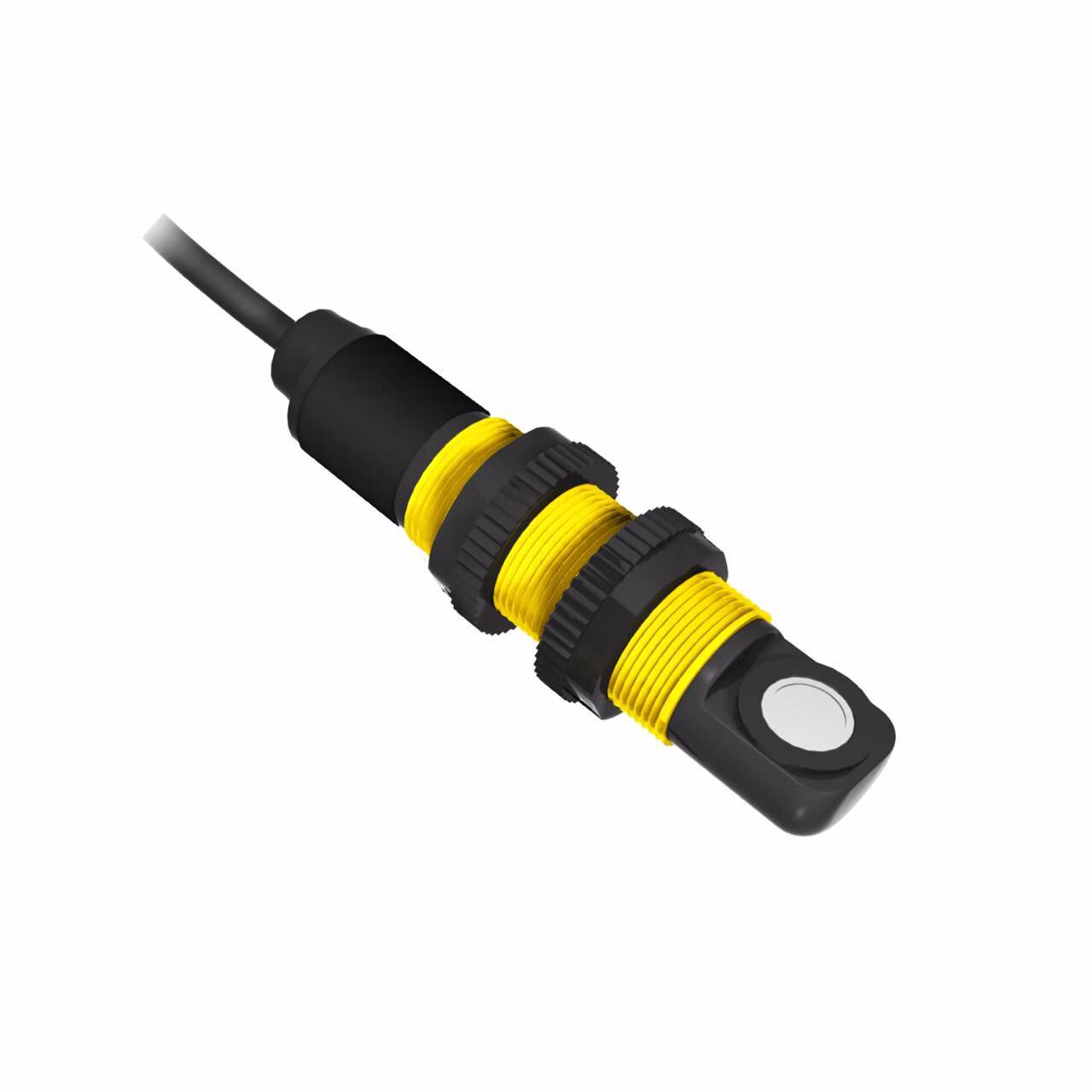

S18U Series Barrel Ultrasonic Sensor – Banner – S18UBAR
Discrete S18U Right-Angle Series: Proximity Mode
Range: 30-300 mm; Input: 10-30 V dc
Output: Bipolar: 1 PNP 1 NPN
2 m (6.5 ft) Cable
| Connection | Flying Leads |
|---|---|
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -20 |
| Minimum Sensing Distance (mm) | 30 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 300 |
| Adjustments | Push Button; Remote Teach |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Clear Object Detection, Remote Teach |
| Housing Style | Barrel – Right Angle |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS/Polycarbonate |
| RS-232 | No |
| Screw-in thread | M18 |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Max Sensing Distance (mm) | 300 |
| Minimum Response Time (ms) | 5 |
| Application.1 | Ultrasonic |
Description
Discrete S18U Right-Angle Series: Proximity Mode
Range: 30-300 mm; Input: 10-30 V dc
Output: Bipolar: 1 PNP 1 NPN
2 m (6.5 ft) Cable
