Single-Ended – Banner – BC-M12F4A-22-15

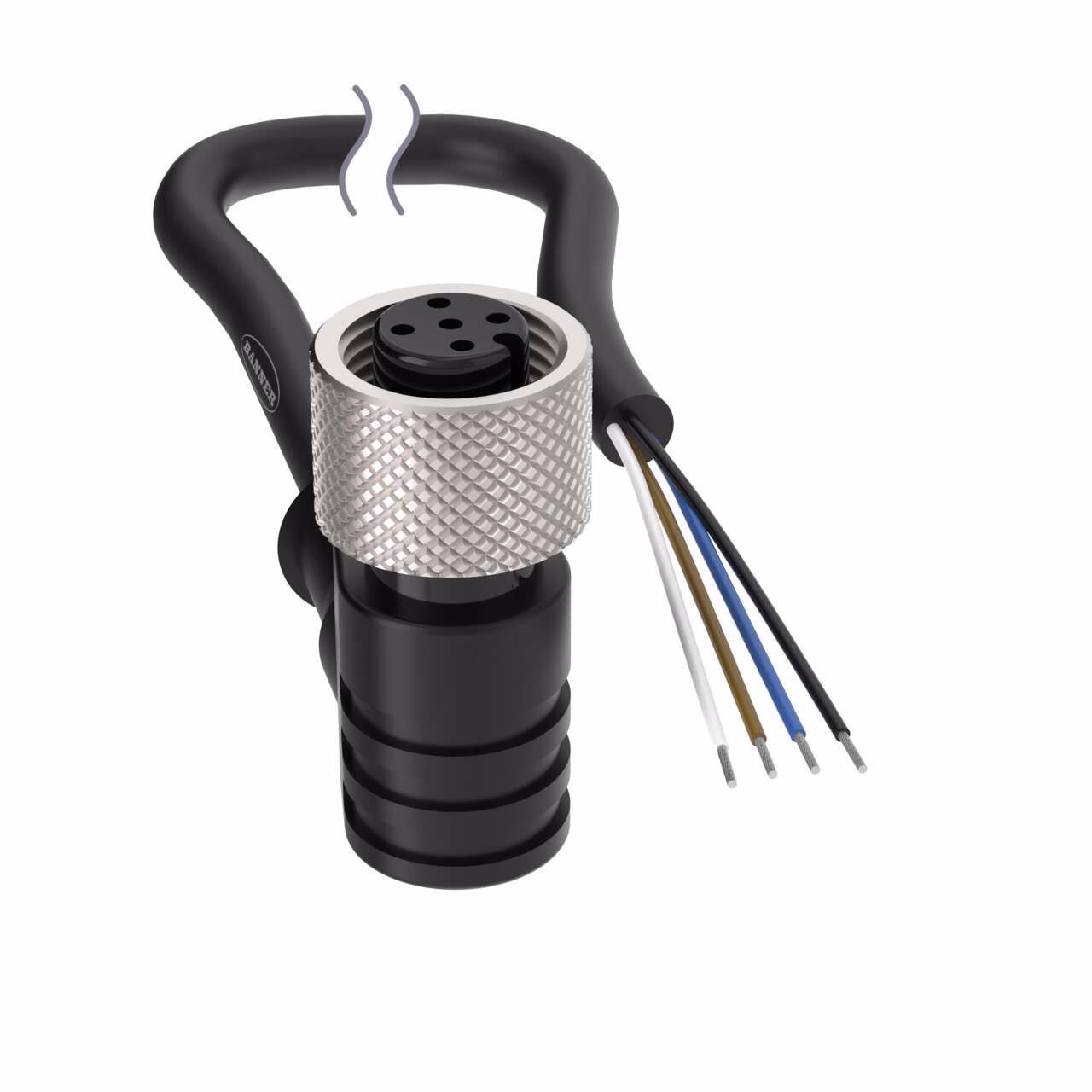

Cordset: Single-Ended M12
4-pin Right-Angle Female Connector
15 m (49.2 ft) 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Application | Signal |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Body Size | Standard |
| Connector 1 Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Overmold Material and Color | PUR Black |
| Connector 1 Thread/Snap | Threaded |
| Cordset Length (m) | 15.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Number of Conductors | 4.0 |
| Outside Cable Diameter (mm) | 5.21 |
| Wire AWG | 22 |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 4 |
| EPLAN Original Sent Date | 03/26/2025 |
| EPLAN Status | Pending Publish |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 30 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP66, IP67, IP68 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Single-Ended M12
4-pin Right-Angle Female Connector
15 m (49.2 ft) 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
