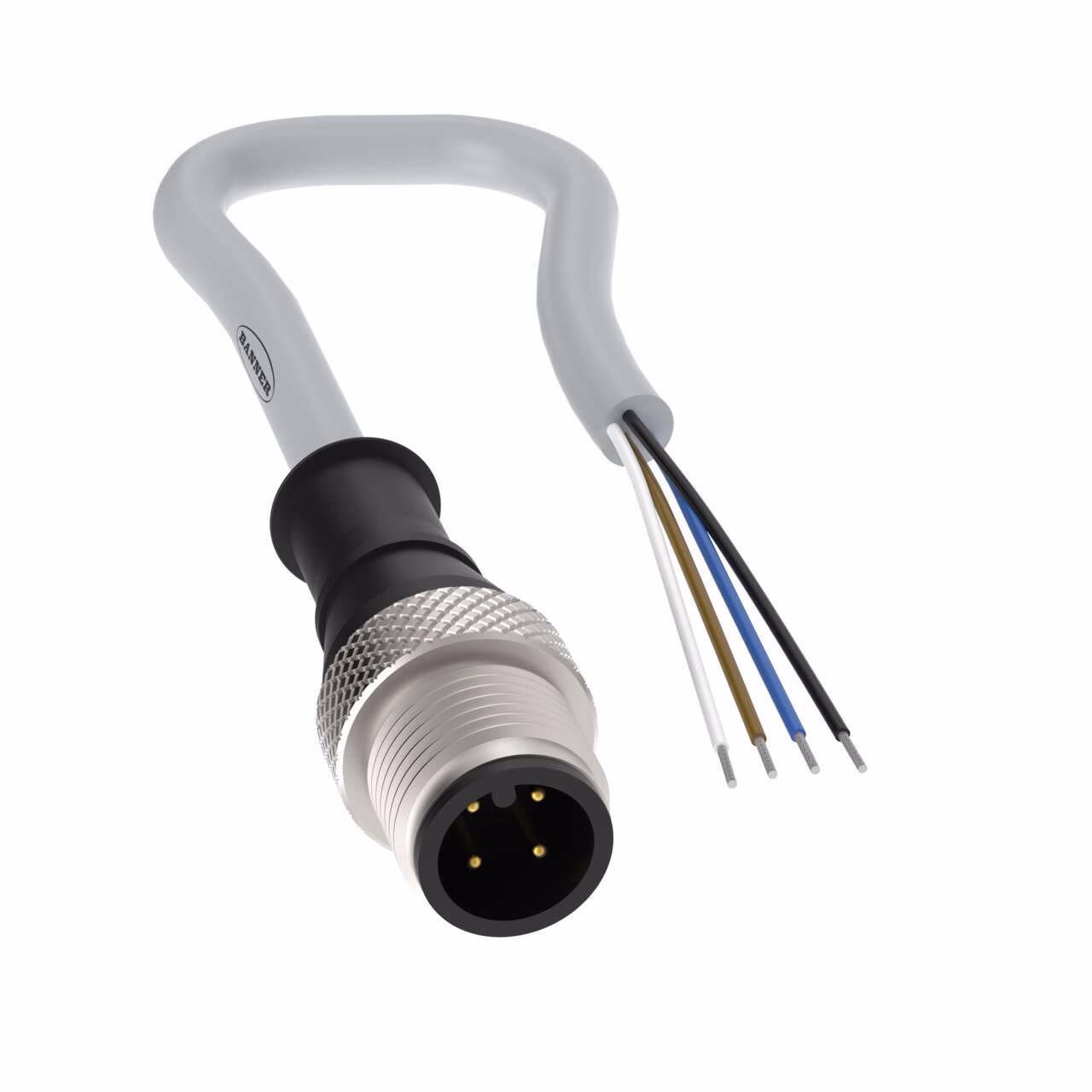

Single-Ended – Banner – BC-M12M4-G22-8-HF20
Cordset: Single-Ended M12
4-pin Straight Male Connector
8 m 4×22 Gray PVC Jacket High Flex
Nickel-Plated Brass Coupling Nut
| AWG | 22 |
|---|---|
| Application | Signal |
| Cable Jacket Color | Gray |
| Cable Jacket Material | TPE |
| Cordset Length (m) | 8.0 |
| Cordset Special Features | High Flex |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 5.21 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Male |
| Current (A) | 4.0 |
| EPLAN Original Sent Date | 08/22/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP66, IP67, IP68 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Single-Ended M12
4-pin Straight Male Connector
8 m 4×22 Gray PVC Jacket High Flex
Nickel-Plated Brass Coupling Nut
