Single-Ended – Banner – MAQDC-875RA

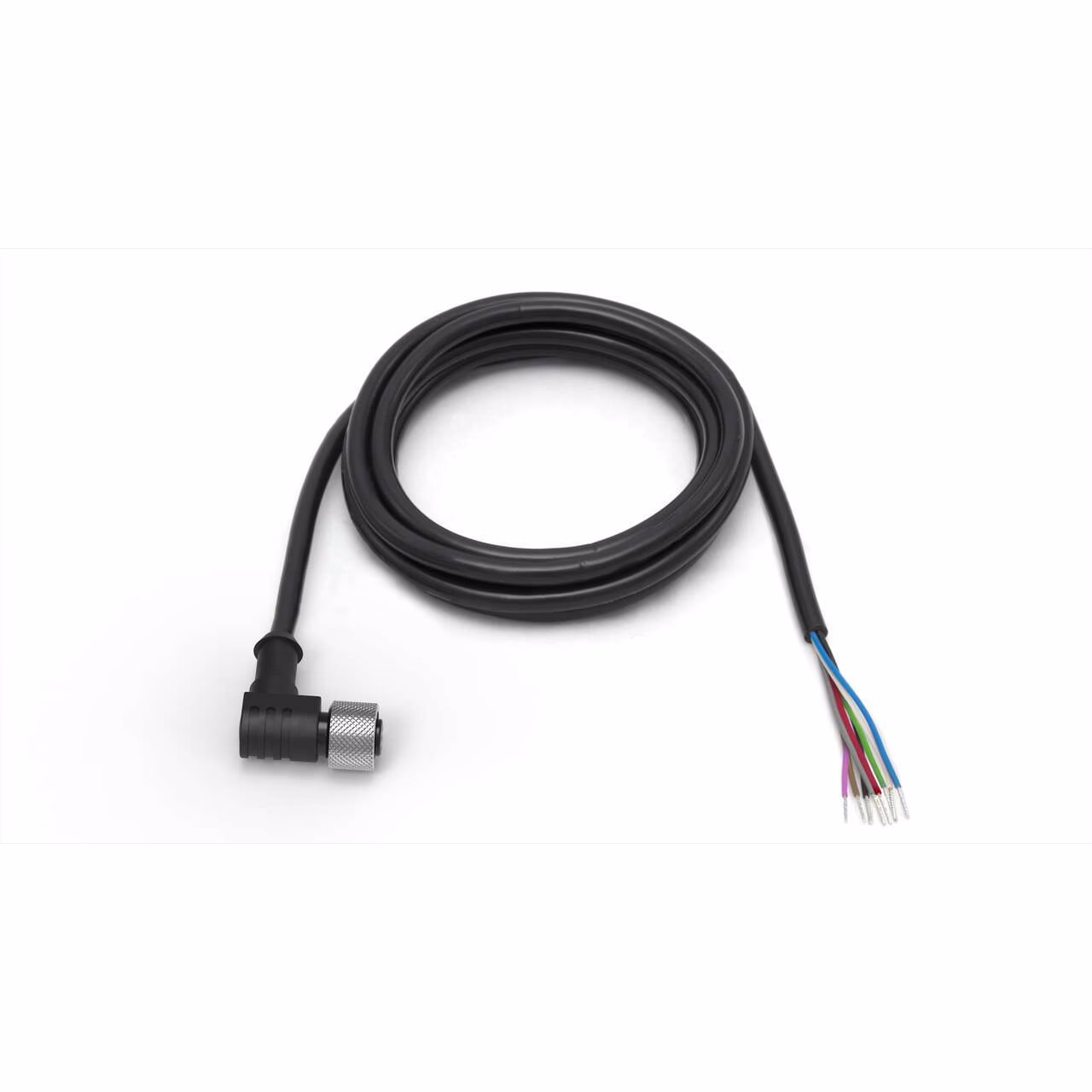

Cordset: Single-Ended M12
8-pin Right-Angle Female
23 m 8×24 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 23.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 5.59 |
| Shield/No Shield | Shield – Floating to Drain |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 2 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 8.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended M12
8-pin Right-Angle Female
23 m 8×24 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut
