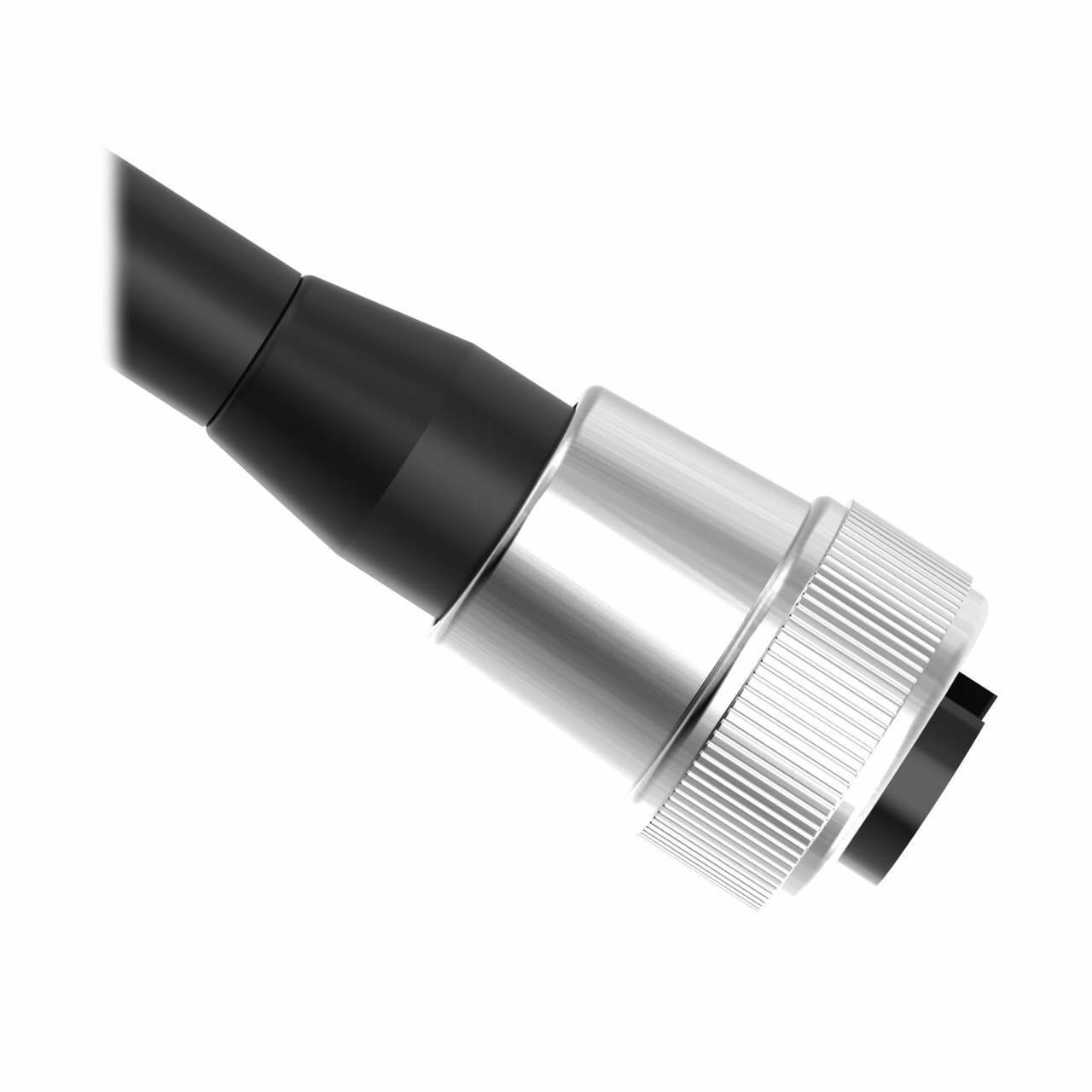

Single-Ended – Banner – MBCCL-506
Cordset: Single-Ended 7/8 in

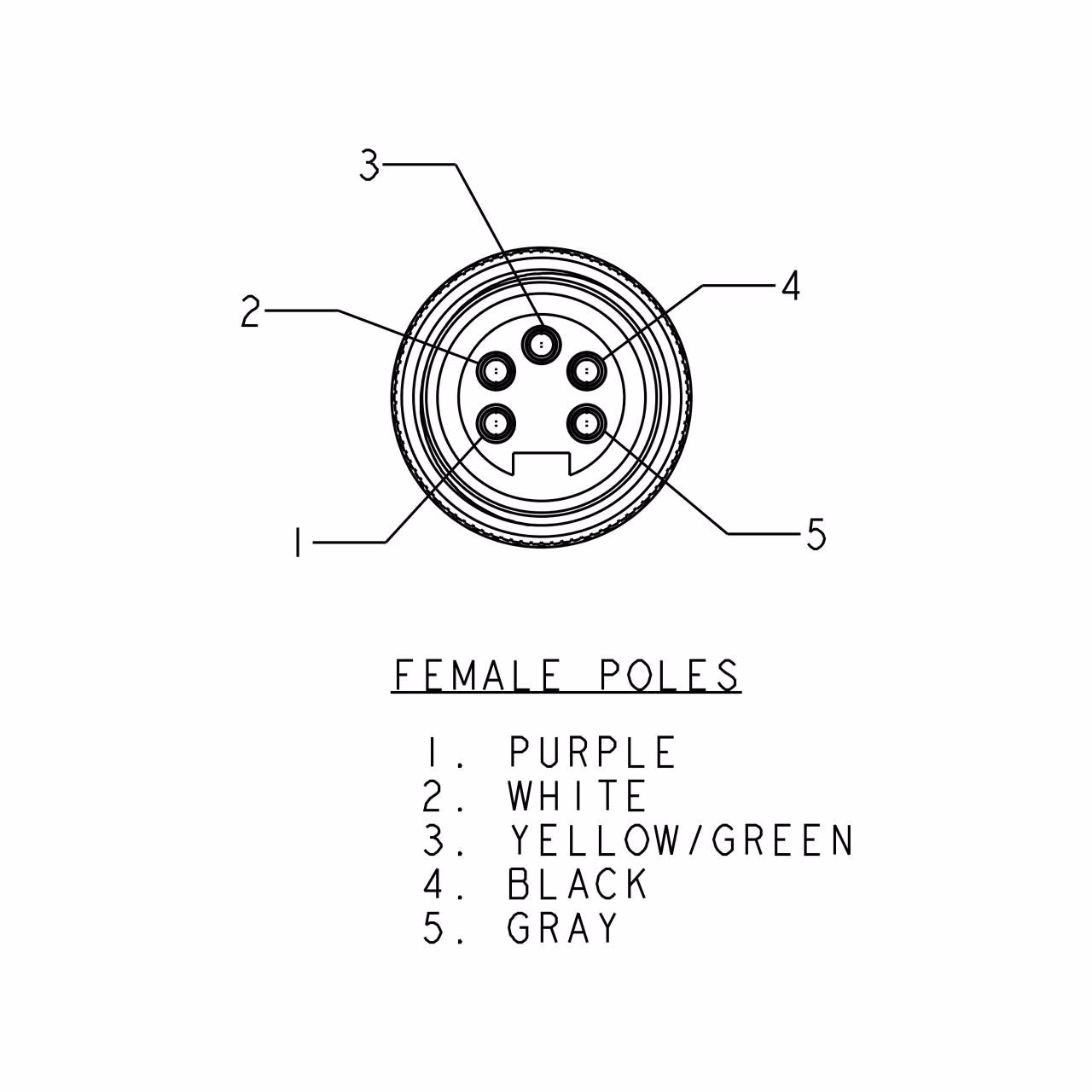

5-pin Straight Female
2 m (6.56 ft) 5×18 Black PVC Jacket
TPV Black; Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 2.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 11.60 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | 7/8 in. (Mini) |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 8 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | Yes |
| Operating voltage | 300 V ac/dc |
| Overmold Material and Color | TPV Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 5.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended 7/8 in
5-pin Straight Female
2 m (6.56 ft) 5×18 Black PVC Jacket
TPV Black; Nickel-Plated Brass Coupling Nut
