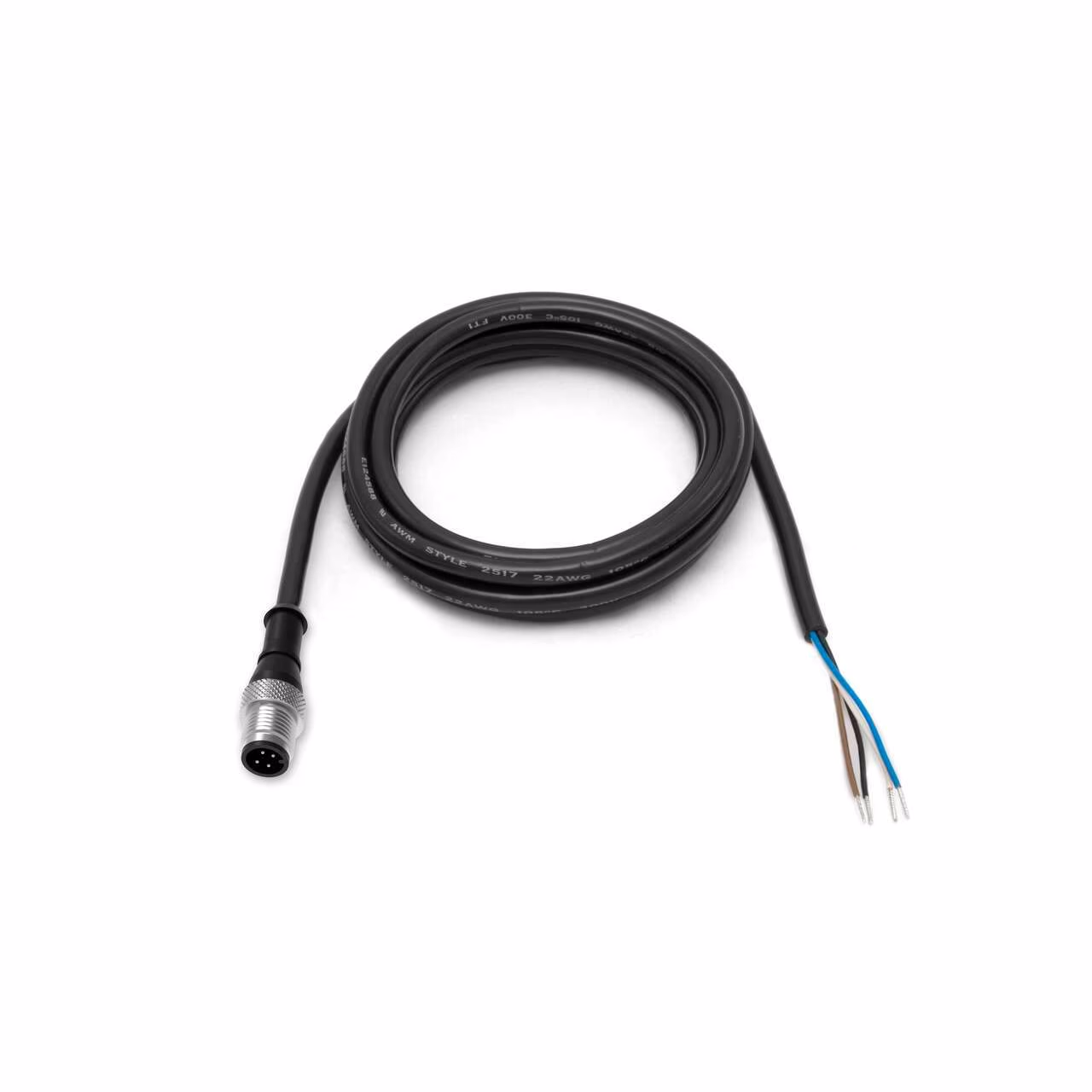

Single-Ended – Banner – MQDMC-401-12597
Cordset: Single-Ended M12
4-pin Straight Male
0.22 m 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 0.22 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 5.9 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Male |
| Current (A) | 4 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 250 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 4 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended M12
4-pin Straight Male
0.22 m 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
