Splitters – Banner – CSB-M1281M128.5
M12 QD Splitter Cable
8-pin Double-ended with 0.3 m Female Branches and
Male Rotatable Trunk Connector; 0.15 m Trunk Length
8×22 GA 1 ft Trunk 0.5 ft Branch
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 8, 8 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 8.0 |
| Trunk: Orientation | Straight |

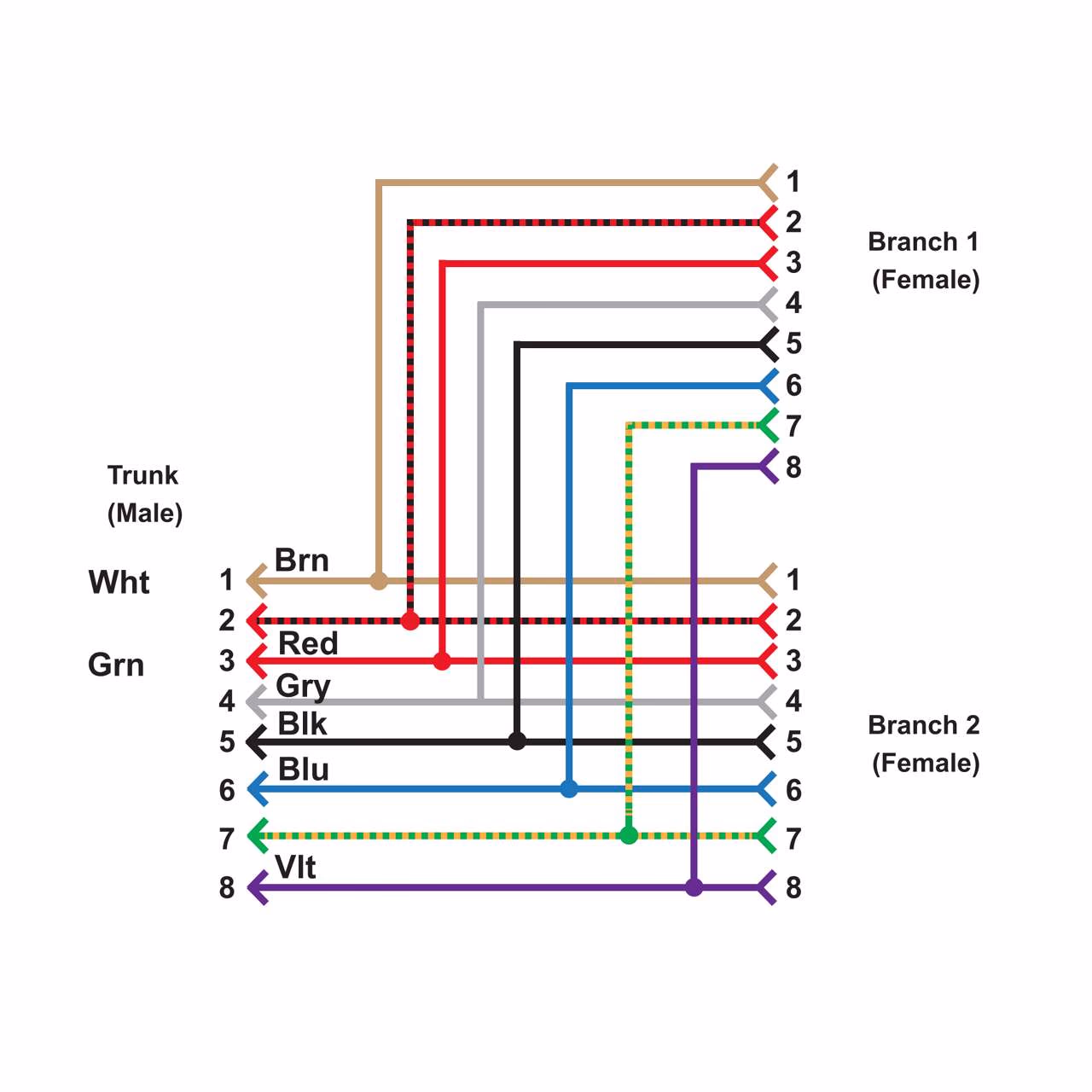

| Wiring | Parallel |
| Cable quality | PVC |
| Current (A) | 2.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Start/Restart interlock | Y |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Connector type.1 | M12, M12 |
Description
M12 QD Splitter Cable
8-pin Double-ended with 0.3 m Female Branches and
Male Rotatable Trunk Connector; 0.15 m Trunk Length
8×22 GA 1 ft Trunk 0.5 ft Branch
