Splitters – Banner – S15YA4-M125-M125-0.2M

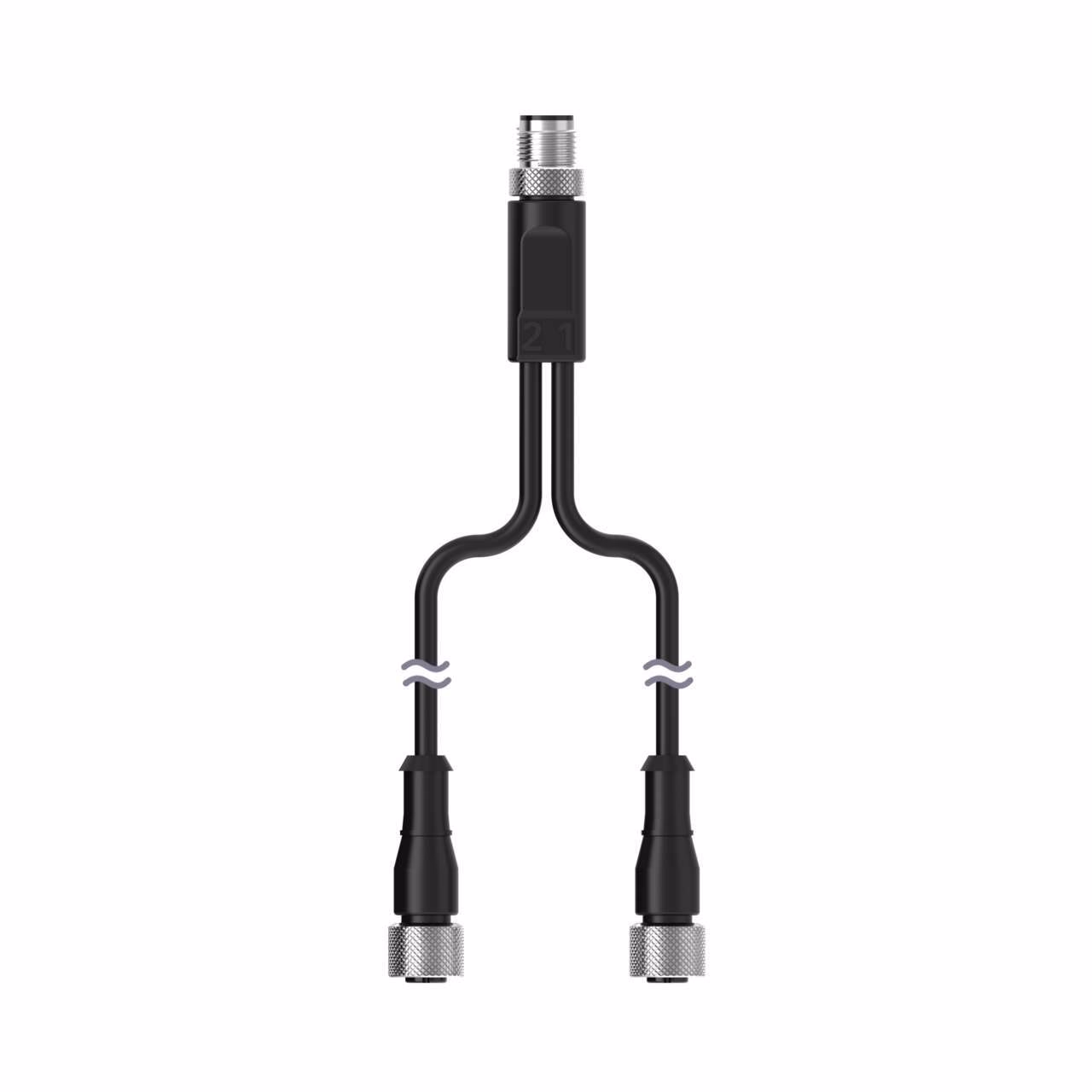

S15Y Series: Slimline Splitter
5-pin Male M12 A-Code; 2x 5-pin Female M12 A-Code 0.2 m Cables
Pin 4 output on 2 & 4 on HR
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 5, 5 |
| Cordset Length (m) | 0.2 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 5.0 |
| Trunk: Orientation | Straight |
| Wiring | Combiner |
| Current (A) | 4.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Maximum Temp. (Celsius) | 70.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Connector type.1 | M12, M12 |
Description
S15Y Series: Slimline Splitter
5-pin Male M12 A-Code; 2x 5-pin Female M12 A-Code 0.2 m Cables
Pin 4 output on 2 & 4 on HR
