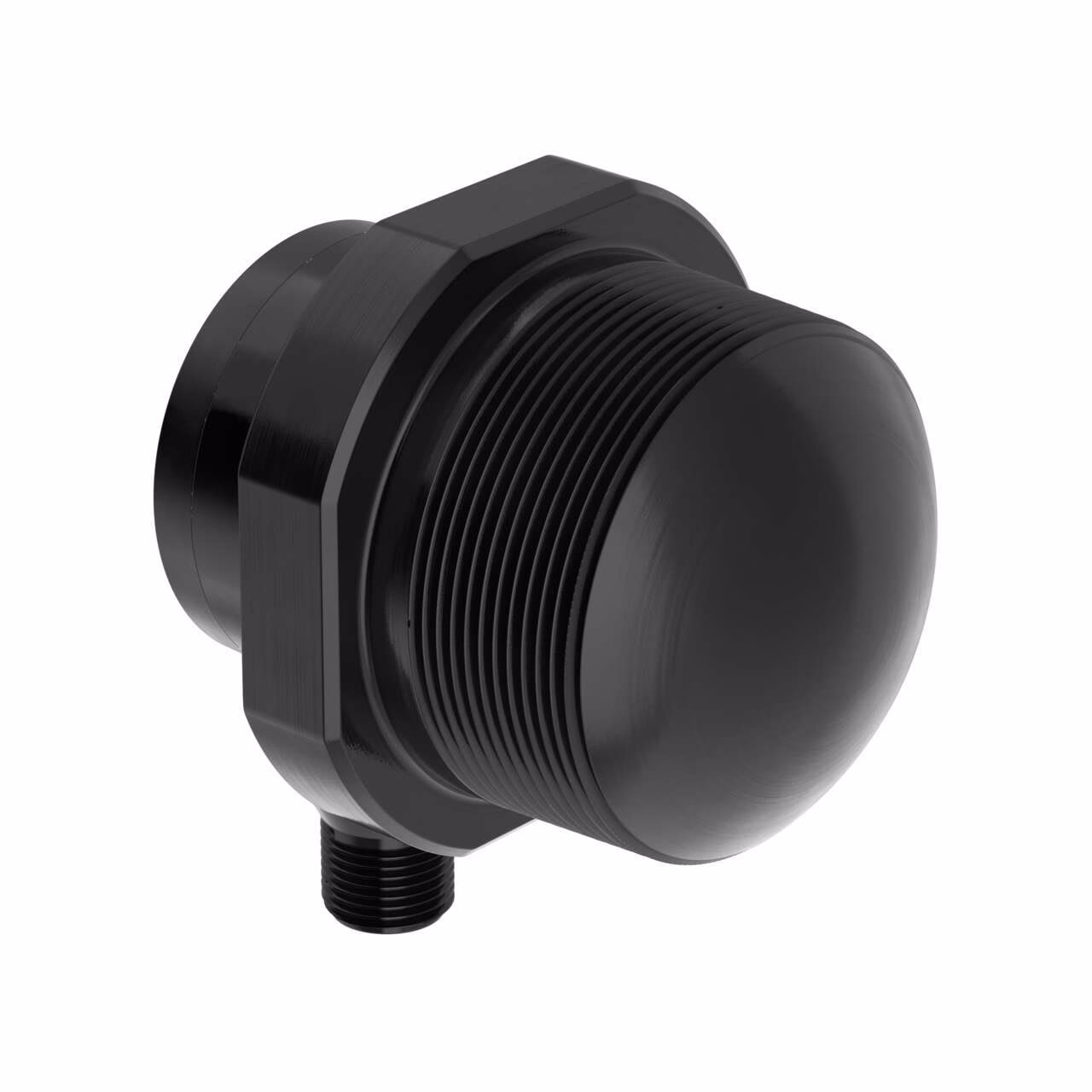

T30R Radar Sensor for Detecting the Widest Range of Objects – Banner – T30RW-1515-KUQ-NPT 1.5
T30R R-GAGE Washdown Series Radar Sensor
Range 15 m; Input 12-30 V dc
0-10 V Analog, 1 NPN/PNP Configurable with IO-Link
NPT 1.5
5-pin M12 Integral QD
| Analog Output Configuration | 0-10 V dc |
|---|---|
| Connection | Integral QD |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -40.0 |
| Minimum Sensing Distance (mm) | 150.0 |
| PC Configurable | Yes |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Software; Push Button; Remote Teach |
| Cert | Canada, European, Singapore, US |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Chemical Resistant, Clear Object Detection, Quick Disconnect, Remote Teach, Timing (Hold/Delay), Washdown Rated |
| Frequency band | 122 GHz |
| Housing Style | Barrel |
| Input/Output | Analog & Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Screw-in thread | 1.5″ NPT |
| Sensing Beam | Radar |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 15000.0 |
| Minimum Response Time (ms) | 6.0 |
Description
T30R R-GAGE Washdown Series Radar Sensor
Range 15 m; Input 12-30 V dc
0-10 V Analog, 1 NPN/PNP Configurable with IO-Link
NPT 1.5
5-pin M12 Integral QD
