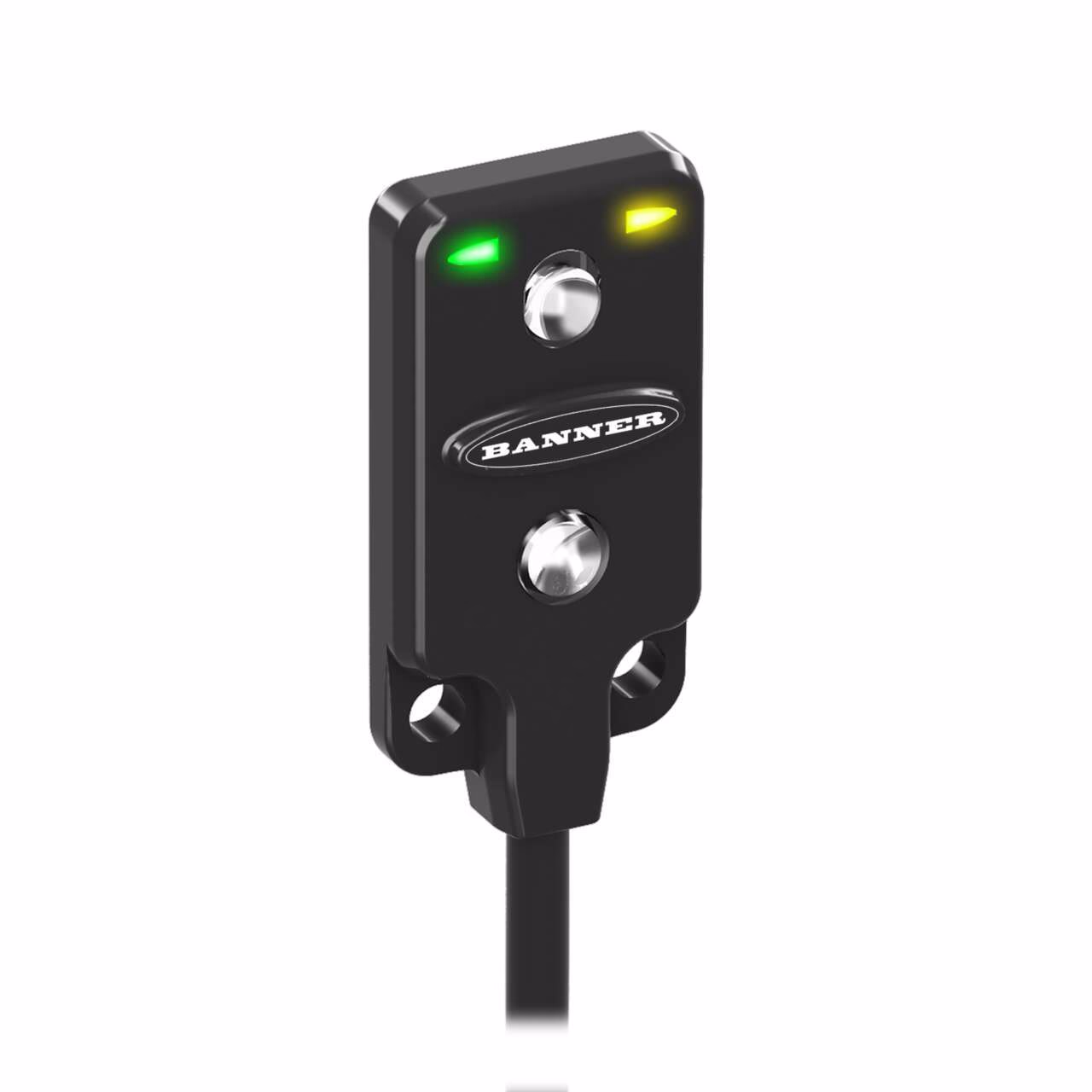

VS2 Series Ultra Thin Miniature Sensor – Banner – VS2AP5CV30Q5
VS2 AP5CV30Q5 CONVERGENT PNP 4-PIN M12 PIGTAIL PNP Light Operate
| Connection | Pigtail QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Convergent |
| DeviceNet | No |
| Feature | Quick Disconnect |
| Homerun Exit Location | 1 ON/0.5 OFF |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Lens Material | MABS |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 660 |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 30 |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 80% @ 50°C |
Description
VS2 AP5CV30Q5 CONVERGENT PNP 4-PIN M12 PIGTAIL PNP Light Operate
