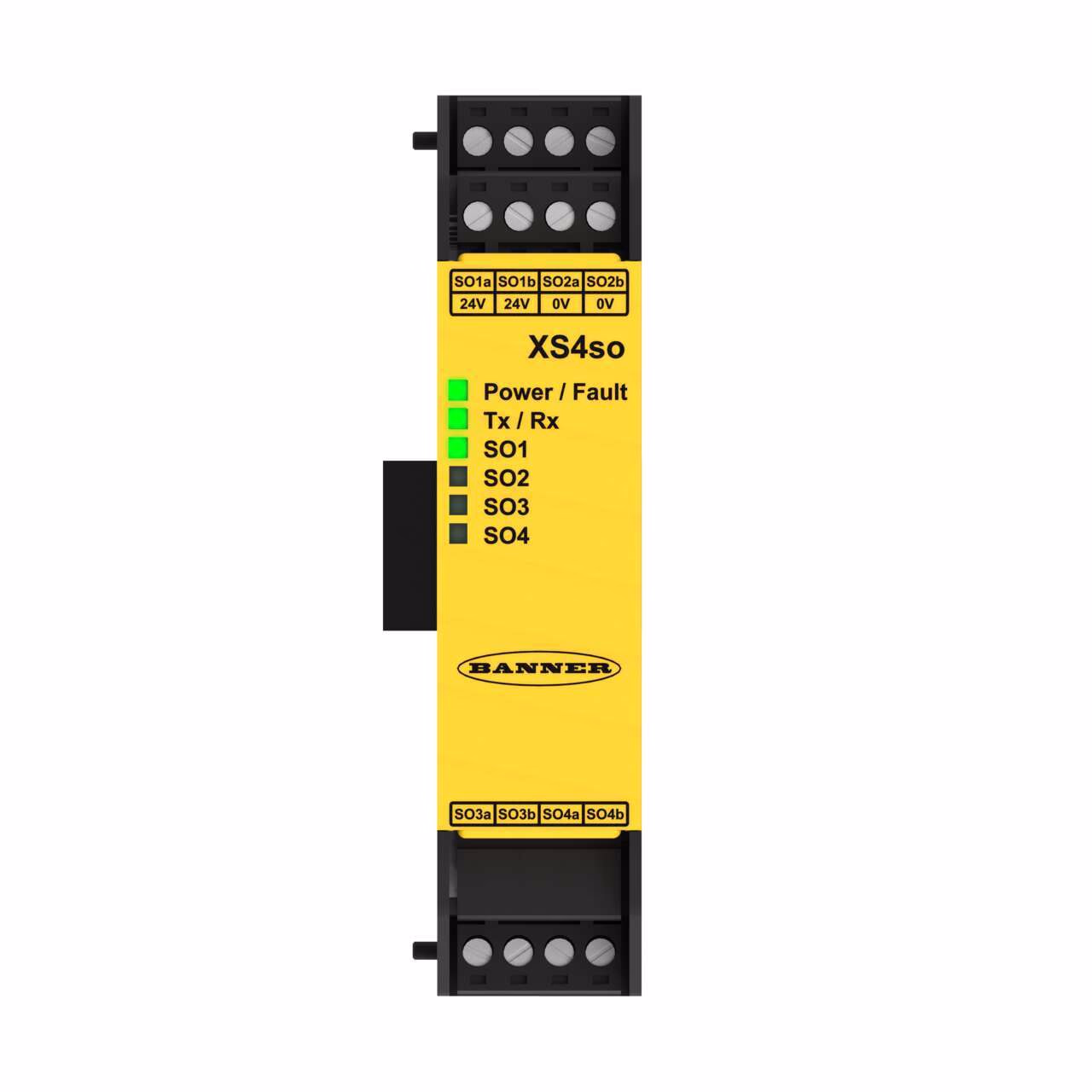

XS26 Expandable Safety Controllers – Banner – XS4SO
Safety Controller Expansion Module: Solid-State Output Module
4 pairs of PNP Safety Outputs (0.5 A each)
Used with XS26-2 Safety Controllers
| In-Series Diagnostics | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 55.0 |
| PCCC | No |
| Relative Humidity | 90% @ 50° C |
| SISTEMA | PFHd = 5.8 x 10-10 |
| Category acc. to ISO 13849-1:2008 | 4.0 |
| Device type | Safety Controller |
| EPLAN Original Sent Date | 06/20/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V dc |
| PL Rating | e |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Response Time (ms) | See Software Configuration Summary |
| Power Consumption | 4.1 A (external load maximum) |
| Safe Output Rating | OSSD 0.50 A max. @ 24 V dc |
| Light Curtains/Scanner without EDM Input | No |
| Removable Terminals | Yes |
| Splittable Safe Output | Yes |
| Terminal Type | Screw |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| Gate Switch (NC/NC) Input | No |
| Expandable | Yes |
| Dimension (H x W x D in mm) | 110 x 22.5 x 129 |
| Safety Module Type | Output Module |
| Output Configuration | 4 OSSD Pairs |
| Independently Controlled Safe Outputs | 8.0 |
| Non Safe Output Configuration | Up to 8 PNP |
| Network View and Configure | No |
| EtherCAT | No |
Description
Safety Controller Expansion Module: Solid-State Output Module
4 pairs of PNP Safety Outputs (0.5 A each)
Used with XS26-2 Safety Controllers
