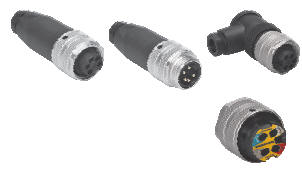

DeviceNet™ Field Wireable Connectors

These connectors allow the installer to use bulk cable to connect on site to various DeviceNet devices which have M12 and 7/8" connectors. They also allow cordsets to be shortened if required. They are available in male or female to suit various cable sizes. There are also models in a right-angled design.

Designed for DNET  -  All connectors are 5-Pole with Screw Terminals
Type Size Gender Cable External Diameter Design
B4151-0/9/DNET 7/8" Female 6.0…8.0 mm Straight
BS4151-0/9/DNET 7/8" Male 6.0…8.0 mm Straight
B4251-0/9/DNET 7/8" Female 6.0…8.0 mm Right Angled
BS4251-0/9/DNET 7/8" Male 6.0…8.0 mm Right Angled
B4151-0/13.5/DNET 7/8" Female 10.0…12.0 mm Straight
BS4151-0/13.5/DNET 7/8" Male 10.0…12.0 mm Straight
B4151-0/16/DNET 7/8" Female 12.0…14.0 mm Straight
BS4151-0/16/DNET 7/8" Male 12.0…14.0 mm Straight
B8151-0/PG9/DNET M12 Female 4.0…8.0 mm Straight
BS8151-0/PG9/DNET M12 Male 4.0…8.0 mm Straight
B8251-0/PG9/DNET M12 Female 4.0…8.0 mm Right Angled
BS8251-0/PG9/DNET M12 Male 4.0…8.0 mm Right Angled


  7/8"                      7/8"                                      M12                    M12


Dimensions Drawings
Inches [millimetres]
