Area Lights – Banner – LEDRA62X62W

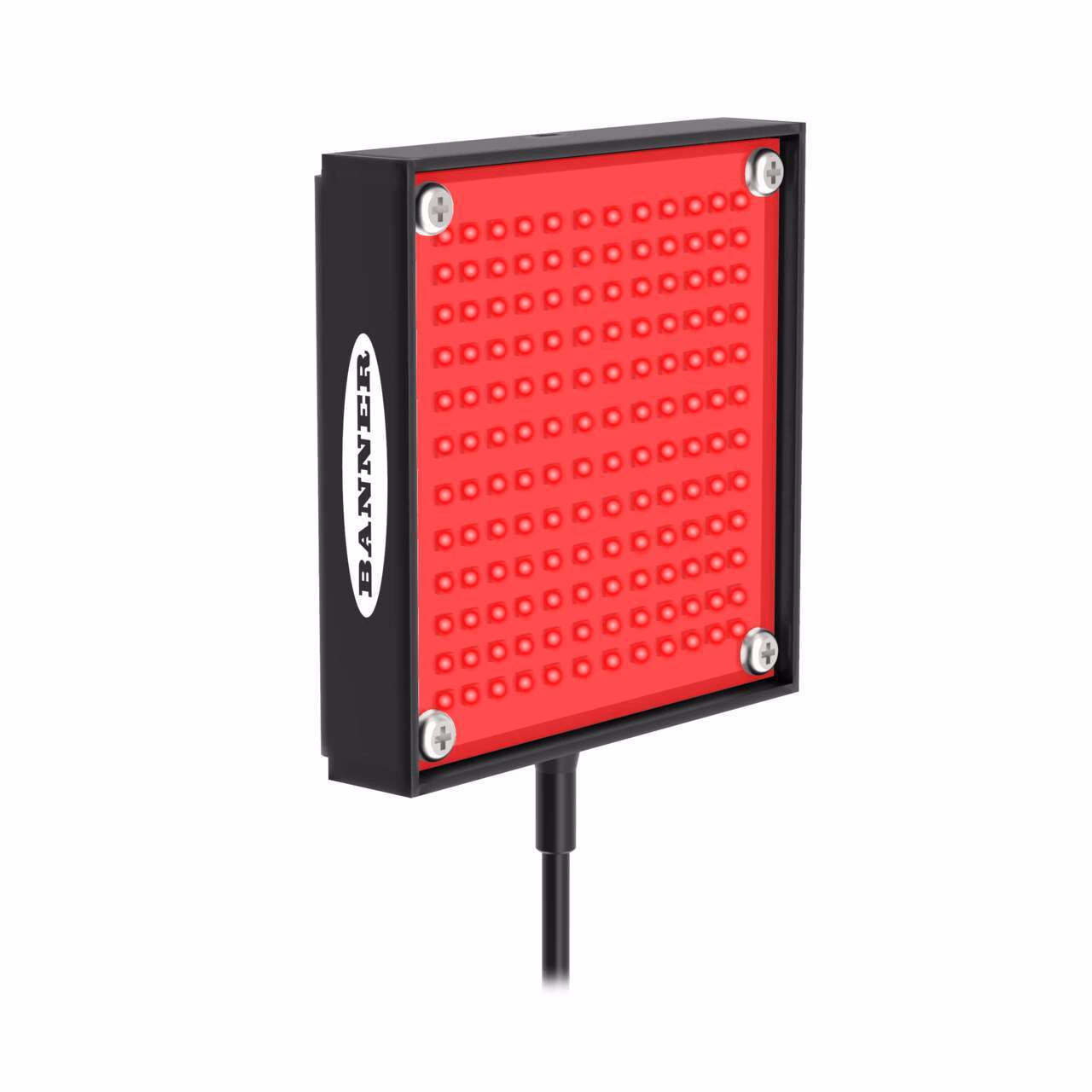

PresencePLUS 62 x 62 mm Area Light
Visible Red LED 24 V dc
2 m (6.5 ft) Cable with flying leads
| Color | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Flying Leads |
| Pin / Wire Count | 3 |
| QD Type/Cable Length | 2 m |
| Window Material | Acrylic |
| Device type | Area Light |
| Housing Style | Rectangular |
| Item Status | RELEASED |
| Number of Conductors | 3 |
| Physical Dimensions (LxWxH or DxH mm) | 66.7 x 66.7 x 14.6 |
| Power Good Output | DC |
| Receptacle housing material B | Low-Carbon Steel |
| High Temperature (up to 100 C) | 50 |
| Slot width (mm) | 2 |
| Max Current Color (mA) | 200 |
| Voltage supply connection | Cable |
Description
PresencePLUS 62 x 62 mm Area Light
Visible Red LED 24 V dc
2 m (6.5 ft) Cable with flying leads
