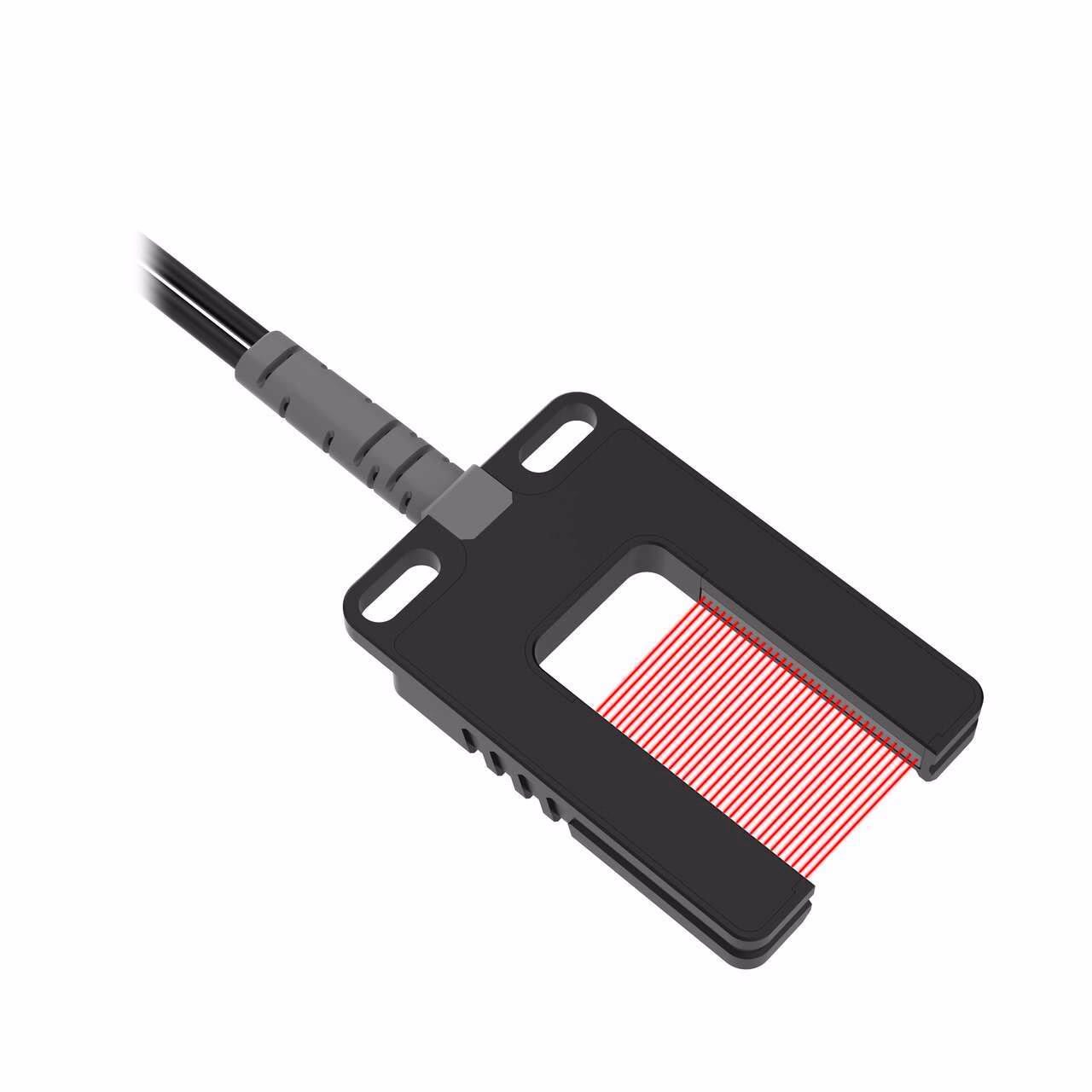

Array & Slot Fiber Optics – Banner – PDIRS1X326T5-20
Plastic Fiber, Opposed Mode 30 mm Array
Slot Width 20 mm, Core Diameter: 32 x 0.25 mm
Fiber Length 2 m, Terminated for Plastic Fiber Sensors
| Array Length (mm) | 30.0 |
|---|---|
| Beam Exit | Right Angle |
| Fiber Sensing End Size | 40.0 x 60.0 mm |
| Fiber Sensing End Size - Mounting Area | 40.0 x 60.0 mm |
| Fiber Sensing End Tip | Array |
| Max Distance: DF-G2 (mm) | No Data |
| Minimum Repeat Bending Endurance | 1000.0 |
| Sensing End Material (Specific) | Zinc Alloy |
| Sensing End Segment 1 | Slot |
| Sensing End Segment 2 | Array |
| Sensing Mode (General) | Opposed |
| Slot Width (mm) | 20.0 |
| Connection technology signal | Array |
| Core cross section mm? | 60.0 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Feature | Small Object Detection |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Flex Relief | No |
| Housing Style | Slot |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 128.0 |
| Max Temp (C) | 70.0 |
| Fiber Length (m) | 2.0 |
| Core Diameter (mm) | 32 x 0.3 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Plastic Fiber, Opposed Mode 30 mm Array
Slot Width 20 mm, Core Diameter: 32 x 0.25 mm
Fiber Length 2 m, Terminated for Plastic Fiber Sensors
