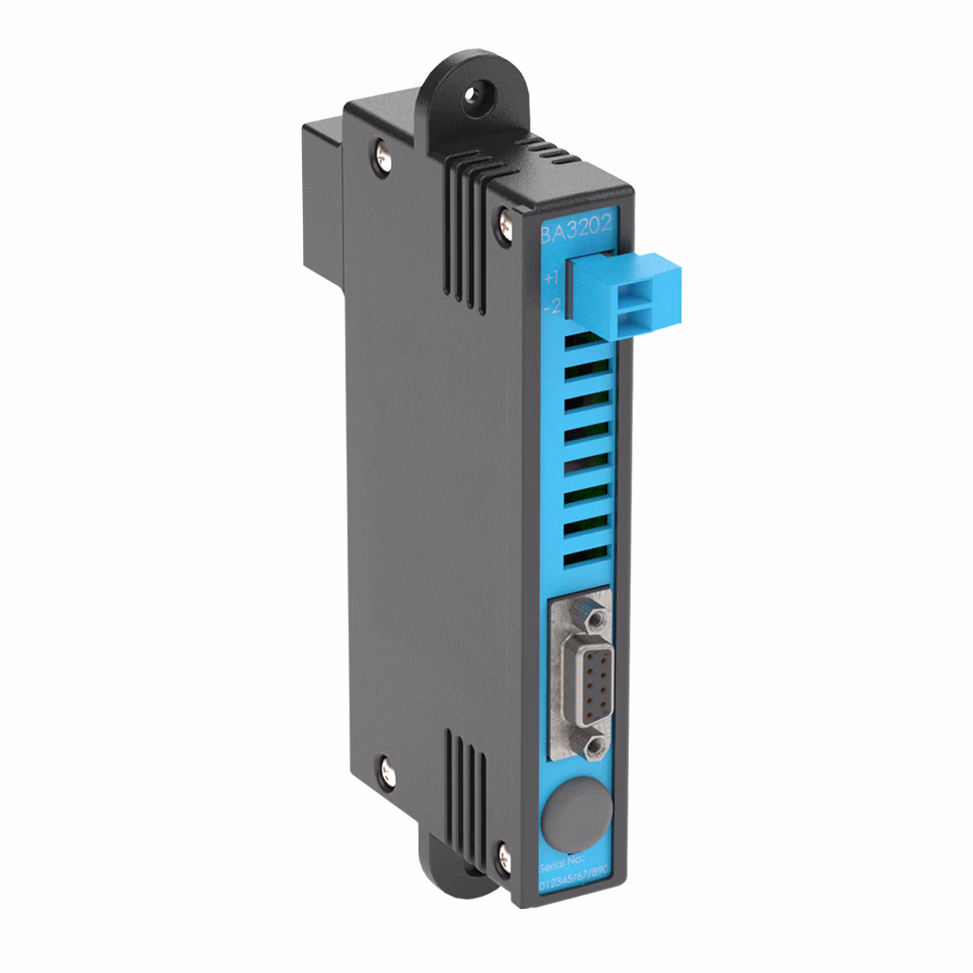

BA3202 Pageant CPU Module with Modbus RTU Communication – BA3202
Features:
Ex ia intrinsic safety certification
Certification allows module to be plugged into a Pageant BA3101 Ex ia intrinsically safe Operator Display.
Module contains:
Power connectionCentral ProcessorCODESYS® runtime software and application codeIEC 61131-3 compliant PLCVisualization engineModbus RTU
Isolated RS485-IS communication port
Programming port enables CODESYS application code to be downloaded in a safe area.
| Approvals | ATEX, IECEx, UKEX |
|---|---|
| Protection class | IP20 |
| Brand | Beka |
| Mounting | Plug-in |
Product details
All Pageant BA3101 intrinsically safe Operator Displays require a plug-in CPU module which should be selected to provide the required external communications.
The BA3202 Pageant CPU module contains the BA3101 Operator Display’s central processing unit (CPU) and associated memory. CODESYS® runtime software is resident including an IEC61131-3 compliant PLC and visualization engine enabling screens designed in the CODESYS integrated development environment (IDE) to be displayed on the BA3101 Operator Display.
The isolated RS485-IS port may be directly connected to other equipment in the hazardous area, or to safe area equipment via a proprietary RS485-IS isolator. Communication with other equipment uses Modbus protocol and allows the Pageant BA3101 Operator Display to function as a Modbus master or as a slave.

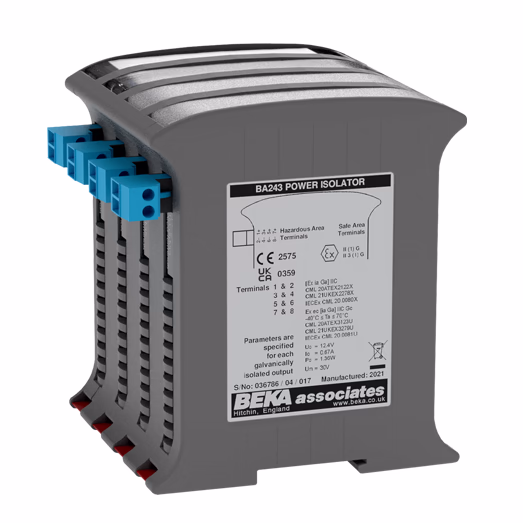

A two part connector provides power from the BEKA power isolator.
