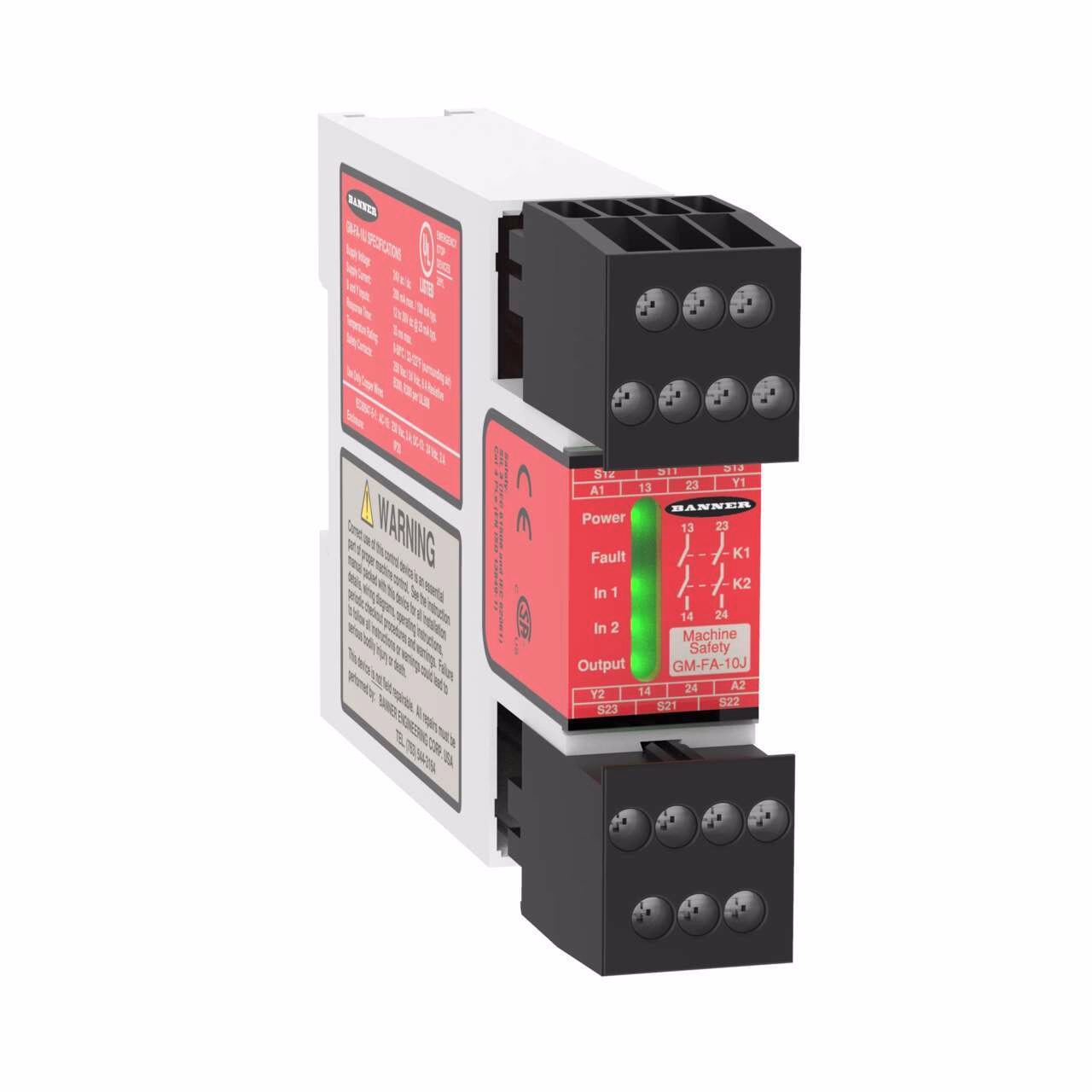

ES and GM Series E-Stop and Guard Monitoring Safety Relays – Banner – GM-FA-10J
Safety Relay Module for Interlocks
Supply Voltage: 24 V ac/dc
Safety Input: Interlocks with complementary contacts
Safety Output: 2 NO, 6 A; Aux Output: None
Terminal Block: Removable; Width: 22.5 mm
Self-Checking Circuitry, Auto/Manual Reset
| Dimension (H x W x D in mm) | 84 x 22.5 x 118 |
|---|---|
| E-Stops/Rope Pulls | Yes |
| Electrical Life (Cycles @ VA) | 1,000,000 @ 250 VA |
| Expandable | No |
| Gate Switch (NC/NC) Input | No |
| Gate Switch (NC/NO) Input | Yes |
| Gate Switch (OSSD) Input | No |
| In-Series Diagnostics | No |
| Independently Controlled Safe Outputs | 1 |
| Input Configuration | 1 complementary or 2 x complementary (contact) |
| Input Operation | Simultaneous within 3.0 s |
| Input Resistance | 270 Ω max. per channel |
| LCD Display | No |
| Light Curtains/Scanner without EDM Input | No |
| Max Operating Temperature (C) | 50 |
| Mechanical Life (operations in millions) | 50 |
| Motor Speed | No |
| Muting | No |
| Number of Safe Inputs | 2 |
| Output Configuration | 2 NO |
| PCCC | No |
| Power Consumption | 3 W / 3 VA |
| Recovery Time (ms) | 250 |
| Relative Humidity | 90% @ 50° C |
| Removable Terminals | Yes |
| Response Time (ms) | 35 (max.) |
| SISTEMA | PFHd = 1.54 x 10-9 |
| Safe Output Rating | Relay – 6 A |
| Safety Input - Reset | 20 mA @ 12 V dc (dry contact only) |
| Safety Mat | No |
| Safety Module Type | Gate Monitoring Module |
| Splittable Safe Output | No |
| Terminal Type | Screw |
| Category acc. to ISO 13849-1:2008 | 4 |
| Device type | Safety Relay |
| EPLAN Original Sent Date | 08/15/2022 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Functional safety (SIL/PL) | 3 |
| Item Status | RELEASED |
| Network protocol | No |
| Operating voltage | 24 V ac/dc |
| PL Rating | e |
| Power Good Output | AC/DC Universal |
| PROFINET | No |
| Protection class shaft | IP20 |
| Recovery Time | 250 |
| Vibration | 10-55 Hz at 0.35 mm |
Description
Safety Relay Module for Interlocks
Supply Voltage: 24 V ac/dc
Safety Input: Interlocks with complementary contacts
Safety Output: 2 NO, 6 A; Aux Output: None
Terminal Block: Removable; Width: 22.5 mm
Self-Checking Circuitry, Auto/Manual Reset
