Performance Series Industrial Wireless Gateways and Nodes – Banner – DX80G9M6S-PB2

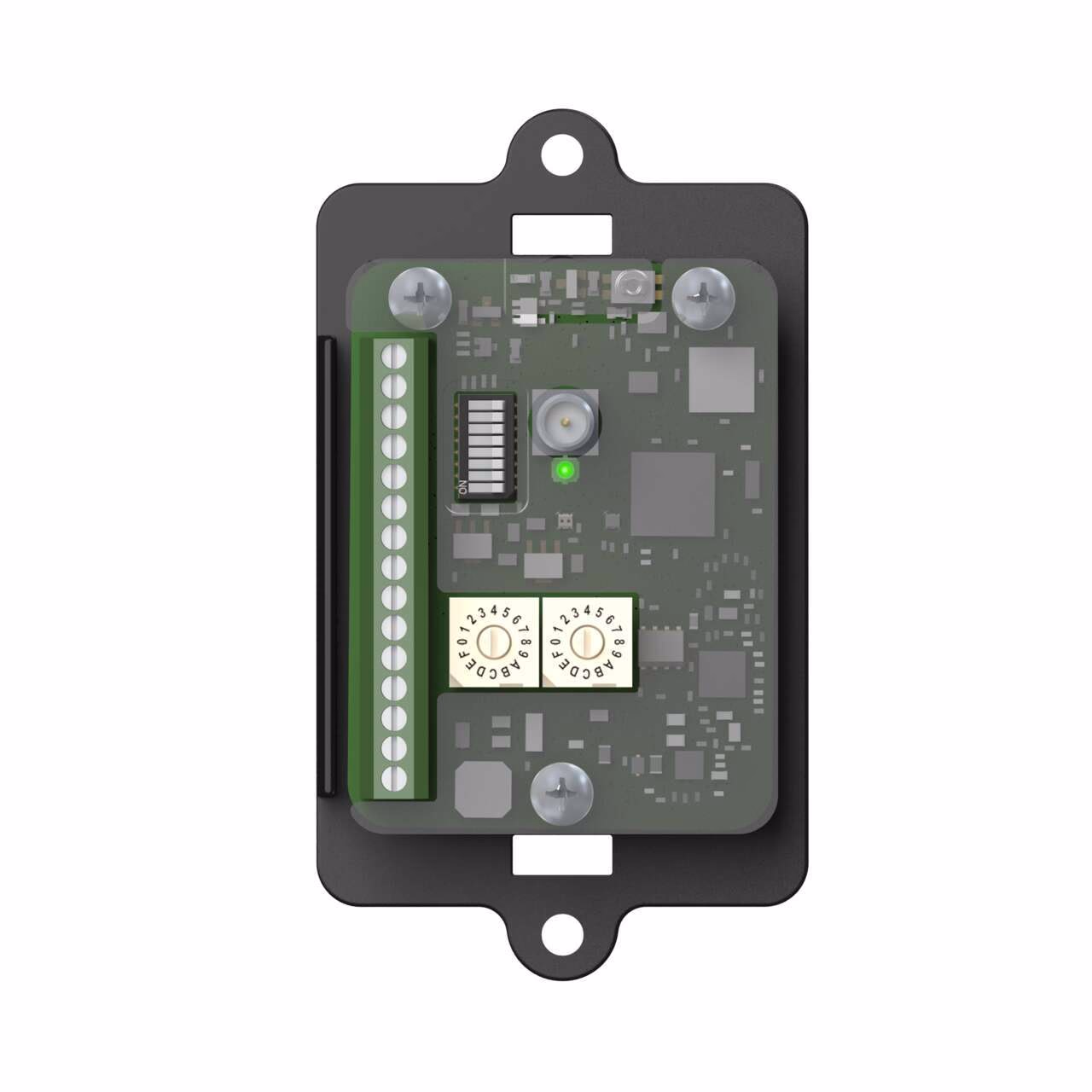

DX80 Perf 900 mHz Gateway Board
10-30 V dc Ext Antenna
In: 2 Disc 2 Anlg
Out: 2 Disc 2 Anlg
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | Yes |
| Analog Outputs | Yes |
| Discrete Inputs | Yes |
| Discrete Outputs | Yes |
| LCD Display | No |
| Max Operating Temperature (C) | 85 |
| Max Temp Operating Conditions (C) | 85 |
| Min Operating Temperature (C) | -40 |
| Min Temp Operating Conditions (C) | -40 |
| Output Details | 2 Sourcing Discrete, 2 0-20 mA analog |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Ships With Battery | No |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | 2 Sourcing Discrete, 2 0-20 mA Analog |
| Device type | Gateway |
| EtherNet/IP | No |
| Feature | Hazardous Area |
| Housing Style | Board Level |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
Description
DX80 Perf 900 mHz Gateway Board
10-30 V dc Ext Antenna
In: 2 Disc 2 Anlg
Out: 2 Disc 2 Anlg
