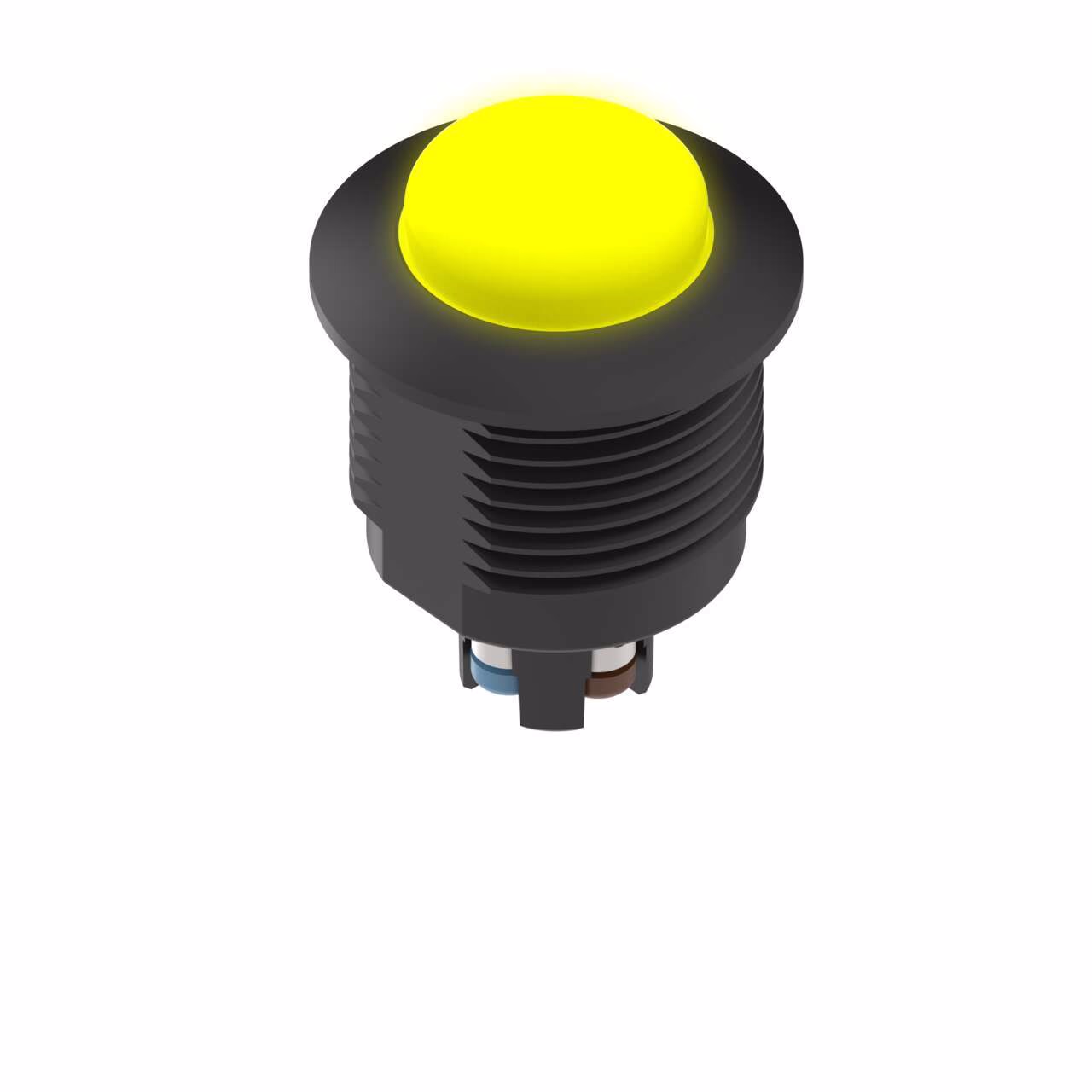

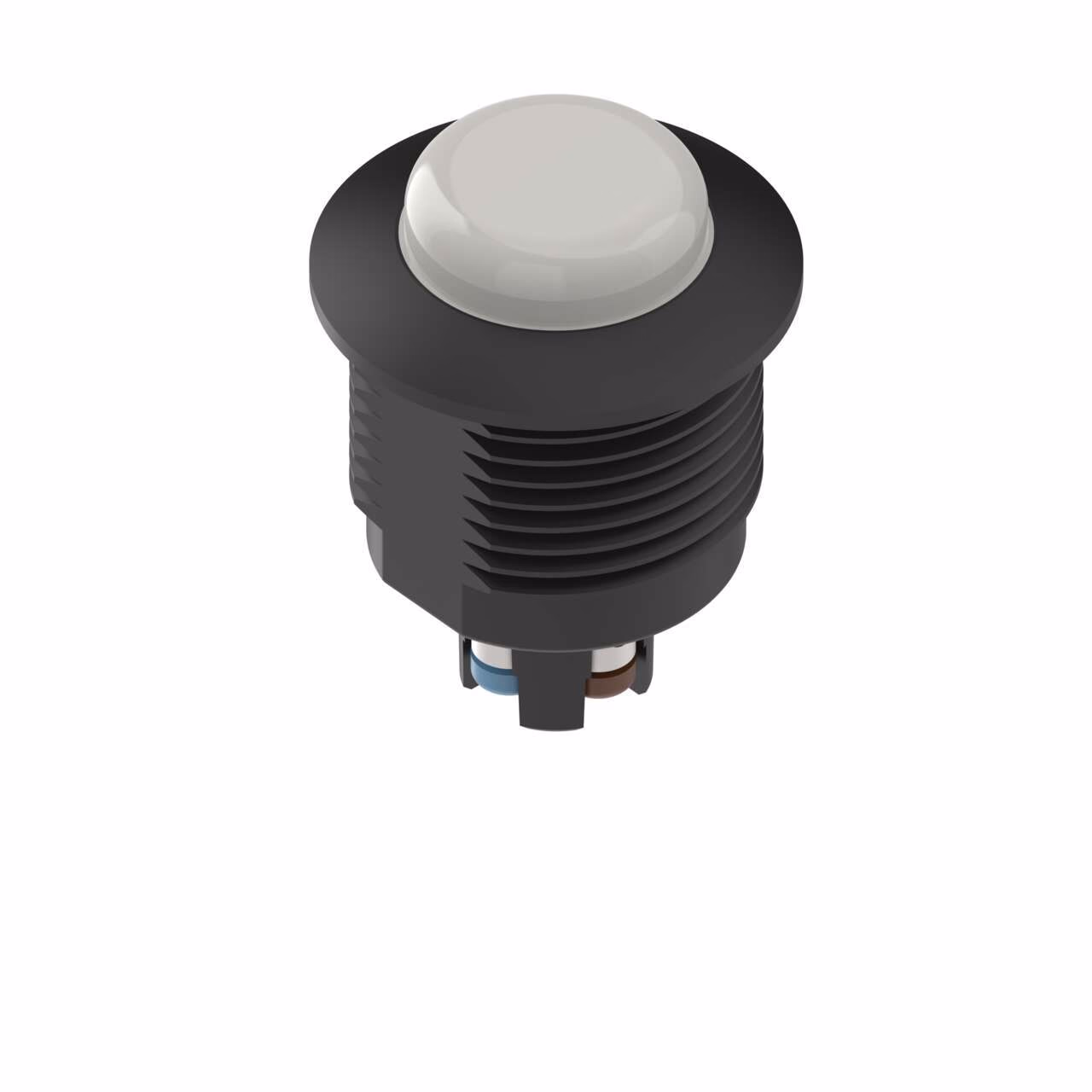

S22 Core Series 22 mm Panel Mount Indicator – Banner – S22LYXXPT
S22 EZ Light – 22 mm – IP67
Single Color: Yellow
10-30 V dc PNP Input

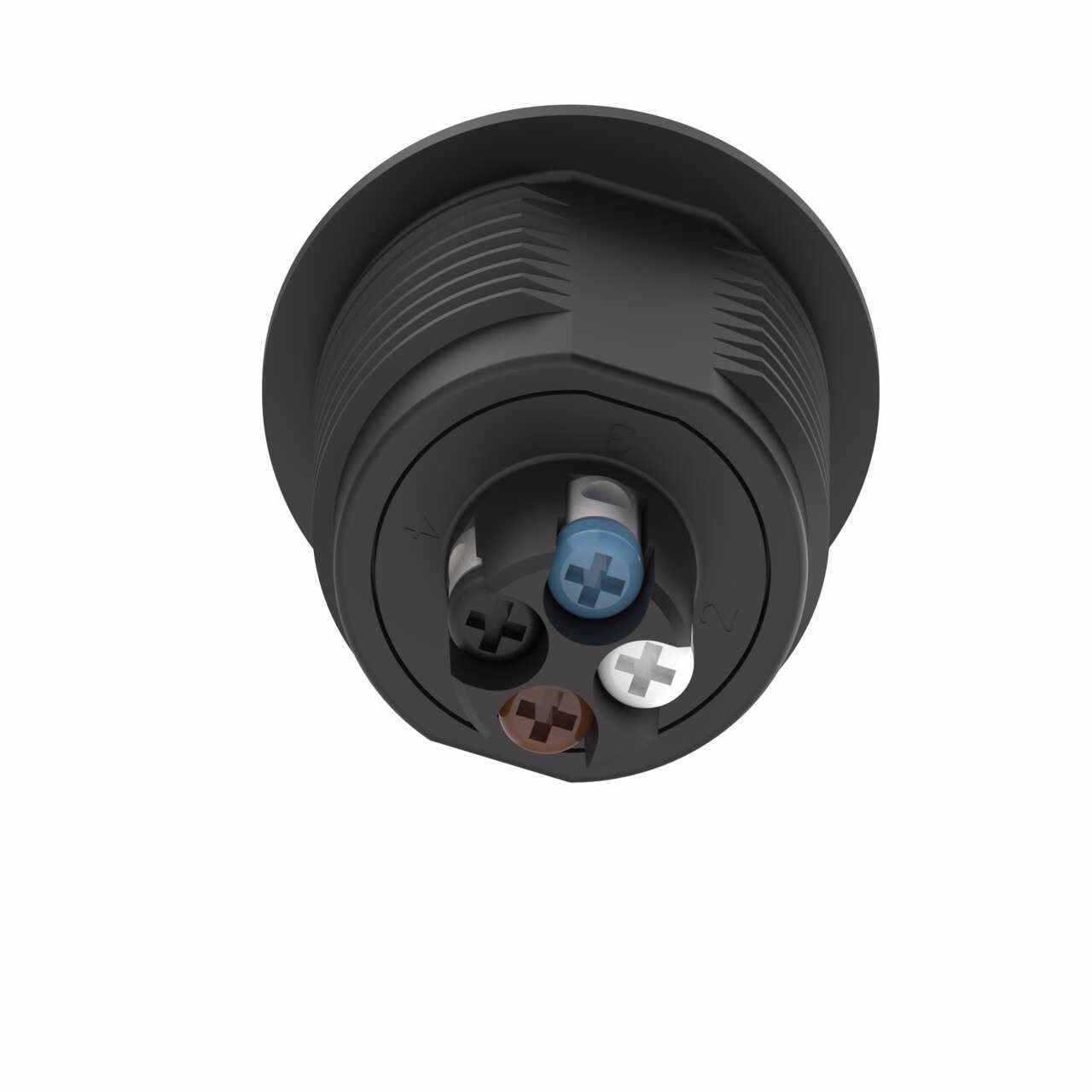

4-screw Terminal Wiring
| Color Technology | Standard LED |
|---|---|
| Connection | Terminal |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Yellow |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Feature | Washdown Rated |
| Housing Style | Barrel Mount – Flat Window |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 0.8 |
| Mounting | M22 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 10-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 26.0 x 34.2 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 22 |
| Max Current Color (mA) | 25.0 |
| Max Input Response Time (ms) | 1.0 |
Description
S22 EZ Light – 22 mm – IP67
Single Color: Yellow
10-30 V dc PNP Input
4-screw Terminal Wiring
