Profibus PA Intrinsically Safe Field Indicator for 8 Variables

Type   BA444DF-P

Intrinsically Safe ATEX, FM, INMETRO, IECEx

Large 5 Digit Display with Bargraph

Displays up to 8 Variables

Selectable Node or Listener Mode

IP66 Field Mounting GRP Enclosure

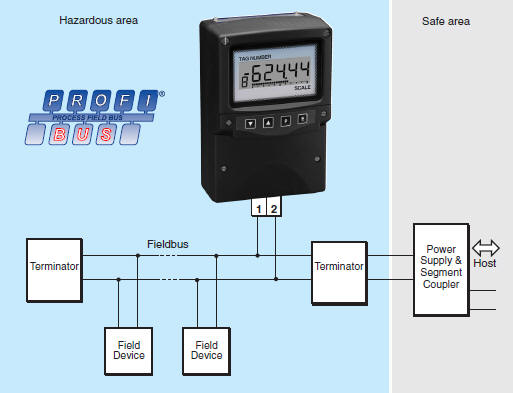

The BA444DF-P PROFIBUS Indicator is an intrinsically safe instrument that can display up to eight fieldbus process variables within a hazardous area. A numeric annunciator on the left hand side of the screen shows which variable is being displayed. This version of the indicator supports PROFIBUS PA protocol; for FOUNDATIONô fieldbus systems an alternative version is available - please see BA444DF-F FOUNDATIONô fieldbus datasheet.

Configuration as a fieldbus Node or Listener using the indicatorís front panel push buttons allows the instrument to be tailored to suit local requirements. When configured as a Listener the BA444DF-P is not visible to the fieldbus host; may not be subject to a Node Licence Fee and is configured and controlled via the instrumentís front panel push buttons.

As a fieldbus Node, the indicator is configured by the fieldbus host and the displayed variable is selected from the eight pre-configured fieldbus variables using the indicatorís front panel up and down buttons.

Powered by the fieldbus the BA444DF-P only requires a 2-wire connection to the fieldbus segment, no additional power supply is required. Compatibility with most PROFIBUS hosts is assured by the use of eight Analogue Output and six Digital Input function blocks.

The liquid crystal display has large 20mm high digits providing maximum contrast and a wide viewing angle, allowing the BA444DF-P PROFIBUS indicator to be read easily in most lighting conditions. The five digits, with four decimal points and a negative sign, may be configured to display any variable between -99999 and 99999. The 31 segment bargraph, which provides a bold analogue indication of the fieldbus variable may be conditioned to any starting or finishing values within the fieldbus variableís range.

The enclosure which is moulded in glass reinforced Polyester (GRP) has stainless steel fittings, silicone gaskets and an armoured glass window. Its robust construction provides IP66 protection which has been independently assessed by Intertek Testing Services. A separate terminal compartment allows the instrument to be installed and terminated without exposing the indicator electronics. To

further simplify wiring and subsequent inspection, the terminal cable entries and clamping screws are forward facing. The indicator may also be mounted onto a vertical or horizontal pipe using one of the accessory kits.

ATEX intrinsic safety certification allows the BA444DF-P to be installed in all gas hazardous areas. The two fieldbus terminals comply with the Fieldbus Intrinsic Safety Concept FISCO simplifying system design and documentation. Separate Ex ia and Ex ic entity input safety parameters also allow connection to most non-FISCO intrinsically safe systems. A BA444DF-P may therefore be connected to almost any intrinsically safe fieldbus segment that can supply an additional 13mA to power the instrument.

FM, cFM and IECEx approvals allow installation in the USA, Canada plus the many countries accepting international IECEx certificates. All approvals incorporate FISCO certification. Details of the versions available are shown in the How to Order section on the reverse of this datasheet.

Operator acknowledgements may be returned to the fieldbus host when the BA444DF-P is configured as a fieldbus Node. Six digital Input function blocks in the indicator which are supported by most PROFIBUS hosts enable the status of the four front panel push buttons to be read.

A Comprehensive PROFIBUS interface guide contains commissioning information for the BA444DF-P. Copies may be requested from the BEKA sales office or downloaded from www.beka.co.uk

Units of measurement and the instrumentís application or tag number can be economically marked onto the display escutcheon prior to despatch or after installation on-site. Alternatively, for customers who prefer a stainless steel label, the indicator can be supplied with a removable blank or custom etched stainless steel plate mounted on the front of the enclosure.

For panel mounting applications see the BA448CF-P PROFIBUS datasheet. This instrument has a similar electrical specification but is housed in a 144 x 72 panel mounting enclosure.

Display
Type Liquid crystal, 5 digit plus sign, 20mm high, (-99999 to 99999). 31 segment bargraph

Variables
8

Controls
Front panel Four push buttons for selecting displayed variable and configuration. May be used for returning operator acknowledgements when configured as a fieldbus node.

Fieldbus communication
Voltage 9 to 32V (Limited by intrinsic safety input safety parameters), Current 13mA, Compliant with IEC61158-2 31.25kbits/s Voltage Mode

Protocol
PROFIBUS PA , Profibus User Approval certificate Z01505 Organisation.

Function
Fieldbus Node or Listener selected via front panel push buttons.

Function blocks
Profibus-PA node: 8 x AO; 6 x DI
Listener: Captures data in DS-33 format

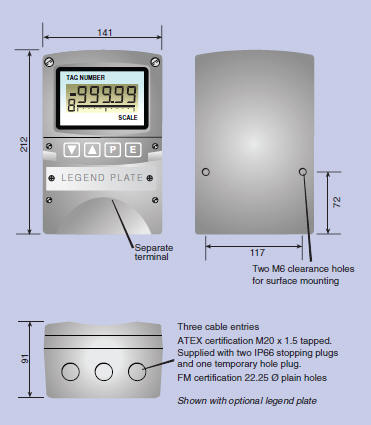

Dimensions Drawing

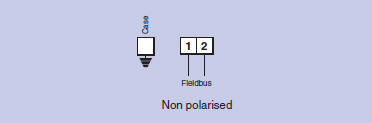

Wiring Diagram
