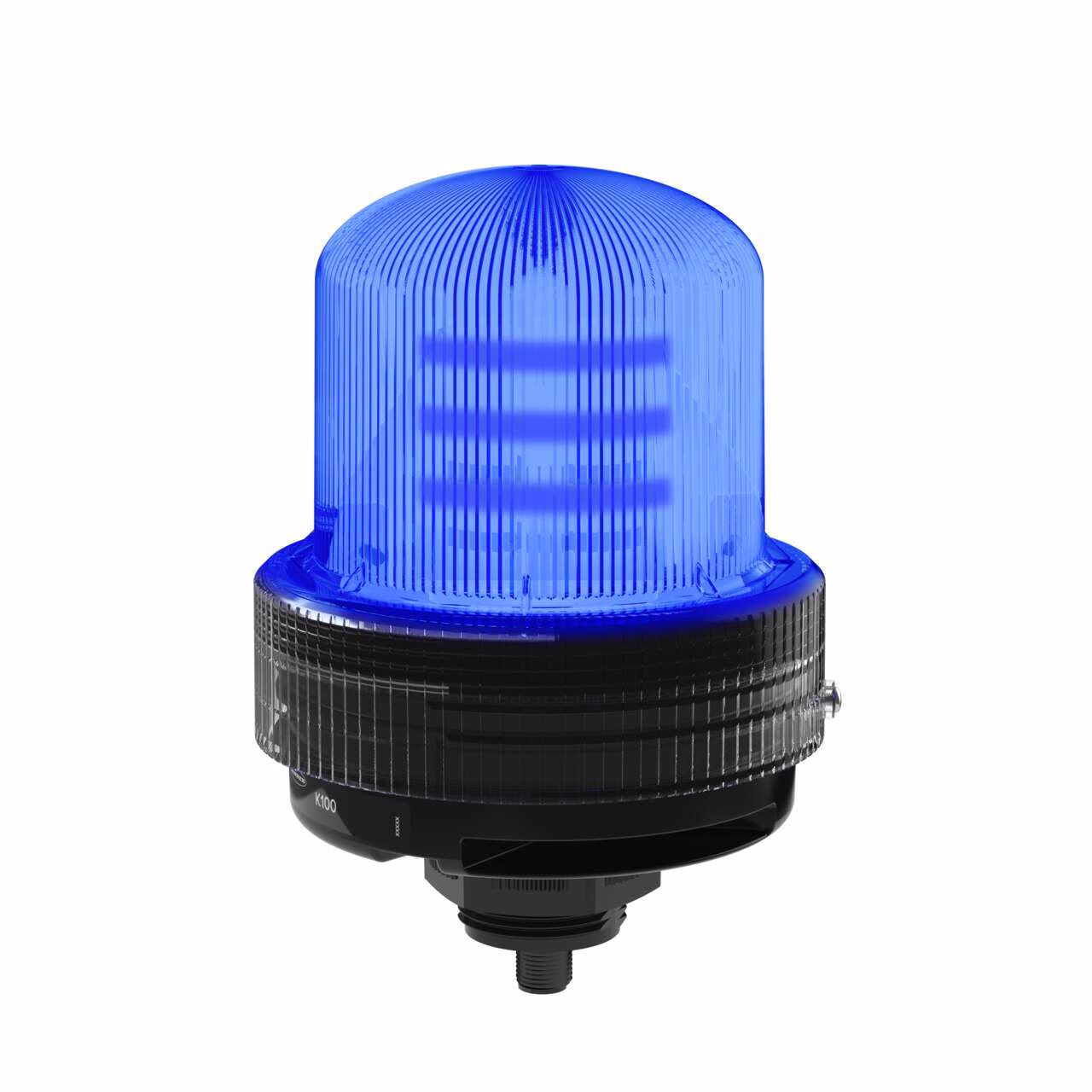

K100 Basic Beacon Series – Banner – K100B-BLZBAQ
K100 Basic Daylight Visible Beacon: 1-Color Indicator
100-240 V ac; Polycarbonate; IP66
Blue; Audible
5-pin Micro Integral QD
| Audible Alarm Type | Multitone |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | Yes |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Wire Selectable Function | Multi-Function |
| Color 1 - Wavelength/Color Temp/Coordinates | 475 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Blue |
| EPLAN Original Sent Date | 07/10/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Dome Window |
| Indication | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 165.0 |
| Max Audible Intensity (dB at 1m) | 101.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Min Audible Intensity (dB at 1m) | 93.0 |
| Mounting | M36 x 2.0 |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating voltage | 100-240 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| Port | M12 |
| Power Good Output | AC |
| Protection class shaft | IP66 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 1.2 |
| Switching frequency (kHz) | 2.5 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X |
| High Temperature (up to 100 C) | 60.0 |
| Product Size (mm) | 100 |
| Max Current Color (mA) | 140.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 300.0 |
| Max Current - Audible Alarm (mA) | 20.0 |
Description
K100 Basic Daylight Visible Beacon: 1-Color Indicator
100-240 V ac; Polycarbonate; IP66
Blue; Audible
5-pin Micro Integral QD
