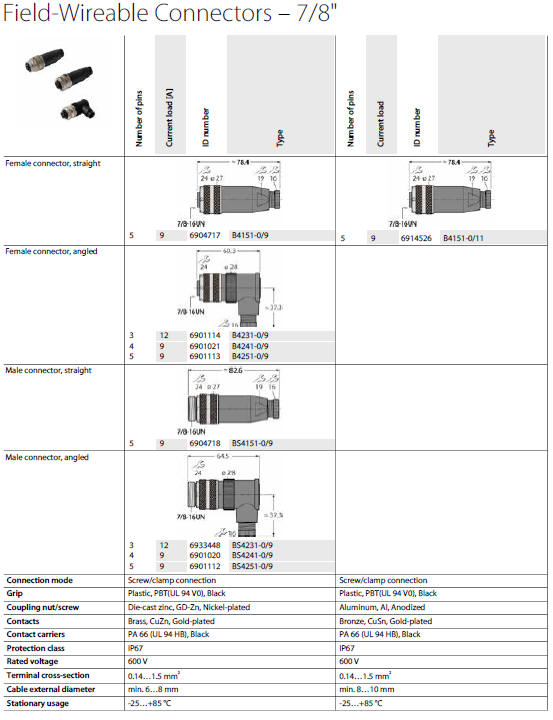

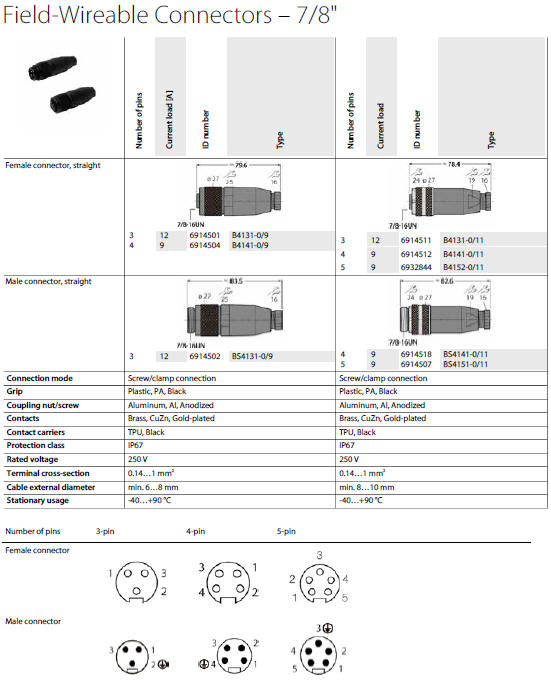

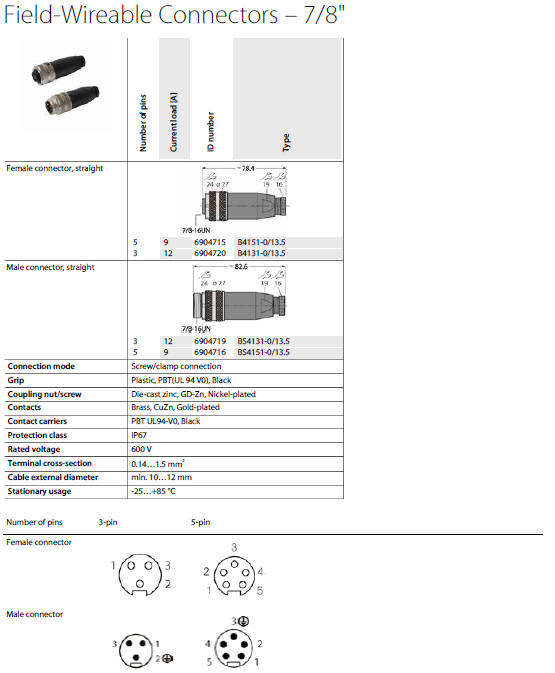

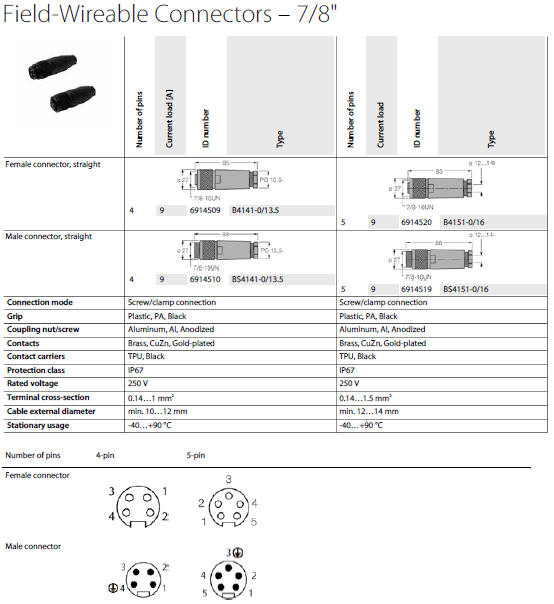

7/8" Field-Wireable Connectors





These Connectors can be wired in the field to connect to 7/8" male and female connections. The types listed in the table below all have screw-clamp connectors.


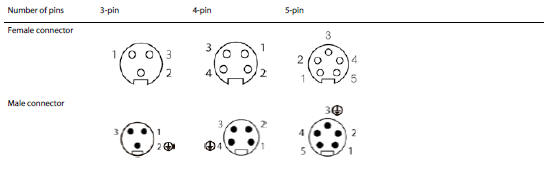

Type Ident No Gender No of pins Cable Ext. Dia Terminal Capacity Design
B4131-0/9 6914501 Female 3 6.0...8.0 mm 0.14...1.0 mm˛ Straight
B4131-0/11 6914511 Female 3 8.0...10.0 mm 0.14...1.0 mm˛ Straight
B4131-0/13.5 6904720 Female 3 10.0...12.0 mm 0.14...1.5 mm˛ Straight
B4231-0/9 6901114 Female 3 6.0...8.0 mm 0.14...1.5 mm˛ Angled
BS4131-0/9 6914502 Male 3 6.0...8.0 mm 0.14...1.0 mm˛ Straight
BS4131-0/13.5 6904719 Male 3 10.0...12.0 mm 0.14...1.5 mm˛ Straight
BS4231-0/9 6933448 Male 3 6.0...8.0 mm 0.14...1.5 mm˛ Straight
B4141-0/9 6914504 Female 4 6.0...8.0 mm 0.14...1.0 mm˛ Straight
B4141-0/11 6914512 Female 4 8.0...10.0 mm 0.14...1.0 mm˛ Straight
B4141-0/13.5 6914509 Female 4 10.0...12.0 mm 0.14...1.0 mm˛ Straight
B4241-0/9 6901021 Female 4 6.0...8.0 mm 0.14...1.5 mm˛ Angled
BS4141-0/13.5 6914510 Male 4 10.0...12.0 mm 0.14...1.0 mm˛ Straight
BS4241-0/9 6901020 Male 4 6.0...8.0 mm 0.14...1.5 mm˛ Straight
B4152-0/11 6932844 Female 5 8.0...10.0 mm 0.14...1.0 mm˛ Straight
B4151-0/13.5 6904715 Female 5 10.0...12.0 mm 0.14...1.5 mm˛ Straight
B4151-0/9 6904717 Female 5 6.0...8.0 mm 0.14...1.5 mm˛ Straight
B4151-0/11 6914526 Female 5 8.0...10.0 mm 0.14...1.5 mm˛ Straight
B4151-0/16 6914520 Female 5 12.0...14.0 mm 0.14...1.5 mm˛ Straight
B4251-0/9 6901113 Female 5 6.0...8.0 mm 0.14...1.5 mm˛ Angled
BS4151-0/11 6914507 Male 5 8.0...10.0 mm 0.14...1.0 mm˛ Straight
BS4151-0/9 6904718 Male 5 6.0...8.0 mm 0.14...1.5 mm˛ Straight
BS4151-0/11 6914507 Male 5 8.0...10.0 mm 0.14...1.0 mm˛ Straight
BS4151-0/13.5 6904716 Male 5 10.0...12.0 mm 0.14...1.5 mm˛ Straight
BS4151-0/16 6914519 Male 5 12.0...14.0 mm 0.14...1.5 mm˛ Straight
BS4251-0/9 6901112 Male 5 6.0...8.0 mm 0.14...1.5 mm˛ Straight
