M12 Field-Wireable Connectors

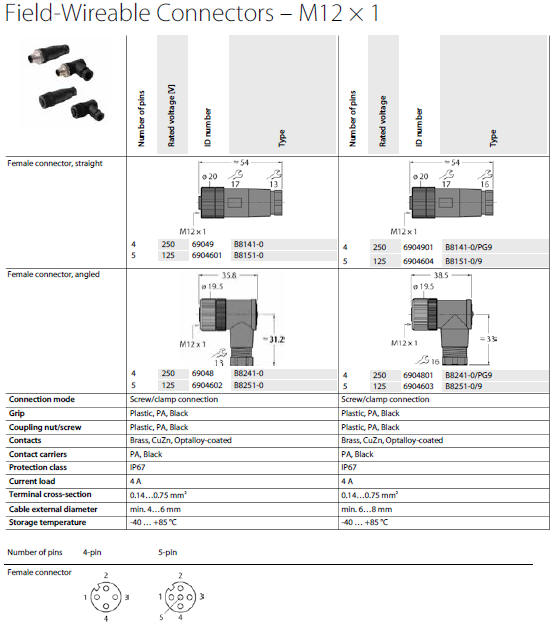

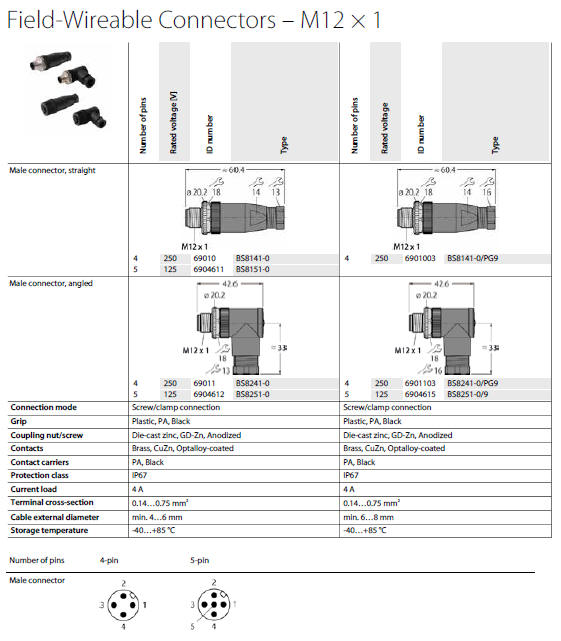

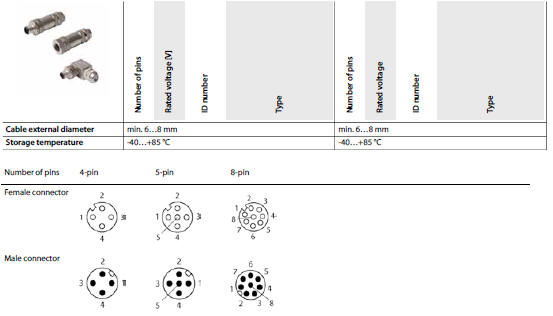

These Connectors can be wired in the field to connect to M12 male and female connections. The types listed in the first table below are all screw-clamp connectors.

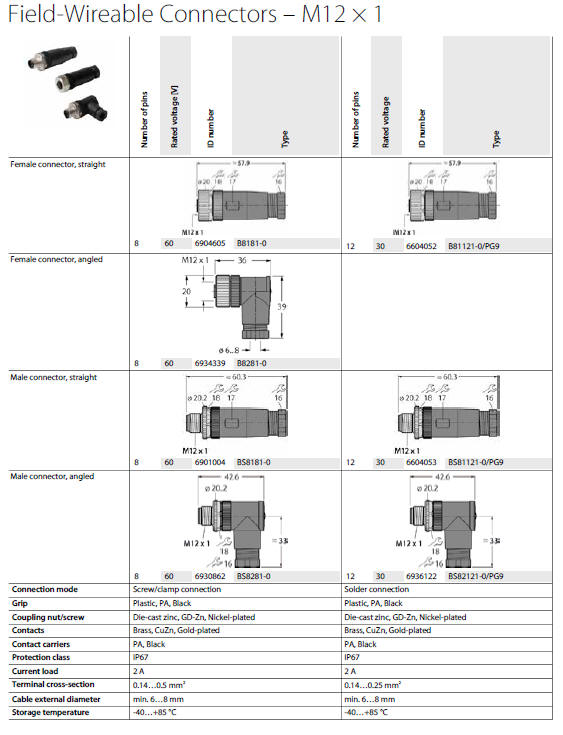

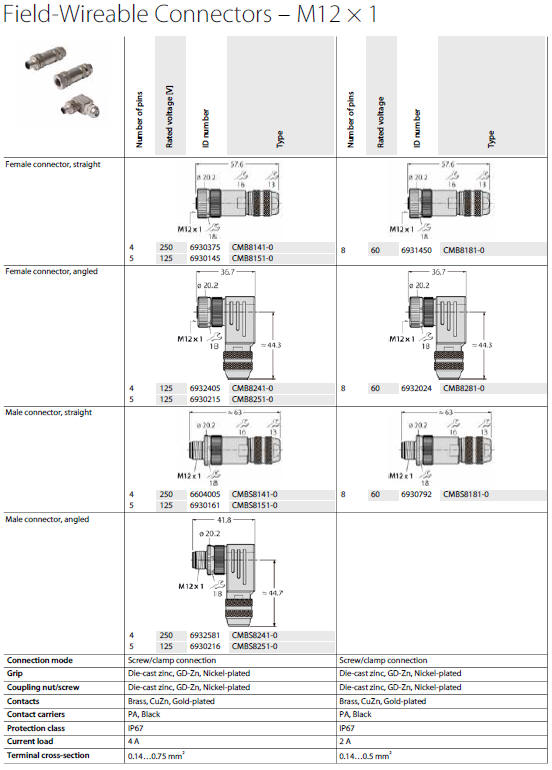

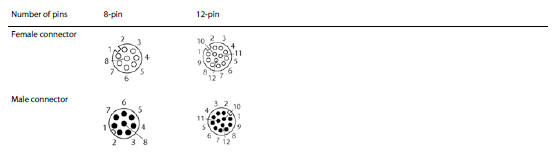

Other types shown further below offer choices of insulation displacement, solder connection or the wire penetration technology.


Type Ident No Gender No of pins Cable Ext. Dia Terminal Capacity Design
BS8141-0 69010 Male 4 4.0...6.0 mm 0.14...0.75 mm˛ Straight
BS8141-0/PG9 6901003 Male 4 6.0...8.0 mm 0.14...0.75 mm˛ Straight
BS8241-0 69011 Male 4 4.0...6.0 mm 0.14...0.75 mm˛ Angled
B8141-0 69049 Female 4 4.0...6.0 mm 0.14...0.75 mm˛ Straight
B8141-0/PG9 6904901 Female 4 6.0...8.0 mm 0.14...0.75 mm˛ Straight
B8241-0 69048 Female 4 4.0...6.0 mm 0.14...0.75 mm˛ Angled
BS8151-0 6904611 Male 5 4.0...6.0 mm 0.14...0.75 mm˛ Straight
BS8151-0/9 6904613 Male 5 6.0...8.0 mm 0.14...0.75 mm˛ Straight
BS8251-0/9 6904615 Male 5 6.0...8.0 mm 0.14...0.75 mm˛ Angled
B8251-0/9 6904603 Female 5 6.0...8.0 mm 0.14...0.75 mm˛ Angled
B8151-0/9 6904604 Female 5 4.0...6.0 mm 0.14...0.75 mm˛ Straight
B8151-0 6904601 Female 5 4.0...6.0 mm 0.14...0.75 mm˛ Straight
