Ethernet Cordsets
and Extension Cordsets



Sensors usually have the choice of an attached cable or a plug in cordset, which needs to be ordered separately. A cordset may require a simple extension. The following is a list of standard Extension Cordsets. When selecting, ensure that the correct size, gender, number of pins, straight or right-angled connector and cable length and cable outer jacket material is used.

Custom lengths and cable materials are available on special order.

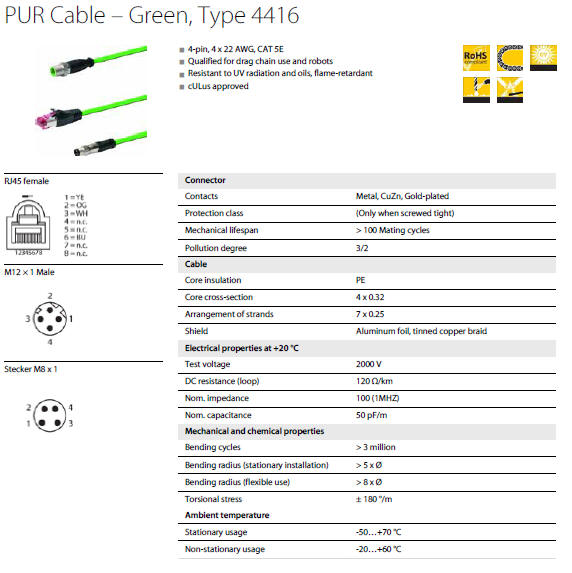

The meaning of the Type Code is shown below the selection chart and the standard cable details are further down the page.
Type Ident No Type No of Pins Cable Length PNO Conform Shield on Nut Design Jacket
RSSD-4416-2M 6935289 M12 4 2 YES YES Straight PUR
RSSD-4416-5M 6935290 M12 4 5 YES YES Straight PUR
RSSD-4416-10M 6935291 M12 4 10 YES YES Straight PUR
RSSD-RSSD-4416-0.5M 6441648 M12/M12 4 0.5 YES YES Straight/Straight PUR
RSSD-RSSD-4416-1M 6441650 M12/M12 4 1 YES YES Straight/Straight PUR
RSSD-RSSD-4416-2M 6441652 M12/M12 4 2 YES YES Straight/Straight PUR
RSSD-RSSD-4416-5M 6441655 M12/M12 4 5 YES YES Straight/Straight PUR
RSSD-RSSD-4416-10M 6441659 M12/M12 4 10 YES YES Straight/Straight PUR
RSSD-RSSD-4416-15M 6441661 M12/M12 4 15 YES YES Straight/Straight PUR
RSSD-RJ45S-4416-2M 6441631 M12/RJ45 4 2 YES YES Straight/Straight PUR
RSSD-RJ45S-4416-5M 6441633 M12/RJ45 4 5 YES YES Straight/Straight PUR
RSSD-RJ45S-4416-10M 6441637 M12/RJ45 4 10 YES YES Straight/Straight PUR
RJ45S-RJ45S-4416-0.5M 6441610 RJ45/RJ45 4 0.5 YES YES Straight/Straight PUR
RJ45S-RJ45S-4416-2M 6441613 RJ45/RJ45 4 2 YES YES Straight/Straight PUR
RJ45S-RJ45S-4416-5M 6441616 RJ45/RJ45 4 5 YES YES Straight/Straight PUR
RJ45S-RJ45S-4416-10M 6441619 RJ45/RJ45 4 10 YES YES Straight/Straight PUR
PSGS4M-RJ45S-4416-1M 6935342 M8/RJ45 4 0.5 YES YES Straight/Straight PUR
PSGS4M-RJ45S-4416-2M 6935343 M8/RJ45 4 2 YES YES Straight/Straight PUR
PSGS4M-RJ45S-4416-5M 6935344 M8/RJ45 4 5 YES YES Straight/Straight PUR
PSGS4M-PSGS4M-4416-0.5M 6934032 M8/M8 4 0.5 YES YES Straight/Straight PUR
PSGS4M-PSGS4M-4416-1M 6934033 M8/M8 4 1 YES YES Straight/Straight PUR
PSGS4M-PSGS4M-4416-2M 6934034 M8/M8 4 2 YES YES Straight/Straight PUR
PSGS4M-PSGS4M-4416-5M 6934035 M8/M8 4 5 YES YES Straight/Straight PUR
PSGS4M-PSGS4M-4416-10M 6934036 M8/M8 4 10 YES YES Straight/Straight PUR
RSSD-RSSD-4414-0.5M 6935273 M12/M12 4 0.5 – YES Straight/Straight PUR
RSSD-RSSD-4414-1M 6441404 M12/M12 4 1 – YES Straight/Straight PUR
RSSD-RSSD-4414-2M 6441405 M12/M12 4 2 – YES Straight/Straight PUR
RSSD-RSSD-4414-5M 6441406 M12/M12 4 5 – YES Straight/Straight PUR
RSSD-RJ45S-4414-2M 6441413 M12/RJ45 4 2 – YES Straight/Straight PUR
RSSD-RJ45S-4414-5M 6935267 M12/RJ45 4 5 – YES Straight/Straight PUR
RSSD-RJ45S-4414-10M 6441415 M12/RJ45 4 10 – YES Straight/Straight PUR
PSGS4M-RJ45S-4414-1M 6933004 M8/RJ45 4 1 – YES Straight/Straight PUR
PSGS4M-RJ45S-4414-2M 6933005 M8/RJ45 4 2 – YES Straight/Straight PUR
PSGS4M-RJ45S-4414-5M 6933768 M8/RJ45 4 5 – YES Straight/Straight PUR
PSGS4M-PSGS4M-4414-0.2M 6932991 M8/M8 4 0.2 – YES Straight/Straight PUR
PSGS4M-PSGS4M-4414-0.5M 6932992 M8/M8 4 0.5 – YES Straight/Straight PUR
PSGS4M-PSGS4M-4414-1M 6932993 M8/M8 4 1 – YES Straight/Straight PUR
PSGS4M-PSGS4M-4414-2M 6932994 M8/M8 4 2 – YES Straight/Straight PUR
PSGS4M-PSGS4M-4414-5M 6932996 M8/M8 4 5 – YES Straight/Straight PUR
PSG4M-0.2-PSG4M/TXN* 6630376 M8/M8 6630376 0.2 – – Straight/Straight PUR

* Jumper for TBEN-S (see manual)

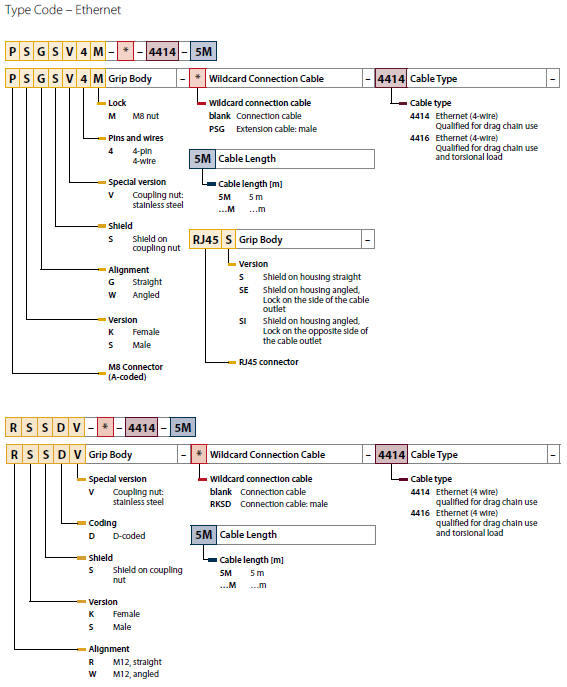

Meaning of Type Code
