M8 Field-Wireable Connectors

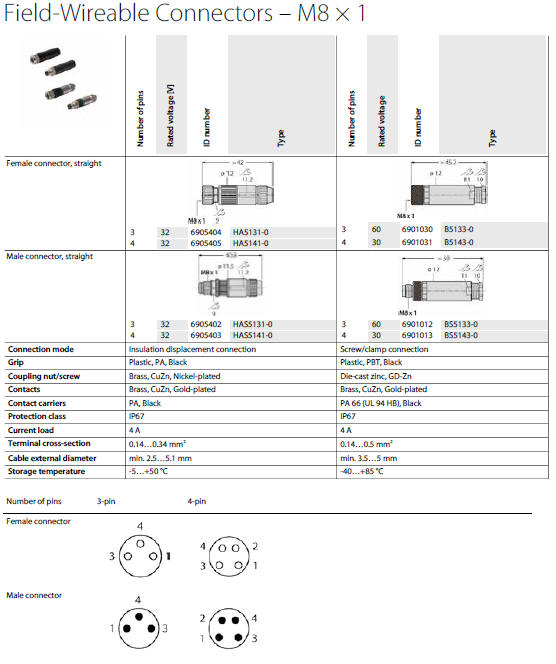

These Connectors can be wired in the field to connect to M8 male and female connections. The types listed in the first table below are all straight design and have screw-clamp connectors.

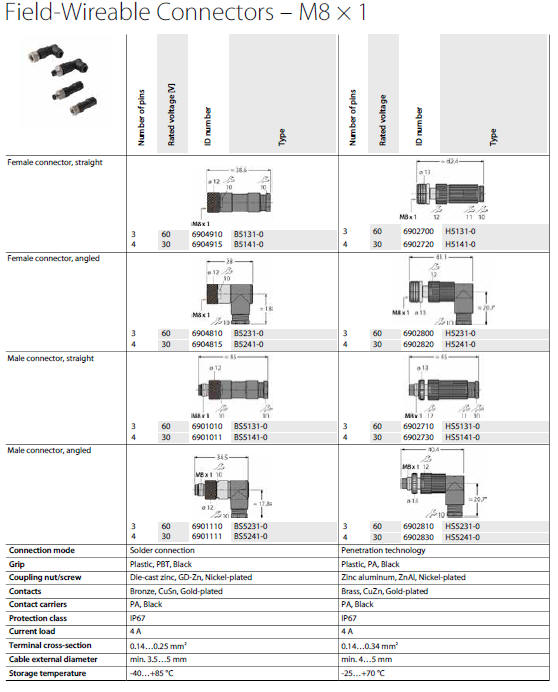

Other types shown further below offer angled bodies and choices of insulation displacement, solder connection or the wire penetration technology.


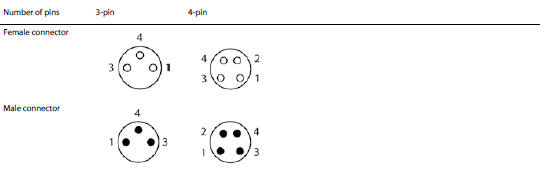

Type Ident No Gender No of pins Voltage Cable Ext. dia Terminal Capacity
B5133-0 6901030 Female 3 60 3.5…5 mm 0.14...0.5 mm˛
B5143-0 6901031 Female 4 30 3.5…5 mm 0.14...0.5 mm˛
BS5133-0 6901012 Male 3 60 3.5…5 mm 0.14...0.5 mm˛
BS5143-0 6901013 Male 4 30 3.5…5 mm 0.14...0.5 mm˛
