M8 Cordsets
M8 Extensions
M12 Cordsets
M12 Extensions
Ethernet Cordsets
Y Splitters
Plug In J/Bs
M8 FW Conn
M12 FW Conn
7/8" FW Conn
Ether FW Conn
Wiring Diag
Sensor Dimensions











M8 Cordsets

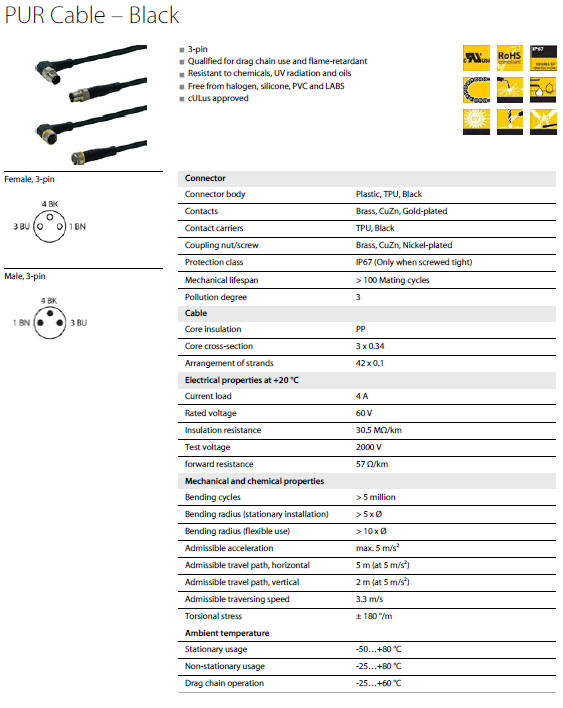

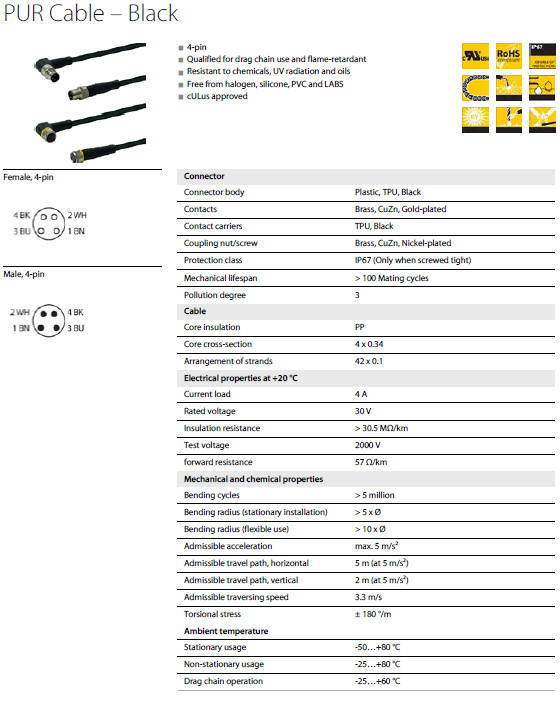

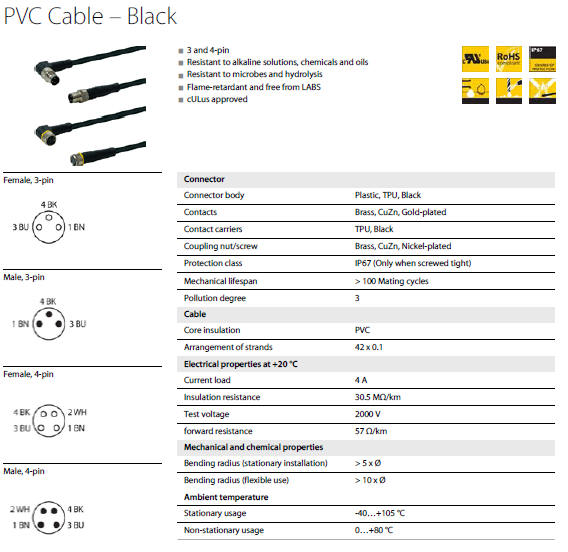

Sensors usually have the choice of an attached cable or a plug in cordset, which needs to be ordered separately. The following is a list of standard cordsets. When selecting, ensure that the correct size, gender, number of pins, straight or right-angled connector, cable length and cable outer jacket material is used.

Custom lengths and cable materials are available on special order.

The meaning of the Type Code is shown below the selection chart and the standard cable details are further down the page.

Type Ident No M/F No of Pins Cable Length LED Shield Design Jacket
PSG3M-2/TXL 6625562 Male 3 2 No No Straight PUR
PSG3M-5/TXL 6625563 Male 3 5 No No Straight PUR
PSG3M-10/TXL 6625564 Male 3 10 No No Straight PUR
PKG3M-2/TXL 6625550 Female 3 2 No No Straight PUR
PKG3M-5/TXL 6625551 Female 3 5 No No Straight PUR
PKG3M-10/TXL 6625552 Female 3 10 No No Straight PUR
PKG3M-2/TEL 6625058 Female 3 2 No No Straight PVC
PKG3M-5/TEL 6625059 Female 3 5 No No Straight PVC
PKG3M-10/TEL 6625060 Female 3 10 No No Straight PUR
PKW3M-2/TXL 6625556 Female 3 2 No No Angled PUR
PKW3M-5/TXL 6625557 Female 3 5 No No Angled PUR
PKW3M-10/TXL 6625558 Female 3 10 No No Angled PUR
PKW3M-2/TEL 6625064 Female 3 2 No No Angled PVC
PKW3M-5/TEL 6625065 Female 3 5 No No Angled PVC
PKW3M-10/TEL 6625066 Female 3 10 No No Angled PVC
PKW3M-P7X2-2/TXL 6626202 Female 3 2 Yes No Angled PUR
PKW3M-P7X2-5/TXL 6626206 Female 3 5 Yes No Angled PUR
PKW3M-P7X2-10/TXL 6626210 Female 3 10 Yes No Angled PUR
PSG4M-2/TXL 6625565 Male 4 2 No No Straight PUR
PSG4M-5/TXL 6625566 Male 4 5 No No Straight PUR
PSG4M-10/TXL 6625567 Male 4 10 No No Straight PUR
PKG4M-2/TXL 6625553 Female  4  2 No No Straight PUR
PKG4M-3/TXL 6627064 Female 4 3 No No Straight PUR
PKG4M-4/TXL 6627071 Female 4 4 No No Straight PUR
PKG4M-5/TXL 6625554 Female 4 5 No No Straight PUR
PKG4M-10/TXL 6625555 Female 4 10 No No Straight PUR
PKG4M-2/TEL 6625061 Female 4 2 No No Straight PVC
PKG4M-5/TEL 6625062 Female 4 5 No No Straight PVC
PKG4M-10/TEL 6625063 Female 4 10 No No Straight PVC
PKW4M-2/TXL 6625559 Female 4 2 No No Angled PUR
PKW4M-5/TXL 6625560 Female 4 5 No No Angled PUR
PKW4M-10/TXL 6625561 Female 4 10 No No Angled PUR
PKW4M-2/TEL 6625067 Female 4 2 No No Angled PVC
PKW4M-5/TEL 6625068 Female 4 5 No No Angled PVC
PKW4M-10/TEL 6625069 Female 4 10 No No Angled PVC
PKW4M-P7X2-2/TXL 6626108 Female 4 2 Yes No Angled PUR
PKW4M-P7X2-5/TXL 6626112 Female 4 5 Yes No Angled PUR
PKW4M-P7X2-10/TXL 6626187 Female 4 10 Yes No Angled PUR


Meaning of Type Code
