Ethernet Field-Wireable Connectors





These Connectors can be wired in the field to connect to connect industrial ethernet cables.

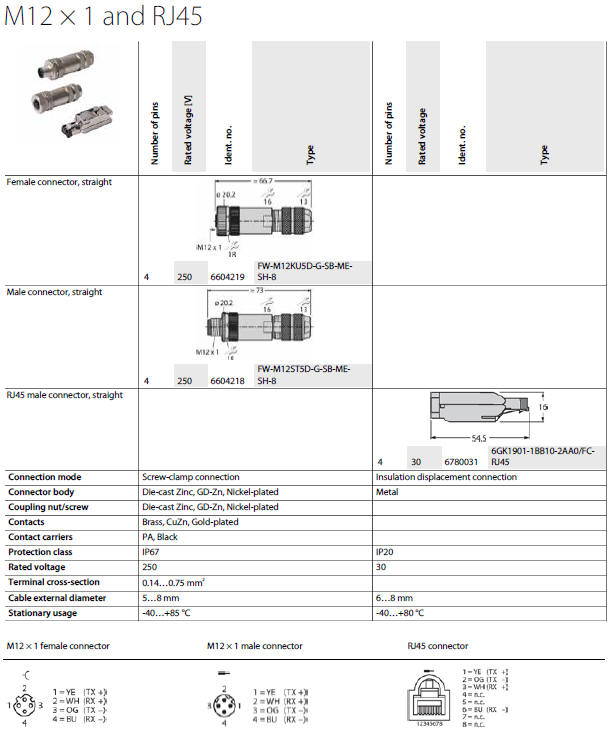

Type Ident No Size Gender No of pins Cable Ext. Dia Terminal Capacity Design
FW-M12KU5D-G-SB-ME-SH-8 6604219 M12 Female 4 5.0...8.0 mm 0.14…0.75 mm˛ Straight
FW-M12ST5D-G-SB-ME-SH-8 6604218 M12 Male 4 5.0...8.0 mm 0.14…0.75 mm˛ Straight
6GK1901-1BB10-2AA0/FC-RJ45 6780031 RJ45 Male 4 6.0...8.0 mm N/A Straight
