M8 Extension Cordsets



Sensors usually have the choice of an attached cable or a plug in cordset, which needs to be ordered separately. A cordset may require a simple extension. The following is a list of standard Extension Cordsets. When selecting, ensure that the correct size, gender, number of pins, straight or right-angled connector and cable length and cable outer jacket material is used.

Custom lengths and cable materials are available on special order.

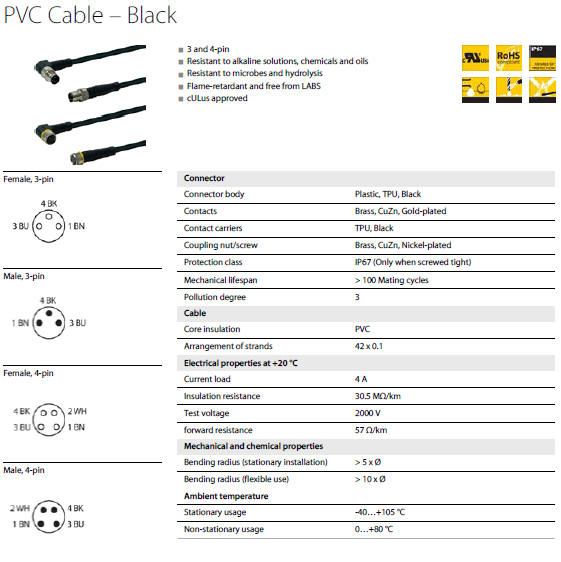

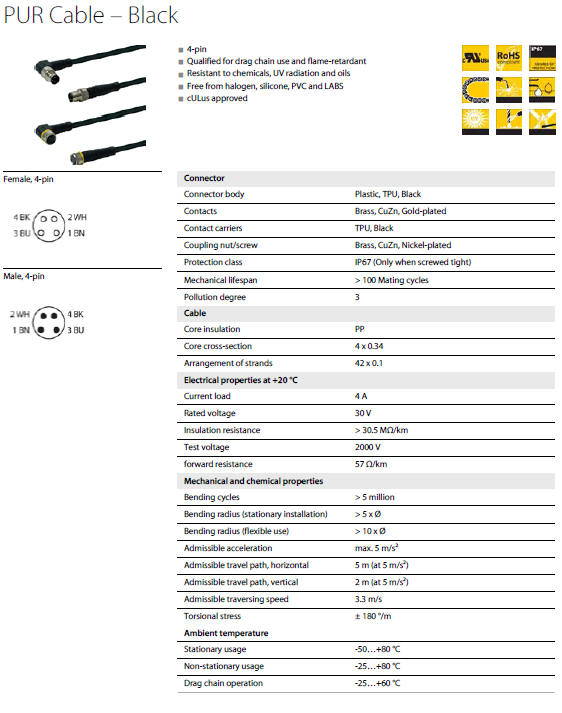

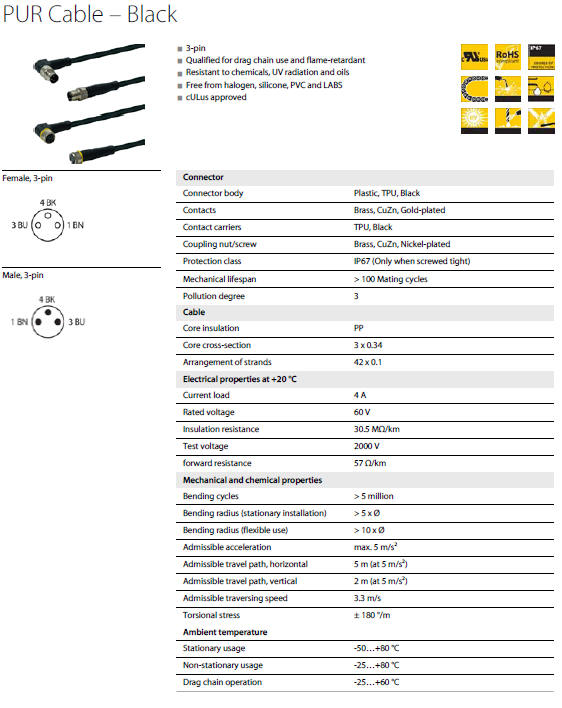

The meaning of the Type Code is shown below the selection chart and the standard cable details are further down the page.
Type Ident No M/F No of Pins Cable Length LED Shield Design Jacket
PKG3M-0.6-PSG3M/TXL 6625666 Female/Male  3 0.6 – – Straight/Straight PUR
PKG3M-0.6-PSG3M/TXL 6625666 Female/Male  3 0.6 – – Straight/Straight PUR
PKG3M-1-PSG3M/TXL 6625667 Female/Male  3 1 – – Straight/Straight PUR
PKG3M-1.5-PSG3M/TXL 6627117 Female/Male  3 1.5 – – Straight/Straight PUR
PKG3M-2-PSG3M/TXL 6625668 Female/Male  3 2 – – Straight/Straight PUR
PKG3M-5-PSG3M/TXL 6627147 Female/Male  3 5 – – Straight/Straight PUR
PKG3M-0.3-PSG3M/TEL 6625300 Female/Male  3 0.3 – – Straight/Straight PVC
PKG3M-0.6-PSG3M/TEL 6625301 Female/Male  3 0.6 – – Straight/Straight PVC
PKG3M-1-PSG3M/TEL 6625302 Female/Male  3 1 – – Straight/Straight PVC
PKG3M-2-PSG3M/TEL 6625303 Female/Male  3 2 – – Straight/Straight PVC
PKG3M-5-PSG3M/TEL 6626547 Female/Male  3 5 – – Straight/Straight PVC
PKW3M-0.3-PSG3M/TXL 6627098 Female/Male  3 0.3 – – RAngled/Straight PUR
PKW3M-0.6-PSG3M/TXL 6627101 Female/Male  3 0.6 – – RAngled/Straight PUR
PKW3M-1-PSG3M/TXL 6627110 Female/Male  3 1 – – RAngled/Straight PUR
PKW3M-2-PSG3M/TXL 6627123 Female/Male  3 2 – – RAngled/Straight PUR
PKW3M-5-PSG3M/TXL 6626822 Female/Male  3 5 – – RAngled/Straight PUR
PKG4M-0.15-PSG4M/TXL 6625669 Female/Male  4 0.15 – – Straight/Straight PUR
PKG4M-0.3-PSG4M/TXL * 6625670 Female/Male  4 0.3 – – Straight/Straight PUR
PKG4M-0.6-PSG4M/TXL * 6625671 Female/Male  4 0.6 – – Straight/Straight PUR
PKG4M-1-PSG4M/TXL * 6625672 Female/Male  4 1 – – Straight/Straight PUR
PKG4M-1.5-PSG4M/TXL * 6627059 Female/Male  4 1.5 – – Straight/Straight PUR
PKG4M-2-PSG4M/TXL * 6625673 Female/Male  4 2 – – Straight/Straight PUR
PKG4M-5-PSG4M/TXL * 6627076 Female/Male  4 5 – – Straight/Straight PUR
PKG4M-0.6-PSG4M/TEL 6625306 Female/Male  4 0.6 – – Straight/Straight PUR
PKG4M-1-PSG4M/TEL 6625307 Female/Male  4 1 – – Straight/Straight PUR
PKG4M-2-PSG4M/TEL 6625308 Female/Male  4 2 – – Straight/Straight PUR
PKG4M-5-PSG4M/TEL 6626491 Female/Male  4 5 – – Straight/Straight PUR
PSG4M-0.2-PSG4M/TXN ** 6630376 Male/Male 4 0.2 - - Straight/Straight PUR
* Includes supply cable for TBEN-S
** jumper for TBEN-S (See manual)

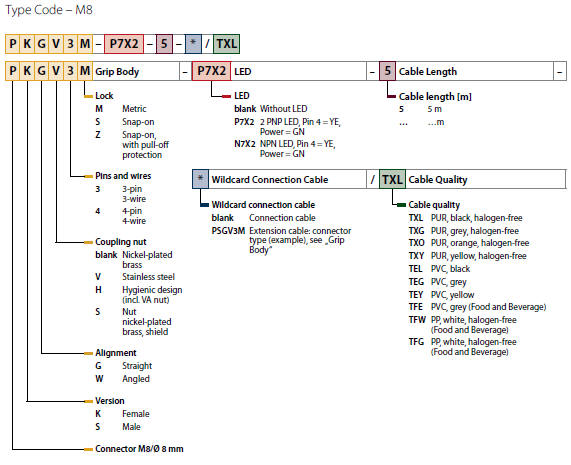

Meaning of Type Code
