ASi Bulk Cable
ASi JBs IP67/65
ASi JBs IP20
ASi FW Connectors
ASi CSets M12 1end
ASi CSets M12 2end
ASi CSets 7/8 1end
ASI CSets 7/8 2end
ASi Recept/Bulkheads
ASi Tees Elbows
ASi Conduit Adaptor
ASi Flat Cable Adapter










ASi Cable in Bulk

Note: Other Lengths Available




Cable Type Cable Ident No Ref Drum Length Outer Colour Outer Protection Cross Section External Diameter

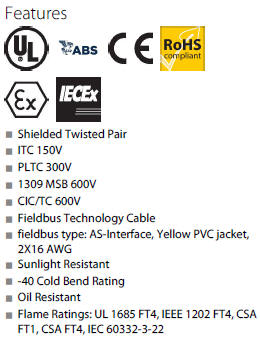

YEL,PVC,2X16,ITCERDB,MS40,AS-I-30M RF50852 254 30 Yellow PVC 2 x 1.3 mm˛ 7.24 mm
YEL,PVC,2X16,ITCERDB,MS40,AS-I-75M RF50852 254 75 Yellow PVC 2 x 1.3 mm˛ 7.24 mm
YEL,PVC,2X16,ITCERDB,MS40,AS-I-100M RF50852 254 100 Yellow PVC 2 x 1.3 mm˛ 7.24 mm
YEL,PVC,2X16,ITCERDB,MS40,AS-I-150M RF50852 254 150 Yellow PVC 2 x 1.3 mm˛ 7.24 mm
YEL,PVC,2X16,ITCERDB,MS40,AS-I-200M RF50852 254 200 Yellow PVC 2 x 1.3 mm˛ 7.24 mm
YEL,PVC,2X16,ITCERDB,MS40,AS-I-225M RF50852 254 225 Yellow PVC 2 x 1.3 mm˛ 7.24 mm
YEL,PVC,2X16,ITCERDB,MS40,AS-I-300M RF50852 254 300 Yellow PVC 2 x 1.3 mm˛ 7.24 mm




Cable Type Cable Ident No Ref Drum Length Outer Colour Outer Protection Cross Section External Diameter

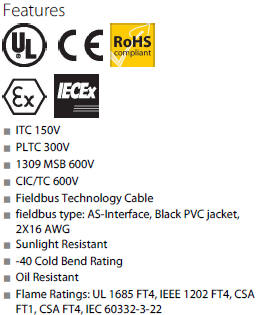

BLK,PVC,2X16,ITCERDB,MS40,AS-I-30M RF51029 254BK 30 Black PVC 2 x 1.3 mm˛ 7.24 mm
BLK,PVC,2X16,ITCERDB,MS40,AS-I-75M RF51029 254BK 75 Black PVC 2 x 1.3 mm˛ 7.24 mm
BLK,PVC,2X16,ITCERDB,MS40,AS-I-100M RF51029 254BK 100 Black PVC 2 x 1.3 mm˛ 7.24 mm
BLK,PVC,2X16,ITCERDB,MS40,AS-I-150M RF51029 254BK 150 Black PVC 2 x 1.3 mm˛ 7.24 mm
BLK,PVC,2X16,ITCERDB,MS40,AS-I-200M RF51029 254BK 200 Black PVC 2 x 1.3 mm˛ 7.24 mm
BLK,PVC,2X16,ITCERDB,MS40,AS-I-225M RF51029 254BK 225 Black PVC 2 x 1.3 mm˛ 7.24 mm
BLK,PVC,2X16,ITCERDB,MS40,AS-I-300M RF51029 254BK 300 Black PVC 2 x 1.3 mm˛ 7.24 mm







Cable Type Cable Ident No Ref Drum Length Outer Colour Outer Protection Cross Section External Diameter

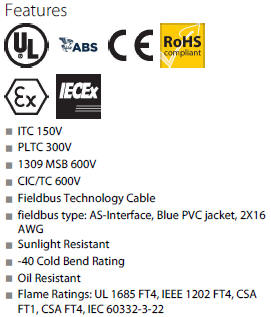

BLU,PVC,2X16,ITCERDB,MS40,AS-I-30M RF50962 254B 30 Blue PVC 2 x 1.3 mm˛ 7.24 mm
BLU,PVC,2X16,ITCERDB,MS40,AS-I-75M RF50962 254B 75 Blue PVC 2 x 1.3 mm˛ 7.24 mm
BLU,PVC,2X16,ITCERDB,MS40,AS-I-100M RF50962 254B 100 Blue PVC 2 x 1.3 mm˛ 7.24 mm
BLU,PVC,2X16,ITCERDB,MS40,AS-I-150M RF50962 254B 150 Blue PVC 2 x 1.3 mm˛ 7.24 mm
BLU,PVC,2X16,ITCERDB,MS40,AS-I-200M RF50962 254B 200 Blue PVC 2 x 1.3 mm˛ 7.24 mm
BLU,PVC,2X16,ITCERDB,MS40,AS-I-225M RF50962 254B 225 Blue PVC 2 x 1.3 mm˛ 7.24 mm
BLU,PVC,2X16,ITCERDB,MS40,AS-I-300M RF50962 254B 300 Blue PVC 2 x 1.3 mm˛ 7.24 mm





Cable Type Cable Ident No Ref Drum Length Outer Colour Outer Protection Cross Section External Diameter

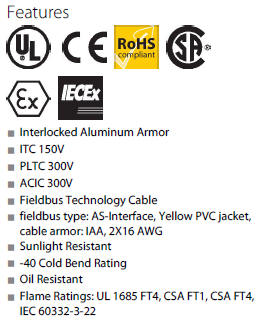

YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-30M RF50966 255A 30 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm
YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-75M RF50966 255A 75 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm
YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-100M RF50966 255A 100 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm
YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-150M RF50966 255A 150 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm
YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-200M RF50966 255A 200 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm
YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-225M RF50966 255A 225 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm
YEL,PVC,2X16,PVC,IAA,ITCERDB,AS-I-300M RF50966 255A 300 Yellow PVC/Al Armoured 2 x 1.3 mm˛ 15.24 mm





Cable Type Cable Ident No Ref Drum Length Outer Colour Outer Protection Cross Section External Diameter
YEL,PVC,4X16,ITCERDB,MS40,AS-I-30M RF51875 2544 30 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
YEL,PVC,4X16,ITCERDB,MS40,AS-I-75M RF51875 2544 75 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
YEL,PVC,4X16,ITCERDB,MS40,AS-I-100M RF51875 2544 100 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
YEL,PVC,4X16,ITCERDB,MS40,AS-I-150M RF51875 2544 150 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
YEL,PVC,4X16,ITCERDB,MS40,AS-I-200M RF51875 2544 200 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
YEL,PVC,4X16,ITCERDB,MS40,AS-I-225M RF51875 2544 225 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
YEL,PVC,4X16,ITCERDB,MS40,AS-I-300M RF51875 2544 300 Yellow PVC 4 x 1.3 mm˛ 8.51 mm
