ASi Bulk Cable
ASi JBs IP67/65
ASi JBs IP20
ASi FW Connectors
ASi CSets M12 1end
ASi CSets M12 2end
ASi CSets 7/8 1end
ASI CSets 7/8 2end
ASi Recept/Bulkheads
ASi Tees Elbows
ASi Conduit Adaptor
ASi Flat Cable Adapter











ASi Cordsets M12

Standard Cordsets in Yellow (Type 254), Black (Type 254BK) and (Blue Type 254B)

M12 Cordsets, Connector on Both Ends

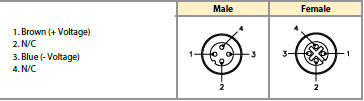

RKC Female Straight       WKC Female Right-Angled     RSC Male Straight     WSC Male Right-Angled

Connector Dimensions in Inches (millimetres)

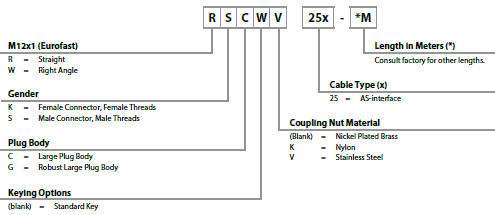

Meaning of Part Number











Cordset Type for Cable Type 254 (Yellow) Cordset Type for Cable Type 254BK (Black) Cordset Type for Cable Type 254B (Blue) Connector Style St=Straight   RA=Right-Angled Cable Length
RSC RKC 254-1M RSC RKC 254BK-1M RSC RKC 254B-1M Male St-Female St 1
RSC RKC 254-2M RSC RKC 254BK-2M RSC RKC 254B-2M Male St-Female St 2
RSC RKC 254-4M RSC RKC 254BK-4M RSC RKC 254B-4M Male St-Female St 4
RSC RKC 254-6M RSC RKC 254BK-6M RSC RKC 254B-6M Male St-Female St 6
RSC RKC 254-8M RSC RKC 254BK-8M RSC RKC 254B-8M Male St-Female St 8
RSC RKC 254-10M RSC RKC 254BK-10M RSC RKC 254B-10M Male St-Female St 10
RSC RKC 254-15M RSC RKC 254BK-15M RSC RKC 254B-15M Male St-Female St 15
RSC RSC 254-1M RSC RSC 254BK-1M RSC RSC 254B-1M Male St-Male ST 1
RSC RSC 254-2M RSC RSC 254BK-2M RSC RSC 254B-2M Male St-Male ST 2
RSC RSC 254-4M RSC RSC 254BK-4M RSC RSC 254B-4M Male St-Male ST 4
RSC RSC 254-6M RSC RSC 254BK-6M RSC RSC 254B-6M Male St-Male ST 6
RSC RSC 254-8M RSC RSC 254BK-8M RSC RSC 254B-8M Male St-Male ST 8
RSC RSC 254-10M RSC RSC 254BK-10M RSC RSC 254B-10M Male St-Male ST 10
RSC RSC 254-15M RSC RSC 254BK-15M RSC RSC 254B-15M Male St-Male ST 15
RKC RKC 254-1M RKC RKC 254BK-1M RKC RKC 254B-1M Female ST-Female St 1
RKC RKC 254-2M RKC RKC 254BK-2M RKC RKC 254B-2M Female ST-Female ST 2
RKC RKC 254-4M RKC RKC 254BK-4M RKC RKC 254B-4M Female ST-Female ST 4
RKC RKC 254-6M RKC RKC 254BK-6M RKC RKC 254B-6M Female ST-Female ST 6
RKC RKC 254-8M RKC RKC 254BK-8M RKC RKC 254B-8M Female ST-Female ST 8
RKC RKC 254-10M RKC RKC 254BK-10M RKC RKC 254B-10M Female ST-Female ST 10
RKC RKC 254-15M RKC RKC 254BK-15M RKC RKC 254B-15M Female ST-Female ST 15
WSC WKC 254-1M WSC WKC 254BK-1M WSC WKC 254B-1M Male RA-Female RA 1
WSC WKC 254-2M WSC WKC 254BK-2M WSC WKC 254B-2M Male RA-Female RA 2
WSC WKC 254-4M WSC WKC 254BK-4M WSC WKC 254B-4M Male RA-Female RA 4
WSC WKC 254-6M WSC WKC 254BK-6M WSC WKC 254B-6M Male RA-Female RA 6
WSC WKC 254-8M WSC WKC 254BK-8M WSC WKC 254B-8M Male RA-Female RA 8
WSC WKC 254-10M WSC WKC 254BK-10M WSC WKC 254B-10M Male RA-Female RA 10
WSC WKC 254-15M WSC WKC 254BK-15M WSC WKC 254B-15M Male RA-Female RA 15
WSC WSC 254-1M WSC WSC 254BK-1M WSC WSC 254B-1M Male RA-Male RA 1
WSC WSC 254-2M WSC WSC 254BK-2M WSC WSC 254B-2M Male RA-Male RA 2
WSC WSC 254-4M WSC WSC 254BK-4M WSC WSC 254B-4M Male RA-Male RA 4
WSC WSC 254-6M WSC WSC 254BK-6M WSC WSC 254B-6M Male RA-Male RA 6
WSC WSC 254-8M WSC WSC 254BK-8M WSC WSC 254B-8M Male RA-Male RA 8
WSC WSC 254-10M WSC WSC 254BK-10M WSC WSC 254B-10M Male RA-Male RA 10
WSC WSC 254-15M WSC WSC 254BK-15M WSC WSC 254B-15M Male RA-Male RA 15
WKC WKC 254-1M WKC WKC 254BK-1M WKC WKC 254B-1M Female RA-Female RA 1
WKC WKC 254-2M WKC WKC 254BK-2M WKC WKC 254B-2M Female RA-Female RA 2
WKC WKC 254-4M WKC WKC 254BK-4M WKC WKC 254B-4M Female RA-Female RA 4
WKC WKC 254-6M WKC WKC 254BK-6M WKC WKC 254B-6M Female RA-Female RA 6
WKC WKC 254-8M WKC WKC 254BK-8M WKC WKC 254B-8M Female RA-Female RA 8
WKC WKC 254-10M WKC WKC 254BK-10M WKC WKC 254B-10M Female RA-Female RA 10
WKC WKC 254-15M WKC WKC 254BK-15M WKC WKC 254B-15M Female RA-Female RA 15
RSC WSC 254-1M RSC WSC 254BK-1M RSC WSC 254B-1M Male St-Male RA 1
RSC WSC 254-2M RSC WSC 254BK-2M RSC WSC 254B-2M Male St-Male RA 2
RSC WSC 254-4M RSC WSC 254BK-4M RSC WSC 254B-4M Male St-Male RA 4
RSC WSC 254-6M RSC WSC 254BK-6M RSC WSC 254B-6M Male St-Male RA 6
RSC WSC 254-8M RSC WSC 254BK-8M RSC WSC 254B-8M Male St-Male RA 8
RSC WSC 254-10M RSC WSC 254BK-10M RSC WSC 254B-10M Male St-Male RA 10
RSC WSC 254-15M RSC WSC 254BK-15M RSC WSC 254B-15M Male St-Male RA 15
RSC WKC 254-1M RSC WKC 254BK-1M RSC WKC 254B-1M Male St-Female RA 1
RSC WKC 254-2M RSC WKC 254BK-2M RSC WKC 254B-2M Male St-Female RA 2
RSC WKC 254-4M RSC WKC 254BK-4M RSC WKC 254B-4M Male St-Female RA 4
RSC WKC 254-6M RSC WKC 254BK-6M RSC WKC 254B-6M Male St-Female RA 6
RSC WKC 254-8M RSC WKC 254BK-8M RSC WKC 254B-8M Male St-Female RA 8
RSC WKC 254-10M RSC WKC 254BK-10M RSC WKC 254B-10M Male St-Female RA 10
RSC WKC 254-15M RSC WKC 254BK-15M RSC WKC 254B-15M Male St-Female RA 15
WSC RKC 254-1M WSC RKC 254BK-1M WSC RKC 254B-1M Male RA-Female St 1
WSC RKC 254-2M WSC RKC 254BK-2M WSC RKC 254B-2M Male RA-Female St 2
WSC RKC 254-4M WSC RKC 254BK-4M WSC RKC 254B-4M Male RA-Female St 4
WSC RKC 254-6M WSC RKC 254BK-6M WSC RKC 254B-6M Male RA-Female St 6
WSC RKC 254-8M WSC RKC 254BK-8M WSC RKC 254B-8M Male RA-Female St 8
WSC RKC 254-10M WSC RKC 254BK-10M WSC RKC 254B-10M Male RA-Female St 10
WSC RKC 254-15M WSC RKC 254BK-15M WSC RKC 254B-15M Male RA-Female St 15
RKC WKC 254-1M RKC WKC 254BK-1M RKC WKC 254B-1M Female ST-Female RA 1
RKC WKC 254-2M RKC WKC 254BK-2M RKC WKC 254B-2M Female ST-Female RA 2
RKC WKC 254-4M RKC WKC 254BK-4M RKC WKC 254B-4M Female ST-Female RA 4
RKC WKC 254-6M RKC WKC 254BK-6M RKC WKC 254B-6M Female ST-Female RA 6
RKC WKC 254-8M RKC WKC 254BK-8M RKC WKC 254B-8M Female ST-Female RA 8
RKC WKC 254-10M RKC WKC 254BK-10M RKC WKC 254B-10M Female ST-Female RA 10
RKC WKC 254-15M RKC WKC 254BK-15M RKC WKC 254B-15M Female ST-Female RA 15
