ASi JBs IP67/65

These Junction Boxes, or I/O blocks as they are also known, enable flexible connection of multiple I/O to an ASi Bus in the field or on a machine without the need for an enclosure.

These units are ideal in harsh applications such as mobile equipment, automotive, food and beverage and offer quick and secure plug-in connections.

Type	No of Inputs	No of Outputs	Input	Output Rating	Degree of Protection	Drawing
FAS4-CSG43-A	4	3	pnp	700 mA	IP67	1
FAS4-CSG44	4	4	pnp	400 mA	IP67	1
FAS4-CSG44-A	4	4	pnp	700 mA	IP67	1
FAS4-S0003G-A	0	3	pnp	700 mA	IP67	1
FAS4-S0400	4	0	pnp	N/A	IP67	1
FAS8-S0404G-A	4	4	pnp	700 mA	IP67	2
FAS8-S0404H-A	4	4	pnp	2A High Power	IP67	2
ASI-AI-4-M12 BW1359	4	0	4-20mA	N/A	IP65	3
ASI-AI-4-M12 BW1360	4	0	0-10V	N/A	IP65	3
ASI-AI-4PT100-M12 BW2532	4	0	RTD	N/A	IP65	3
ASI-AO-4-M12 BW1361	0	4	N/A	0-20mA	IP65	3
ASI-AO-4-M12 BW1362	0	4	N/A	0-10V	IP65	3
ASI-AI-02-M12-V3 BW1893	2	0	4-20mA	N/A	IP65	4
ASI-AI-02-M12-V3 BW1993	2	0	0-10V	N/A	IP65	4
ASI-AI-02RTD-M12-V3 BW1895	2	0	RTD	N/A	IP65	4

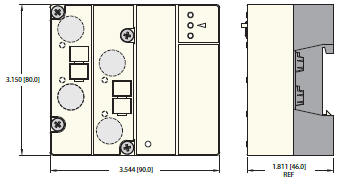

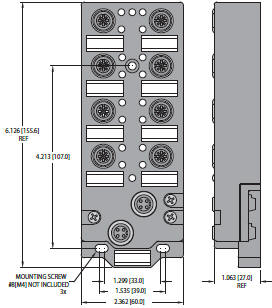

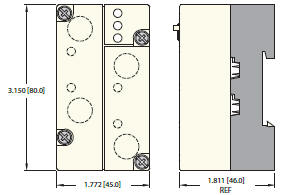

Dimensions Drawings

Inches (millimetres)

1: FAS4 Models 2: FAS8 Models

3: ASI-AO-4 & ASI-AO-4 Models 4: ASI-AI-02 Models
