ASi Conduit Adapters and Wall Box Adapters


Conduit Adapter - 2 Gang

These ASi Conduit Adapters are designed for use with U.S. 3/4" Form 8 or Mark 9 conduit boxes. However we can provide varying designs of suitable stainless steel mounting boxes or wall plates to suit your requirements. These outlets provide a useful quick disconnect arrangement.  A gasket is provided with the adapter. The IP67 rating is dependent on the outlets being used with the appropriate connector or blanking cover. Connectors are stainless steel.

Type Outlet Sockets Socket Connector Short Circuit Indicator Degree of Protection
BCA-25-E123 1 M12 No IP67
BCA-25-E223 2 M12 No IP67
BCA-25SC-E123 1 M12 Yes IP67
BCA-25SC-E223 2 M12 Yes IP67
BCA-25-M123 1 7/8" No IP67
BCA-25-M223 2 7/8" No IP67



Dimensions Drawing





Wall Plate Adapter

BPA-25-M113 ASi Wall Plate Adapter

These ASi Wall Plate Adapters are designed for use with U.S. single gang wall outlet boxes. However we provide varying designs of suitable stainless steel mounting boxes or wall plates to suit your requirements. These outlets provide a useful quick disconnect industrial outlet arrangement. A gasket is provided with the adapter. The IP67 rating is dependent on the outlets being used with the appropriate connector or blanking cover. Connector is female, 7/8" in size and stainless steel.

Type: BPA-25-M113

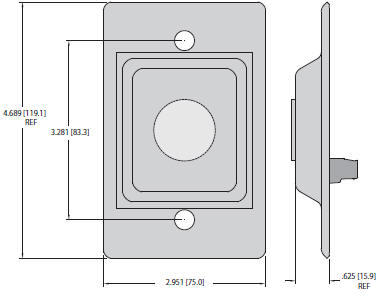

Dimensions Drawing

Inches (millimetres)
