ASi J/Bs IP20 - I/O Blocks
 |
These Junction Boxes, or I/O Blocks
as they are also known, enable a high density of I/O be added to an
ASi bus within an enclosure. All these devices have screw terminals
and in some models the terminals are removable.
I/O terminals are along the bottom of
the units and the bus connections are either on the top terminals or
by M12 connector. |
|
Type |
Inputs |
Outputs |
Output Rating |
ASi Bus Connection |
Terminals (F=Fixed, R=Removable) |
Drawing |
|
FAS20-4S |
4 |
0 |
N/A |
Terminals |
F |
1 |
|
FAS20-4S-4G |
4 |
4 |
130mA Total |
Terminals |
F |
1 |
|
FAS20-4S-4G-A |
4 |
4 |
1A High Power |
Terminals |
F |
1 |
|
FAS20-4S-R |
4 |
0 |
N/A |
Terminals |
R |
2 |
|
FAS20-4S-4G-R-A |
4 |
4 |
1A High Power |
Terminals |
R |
2 |
|
FAS20-4S-E |
4 |
0 |
N/A |
M12 |
F |
3 |
|
FAS20-4S-4G-E-A |
4 |
4 |
1A High Power |
M12 |
F |
3 |
|
FAS20-4S-ER |
4 |
0 |
N/A |
M12 |
R |
4 |
|
FAS20-4S-4G-ER-A |
4 |
4 |
1A High Power |
M12 |
R |
4 |
|
|
Dimensions Drawings
Inches (Millimetres)

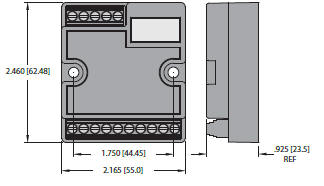

1:
Fixed Terminals, Bus Wired to Terminals

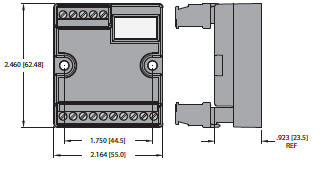

2: Removable Terminals, Bus Wired to Terminals
|

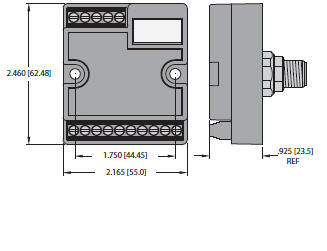

3: Fixed Terminals, Bus with M12 Connector

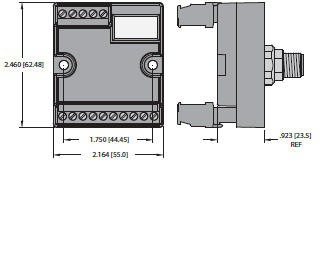

4: Removable Terminals, Bus with M12 Connector |
|
