ASi FW Connectors

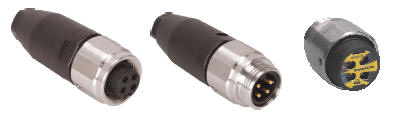

These connectors allow the installer to use bulk cable to connect on site to various ASi devices which have M12 and 7/8" connectors. They also allow cordsets to be shortened if required. They are available in male or female to suit various cable sizes. There are also M12 models in a right-angled design.

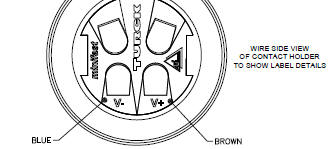

Designed for ASi - All connectors are 4-Pole with required 2 poles labelled
Type	Material	Size	Gender	Cable External Diameter	Design	Drawing
BK4140-0/9/ASI	PBT	7/8"	Female	6.0…8.0 mm	Straight	1
BS4140-0/9/ASI	PBT	7/8"	Male	6.0…8.0 mm	Straight	2
BKV4140-0/9/ASI	Stainless Steel	7/8"	Female	6.0…8.0 mm	Straight	3
BSV4140-0/9/ASI	Stainless Steel	7/8"	Male	6.0…8.0 mm	Straight	4
B8141-0/PG9/ASI	PBT	M12	Female	6.0...8.0 mm	Straight	5
BS8141-0/PG9/ASI	PBT	M12	Male	6.0...8.0 mm	Straight	6
B8241-0/PG9/ASI	PBT	M12	Female	6.0...8.0 mm	R Angled	7
BS8241-0/PG9/ASI	PBT	M12	Male	6.0...8.0 mm	R Angled	8

Dimensions Drawings

Inches (millimetres)

Dwg 1 Dwg 2

Dwg 3 Dwg 4

Dwg 5 Dwg 6

Dwg 7 Dwg 8
