DeviceNet™ Bulk Cable

DeviceNet™ cables consist of a shielded and twisted data pair, as well as a shielded and twisted power pair for the 24 VDC bus power, with an additional outer shield. The drain wire, together with multiple layers of foil and/or braid that surround data and power pairs, create network shield sufficient to withstand harsh industrial environment. A key benefit of carrying supply voltage in the network cable is that many DeviceNet™ stations do not need a further supply, allowing the user to only need to run one cable to the station. Some stations, particularly those with high current outputs, can draw too much power from the DeviceNet™ power supply. These stations typically have an auxiliary power connection, allowing the user to use a second power supply for just the I/O. The bus power supply still powers the DeviceNet™ communication electronics.

Underlined part numbers link to Data Sheets

In the three tables below, the DeviceNet™ cables are divided into "Thin", "Mid" and "Thick". The Thin cable are mainly used for drops from the bus to devices but can be used for shorter trunk runs. The Mid and Thick cables are mainly for trunk runs, the thick cables enabling longer bus runs. The manufacture of M8 cordsets requires DeviceNet™ sizes 5724 and 5715, which are less than 6mm in diameter.

DeviceNet™ Thin Cables

Meeting the requirements of ODVA Thin or Type 1 Cable.

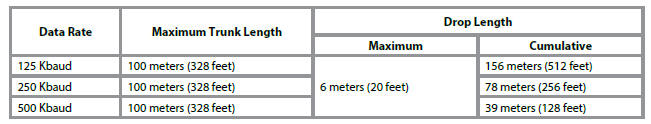

Commonly used as Drop Cables up to a maximum length of 6 metres
or as Trunk Cable up to to a maximum length of 100 metres.

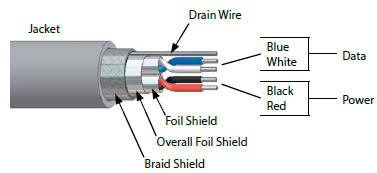

Typical Construction

Please Order using "Devicenet™ Cable Type" - * M where * is length in metres. E.G. CABLE 5724-250M

Standard Lengths are: 30m, 75m, 100m, 150m, 225m, 300m. Other Lengths to order.


Type Ident No Devicenet™ Cable Type Power Pair (sq mm) Data Pair (sq mm) Diameter (mm) Jacket Colour
GRY,PVC,2STPX24,S-DF,AWM,DN RF51045 5724 2x0.20 2x0.20 5.69 PVC Grey
VIO,TPU,1STPX22+1STPX24,S-DB,AWM,DN,HF RF51916 5725 2x0.33 2x0.20 7.00 TPU Violet
BLK,PVC,2STPX22,S-DF,PLTC,DN RF51452 572BK 2x.033 2x0.33 7.24 PVC Black
GRY,PVC,2STPX22,S-DF,PLTC,DN RF50603 572 2x0.33 2x0.33 7.24 PVC Grey
GRY,PVC,2STPX22,S-DB,PLTC,DN,FL RF50629 577 2x0.33 2x0.33 8.38 PVC Grey
GRY,PVC,2STPX22,S-DB,PLTC,DN  RF50651 578 2x0.33 2x0.33 7.87 PVC Grey
GRY,PVC,1STPDX22+2X22,AWM,DN
5715 2x0.33 2x0.33 5.97 PVC Grey
CHA,TPE,2STPX22,S-DB,AWM,DN,FL RF51296 5732 2x0.33 2x0.33 8.51 TPE Charcoal
CHA,TPE,2STPDX22,S-B,ITC,DN,FL RF51754 5735 2x0.33 2x0.33 9.27 TPE Charcoal
YEL,TPE,2STPDX22,S-B,ITC,DN,FL RF52041 5735Y 2x0.33 2x0.33 9.27 TPE Yellow
BLK,TPE,1STPX18+1STPX22,S-DFB,AWM,DN RF51888 5736BK 2x0.82 2x0.33 7.24 TPE Black

Note: Type 5725 and 5715 are Pico-size thin cables - M8 connectors must use Pico-size


DeviceNet™ Mid Cables

Meeting the requirements of ODVA Mid or Type III Cable.
Provides more flexibility when used as Trunk Cable up to to a maximum length of 100 metres.

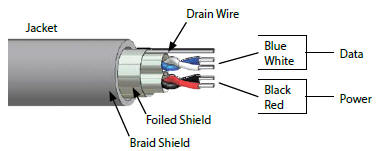

Typical Construction

Please Order using "Devicenet™ Cable Type" - * M where * is length in metres. E.G. CABLE 5722-150M

Standard Lengths are: 30m, 75m, 100m, 150m, 225m, 300m. Other Lengths to order.


Type Ident No Devicenet™ Cable Type Power Pair (sq mm) Data Pair (sq mm) Diameter (mm) Jacket Colour
GRY,PVC,1STPX17+1STPX20,S-DF,PLTC,DN,FL RF50876 5722 2x1.04 2x0.52 8.89 PVC Grey
GRY,TPU,1STPX17+1STPX20,S-DF,AWM,DN,FL RF50877 5723 2x1.04 2x0.52 8.89 TPU Grey
BLU,PVC,1STPX17+1STPX20,S-DF,PLTC,DN,FL RF51455 5722B 2x1.04 2x0.52 8.89 PVC Blue
BLK,PVC,1STPX17+1STPX20,S-DF,PLTC,DN,FL  RF51456 5722BK 2x1.04 2x0.52 8.89 PVC Black
GRY,PVC,1STPX16+1STPX20,S-DF,PLTC,DN RF50721 5711 2x1.31 2x0.52 8.38 PVC Grey
CHA,TPE,1STPX16+1STPX20,S-DB,AWM,DN,FL  RF51235 5731 2x1.31 2x0.52 9.60 TPE Charcoal
BLU,PVC,1STPX16+1STPX20,S-DF,PLTC,DN  RF51654 5711B 2x1.31 2x0.52 8.38 PVC Blue
BLK,PVC,1STPX16+1STPX20,S-DF,PLTC,DN  RF51655 5711BK 2x1.31 2x0.52 8.38 PVC Black
BLK,EX60,1STPX16+1STPX18,S-DFB,TCERDB,DN RF52010 5728 2x1.31 2x0.82 13.46 EX60 Black






DeviceNet™ Thick Cables

Meeting the requirements of ODVA Thick or Type 1 Cable.
Provides the most when used as Trunk Cable up to to the maximum Standard Cable Length of 500 metres.

Please Order using "
Devicenet™ Cable Type" - * M where * is length in metres. E.G. CABLE 575-100M

Standard Lengths are: 30m, 75m, 100m, 150m, 225m, 300m. Other Lengths to order.



Typical Construction



Type Ident No Devicenet™ Cable Type Power Pair (sq mm) Data Pair (sq mm) Diameter (mm) Jacket Colour
GRY,TPU,1STPX15+1STPX18,S-DFB,AWM,DN RF50633 575 2x1.65 2x0.82 10.39 TPU Grey
GRY,PVC,1STPX15+1STPX18,S-DFB,PLTC,DN RF50652 579 2x1.65 2x0.82 11.18 PVC Grey
CHA,PVC,1STPX15+1STPX18,S-DB,PLTC,DN RF51106 5727 2x1.65 2x0.82 12.50 PVC Black
GRY,TPE,1STPX15+1STPX18,S-DFB,AWM,DN RF51231 5730 2x1.65 2x0.82 10.49 TPE Grey
BLU,PVC,1STPX15+1STPX18,S-DFB,PLTC,DN RF51453 579B 2x1.65 2x0.82 11.18 PVC Blue
BLK,PVC,1STPX15+1STPX18,S-DFB,PLTC,DN RF51454 579BK 2x1.65 2x0.82 11.18 PVC Black
