DeviceNet™ 7/8" Cordsets

Connector on One End Only

As seen on our DeviceNet Bulk Cable page, there are over 20 types of DeviceNet cable. When combined with M8, M12 and 7/8" connectors and receptacles, the result is quite a large range of cordsets. Here we list the standard versions of Thick, Mid and Thin Cable 7/8" cordsets in standard lengths. Other lengths are available to order.

For Stainless Steel Coupling Nuts change RKM to RKV, WKM to WKV, RSM to RSV, WSM to WSV


Typical DeviceNet Cable

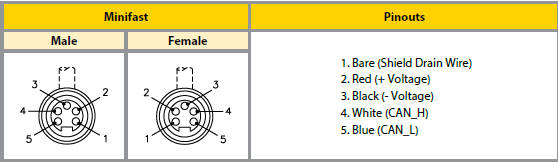

7/8"  Connector Dimensions in Inches (millimetres)



         RKM Female Straight                             WKM Female Right-Angled





        RSM Male Straight                               WSM Male Right-Angled

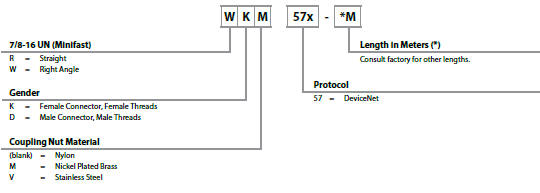

Meaning of Type Codes
DeviceNet Thin Cable 7/8" Cordsets with Connector on One End
Cable Type 5724 Cable Type 5725 Cable Type 572BK Cable Type
 572		 Cable Type
 577		 Cable Type
 578		 Gender Connector Style ST=Straight  RA=Right-Angled Cable Length
Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair
2x0.20+2x0.20 2x0.33+2x0.20 2x.033+2x0.33 2x0.33+2x0.33 2x0.33+2x0.33 2x0.33+2x0.33
RKM5724-1M RKM5725-1M RKM572BK-1M RKM572-1M RKM577-1M RKM578-1M Female ST 1
RKM5724-2M RKM5725-2M RKM572BK-2M RKM572-2M RKM577-2M RKM578-2M Female ST 2
RKM5724-4M RKM5725-4M RKM572BK-4M RKM572-4M RKM577-4M RKM578-4M Female ST 4
RKM5724-6M RKM5725-6M RKM572BK-6M RKM572-6M RKM577-6M RKM578-6M Female ST 6
RKM5724-8M RKM5725-8M RKM572BK-8M RKM572-8M RKM577-8M RKM578-8M Female ST 8
RKM5724-10M RKM5725-10M RKM572BK-10M RKM572-10M RKM577-10M RKM578-10M Female ST 10
RKM5724-15M RKM5725-15M RKM572BK-15M RKM572-15M RKM577-15M RKM578-15M Female ST 15
WKM5724-1M WKM5725-1M WKM572BK-1M WKM572-1M WKM577-1M WKM578-1M Female RA 1
WKM5724-2M WKM5725-2M WKM572BK-2M WKM572-2M WKM577-2M WKM578-2M Female RA 2
WKM5724-4M WKM5725-4M WKM572BK-4M WKM572-4M WKM577-4M WKM578-4M Female RA 4
WKM5724-6M WKM5725-6M WKM572BK-6M WKM572-6M WKM577-6M WKM578-6M Female RA 6
WKM5724-8M WKM5725-8M WKM572BK-8M WKM572-8M WKM577-8M WKM578-8M Female RA 8
WKM5724-10M WKM5725-10M WKM572BK-10M WKM572-10M WKM577-10M WKM578-10M Female RA 10
WKM5724-15M WKM5725-15M WKM572BK-15M WKM572-15M WKM577-15M WKM578-15M Female RA 15
RSM5724-1M RSM5725-1M RSM572BK-1M RSM572-1M RSM577-1M RSM578-1M Male ST 1
RSM5724-2M RSM5725-2M RSM572BK-2M RSM572-2M RSM577-2M RSM578-2M Male ST 2
RSM5724-4M RSM5725-4M RSM572BK-4M RSM572-4M RSM577-4M RSM578-4M Male ST 4
RSM5724-6M RSM5725-6M RSM572BK-6M RSM572-6M RSM577-6M RSM578-6M Male ST 6
RSM5724-8M RSM5725-8M RSM572BK-8M RSM572-8M RSM577-8M RSM578-8M Male ST 8
RSM5724-10M RSM5725-10M RSM572BK-10M RSM572-10M RSM577-10M RSM578-10M Male ST 10
RSM5724-15M RSM5725-15M RSM572BK-15M RSM572-15M RSM577-15M RSM578-15M Male ST 15
WSM5724-1M WSM5725-1M WSM572BK-1M WSM572-1M WSM577-1M WSM578-1M Male ST 1
WSM5724-2M WSM5725-2M WSM572BK-2M WSM572-2M WSM577-2M WSM578-2M Male RA 2
WSM5724-4M WSM5725-4M WSM572BK-4M WSM572-4M WSM577-4M WSM578-4M Male RA 4
WSM5724-6M WSM5725-6M WSM572BK-6M WSM572-6M WSM577-6M WSM578-6M Male RA 6
WSM5724-8M WSM5725-8M WSM572BK-8M WSM572-8M WSM577-8M WSM578-8M Male RA 8
WSM5724-10M WSM5725-10M WSM572BK-10M WSM572-10M WSM577-10M WSM578-10M Male RA 10
WSM5724-15M WSM5725-15M WSM572BK-15M WSM572-15M WSM577-15M WSM578-15M Male RA 15


  Cable Type 5715 Cable Type 5732 Cable Type 5735 Cable Type 5735Y Cable Type 5736BK Gender Connector Style ST=Straight  RA=Right-Angled Cable Length
  Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair
  2x0.20+2x0.20 2x0.33+2x0.20 2x.033+2x0.33 2x0.33+2x0.33 2x0.33+2x0.33
  RKM5715-1M RKM5732-1M RKM5735-1M RKM5735Y-1M RKM5736BK-1M Female ST 1
  RKM5715-2M RKM5732-2M RKM5735-2M RKM5735Y-2M RKM5736BK-2M Female ST 2
  RKM5715-4M RKM5732-4M RKM5735-4M RKM5735Y-4M RKM5736BK-4M Female ST 4
  RKM5715-6M RKM5732-6M RKM5735-6M RKM5735Y-6M RKM5736BK-6M Female ST 6
  RKM5715-8M RKM5732-8M RKM5735-8M RKM5735Y-8M RKM5736BK-8M Female ST 8
  RKM5715-10M RKM5732-10M RKM5735-10M RKM5735Y-10M RKM5736BK-10M Female ST 10
  RKM5715-15M RKM5732-15M RKM5735-15M RKM5735Y-15M RKM5736BK-15M Female ST 15
  WKM5715-1M WKM5732-1M WKM5735-1M WKM5735Y-1M WKM5736BK-1M Female RA 1
  WKM5715-2M WKM5732-2M WKM5735-2M WKM5735Y-2M WKM5736BK-2M Female RA 2
  WKM5715-4M WKM5732-4M WKM5735-4M WKM5735Y-4M WKM5736BK-4M Female RA 4
  WKM5715-6M WKM5732-6M WKM5735-6M WKM5735Y-6M WKM5736BK-6M Female RA 6
  WKM5715-8M WKM5732-8M WKM5735-8M WKM5735Y-8M WKM5736BK-8M Female RA 8
  WKM5715-10M WKM5732-10M WKM5735-10M WKM5735Y-10M WKM5736BK-10M Female RA 10
  WKM5715-15M WKM5732-15M WKM5735-15M WKM5735Y-15M WKM5736BK-15M Female RA 15
  RSM5715-1M RSM5732-1M RSM5735-1M RSM5735Y-1M RSM5736BK-1M Male ST 1
  RSM5715-2M RSM5732-2M RSM5735-2M RSM5735Y-2M RSM5736BK-2M Male ST 2
  RSM5715-4M RSM5732-4M RSM5735-4M RSM5735Y-4M RSM5736BK-4M Male ST 4
  RSM5715-6M RSM5732-6M RSM5735-6M RSM5735Y-6M RSM5736BK-6M Male ST 6
  RSM5715-8M RSM5732-8M RSM5735-8M RSM5735Y-8M RSM5736BK-8M Male ST 8
  RSM5715-10M RSM5732-10M RSM5735-10M RSM5735Y-10M RSM5736BK-10M Male ST 10
  RSM5715-15M RSM5732-15M RSM5735-15M RSM5735Y-15M RSM5736BK-15M Male ST 15
  WSM5715-1M WSM5732-1M WSM5735-1M WSM5735Y-1M WSM5736BK-1M Male ST 1
  WSM5715-2M WSM5732-2M WSM5735-2M WSM5735Y-2M WSM5736BK-2M Male RA 2
  WSM5715-4M WSM5732-4M WSM5735-4M WSM5735Y-4M WSM5736BK-4M Male RA 4
  WSM5715-6M WSM5732-6M WSM5735-6M WSM5735Y-6M WSM5736BK-6M Male RA 6
  WSM5715-8M WSM5732-8M WSM5735-8M WSM5735Y-8M WSM5736BK-8M Male RA 8
  WSM5715-10M WSM5732-10M WSM5735-10M WSM5735Y-10M WSM5736BK-10M Male RA 10
  WSM5715-15M WSM5732-15M WSM5735-15M WSM5735Y-15M WSM5736BK-15M Male RA 15
DeviceNet Mid Cable 7/8" Cordsets with Connector on One End
Cable Type 5722 Cable Type 5723 Cable Type 5722B Cable Type
 5722BK		 Cable Type
 5711		 Gender Connector Style ST=Straight  RA=Right-Angled Cable Length
Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair
2x1.04+2x0.52 2x1.04+2x0.52 2x1.04+2x0.52 2x1.04+2x0.52 2x1.31+2x0.52
RKM5722-1M RKM5723-1M RKM5722B-1M RKM5722BK-1M RKM5711-1M Female ST 1
RKM5722-2M RKM5723-2M RKM5722B-2M RKM5722BK-2M RKM5711-2M Female ST 2
RKM5722-4M RKM5723-4M RKM5722B-4M RKM5722BK-4M RKM5711-4M Female ST 4
RKM5722-6M RKM5723-6M RKM5722B-6M RKM5722BK-6M RKM5711-6M Female ST 6
RKM5722-8M RKM5723-8M RKM5722B-8M RKM5722BK-8M RKM5711-8M Female ST 8
RKM5722-10M RKM5723-10M RKM5722B-10M RKM5722BK-10M RKM5711-10M Female ST 10
RKM5722-15M RKM5723-15M RKM5722B-15M RKM5722BK-15M RKM5711-15M Female ST 15
WKM5722-1M WKM5723-1M WKM5722B-1M WKM5722BK-1M WKM5711-1M Female RA 1
WKM5722-2M WKM5723-2M WKM5722B-2M WKM5722BK-2M WKM5711-2M Female RA 2
WKM5722-4M WKM5723-4M WKM5722B-4M WKM5722BK-4M WKM5711-4M Female RA 4
WKM5722-6M WKM5723-6M WKM5722B-6M WKM5722BK-6M WKM5711-6M Female RA 6
WKM5722-8M WKM5723-8M WKM5722B-8M WKM5722BK-8M WKM5711-8M Female RA 8
WKM5722-10M WKM5723-10M WKM5722B-10M WKM5722BK-10M WKM5711-10M Female RA 10
WKM5722-15M WKM5723-15M WKM5722B-15M WKM5722BK-15M WKM5711-15M Female RA 15
RSM5722-1M RSM5723-1M RSM5722B-1M RSM5722BK-1M RSM5711-1M Male ST 1
RSM5722-2M RSM5723-2M RSM5722B-2M RSM5722BK-2M RSM5711-2M Male ST 2
RSM5722-4M RSM5723-4M RSM5722B-4M RSM5722BK-4M RSM5711-4M Male ST 4
RSM5722-6M RSM5723-6M RSM5722B-6M RSM5722BK-6M RSM5711-6M Male ST 6
RSM5722-8M RSM5723-8M RSM5722B-8M RSM5722BK-8M RSM5711-8M Male ST 8
RSM5722-10M RSM5723-10M RSM5722B-10M RSM5722BK-10M RSM5711-10M Male ST 10
RSM5722-15M RSM5723-15M RSM5722B-15M RSM5722BK-15M RSM5711-15M Male ST 15
WSM5722-1M WSM5723-1M WSM5722B-1M WSM5722BK-1M WSM5711-1M Male ST 1
WSM5722-2M WSM5723-2M WSM5722B-2M WSM5722BK-2M WSM5711-2M Male RA 2
WSM5722-4M WSM5723-4M WSM5722B-4M WSM5722BK-4M WSM5711-4M Male RA 4
WSM5722-6M WSM5723-6M WSM5722B-6M WSM5722BK-6M WSM5711-6M Male RA 6
WSM5722-8M WSM5723-8M WSM5722B-8M WSM5722BK-8M WSM5711-8M Male RA 8
WSM5722-10M WSM5723-10M WSM5722B-10M WSM5722BK-10M WSM5711-10M Male RA 10
WSM5722-15M WSM5723-15M WSM5722B-15M WSM5722BK-15M WSM5711-15M Male RA 15




Cable Type
 5731		 Cable Type 5711B Cable Type 5711BK Cable Type 5728 Gender Connector Style ST=Straight  RA=Right-Angled Cable Length
Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair
2x1.31+2x0.52 2x1.31+2x0.52 2x1.31+2x0.52 2x1.31+2x0.82
RKM5731-1M RKM5711B-1M RKM5711BK-1M RKM5728-1M Female ST 1
RKM5731-2M RKM5711B-2M RKM5711BK-2M RKM5728-2M Female ST 2
RKM5731-4M RKM5711B-4M RKM5711BK-4M RKM5728-4M Female ST 4
RKM5731-6M RKM5711B-6M RKM5711BK-6M RKM5728-6M Female ST 6
RKM5731-8M RKM5711B-8M RKM5711BK-8M RKM5728-8M Female ST 8
RKM5731-10M RKM5711B-10M RKM5711BK-10M RKM5728-10M Female ST 10
RKM5731-15M RKM5711B-15M RKM5711BK-15M RKM5728-15M Female ST 15
WKM5731-1M WKM5711B-1M WKM5711BK-1M WKM5728-1M Female RA 1
WKM5731-2M WKM5711B-2M WKM5711BK-2M WKM5728-2M Female RA 2
WKM5731-4M WKM5711B-4M WKM5711BK-4M WKM5728-4M Female RA 4
WKM5731-6M WKM5711B-6M WKM5711BK-6M WKM5728-6M Female RA 6
WKM5731-8M WKM5711B-8M WKM5711BK-8M WKM5728-8M Female RA 8
WKM5731-10M WKM5711B-10M WKM5711BK-10M WKM5728-10M Female RA 10
WKM5731-15M WKM5711B-15M WKM5711BK-15M WKM5728-15M Female RA 15
RSM5731-1M RSM5711B-1M RSM5711BK-1M RSM5728-1M Male ST 1
RSM5731-2M RSM5711B-2M RSM5711BK-2M RSM5728-2M Male ST 2
RSM5731-4M RSM5711B-4M RSM5711BK-4M RSM5728-4M Male ST 4
RSM5731-6M RSM5711B-6M RSM5711BK-6M RSM5728-6M Male ST 6
RSM5731-8M RSM5711B-8M RSM5711BK-8M RSM5728-8M Male ST 8
RSM5731-10M RSM5711B-10M RSM5711BK-10M RSM5728-10M Male ST 10
RSM5731-15M RSM5711B-15M RSM5711BK-15M RSM5728-15M Male ST 15
WSM5731-1M WSM5711B-1M WSM5711BK-1M WSM5728-1M Male ST 1
WSM5731-2M WSM5711B-2M WSM5711BK-2M WSM5728-2M Male RA 2
WSM5731-4M WSM5711B-4M WSM5711BK-4M WSM5728-4M Male RA 4
WSM5731-6M WSM5711B-6M WSM5711BK-6M WSM5728-6M Male RA 6
WSM5731-8M WSM5711B-8M WSM5711BK-8M WSM5728-8M Male RA 8
WSM5731-10M WSM5711B-10M WSM5711BK-10M WSM5728-10M Male RA 10
WSM5731-15M WSM5711B-15M WSM5711BK-15M WSM5728-15M Male RA 15


DeviceNet Thick Cable 7/8" Cordsets with Connector on One End
Cable Type 575 Cable Type 579 Cable Type 5727 Cable Type
 5730		 Cable Type
 579B		 Cable Type
 579BK		 Gender Connector Style ST=Straight  RA=Right-Angled Cable Length
Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair Power Pair+ Data Pair
2x1.65+2x0.82 2x1.65+2x0.82 2x1.65+2x0.82 2x1.65+2x0.82 2x1.65+2x0.82 2x1.65+2x0.82
RKM575-1M RKM579-1M RKM5727-1M RKM5730-1M RKM579B-1M RKM579BK-1M Female ST 1
RKM575-2M RKM579-2M RKM5727-2M RKM5730-2M RKM579B-2M RKM579BK-2M Female ST 2
RKM575-4M RKM579-4M RKM5727-4M RKM5730-4M RKM579B-4M RKM579BK-4M Female ST 4
RKM575-6M RKM579-6M RKM5727-6M RKM5730-6M RKM579B-6M RKM579BK-6M Female ST 6
RKM575-8M RKM579-8M RKM5727-8M RKM5730-8M RKM579B-8M RKM579BK-8M Female ST 8
RKM575-10M RKM579-10M RKM5727-10M RKM5730-10M RKM579B-10M RKM579BK-10M Female ST 10
RKM575-15M RKM579-15M RKM5727-15M RKM5730-15M RKM579B-15M RKM579BK-15M Female ST 15
WKM575-1M WKM579-1M WKM5727-1M WKM5730-1M WKM579B-1M WKM579BK-1M Female RA 1
WKM575-2M WKM579-2M WKM5727-2M WKM5730-2M WKM579B-2M WKM579BK-2M Female RA 2
WKM575-4M WKM579-4M WKM5727-4M WKM5730-4M WKM579B-4M WKM579BK-4M Female RA 4
WKM575-6M WKM579-6M WKM5727-6M WKM5730-6M WKM579B-6M WKM579BK-6M Female RA 6
WKM575-8M WKM579-8M WKM5727-8M WKM5730-8M WKM579B-8M WKM579BK-8M Female RA 8
WKM575-10M WKM579-10M WKM5727-10M WKM5730-10M WKM579B-10M WKM579BK-10M Female RA 10
WKM575-15M WKM579-15M WKM5727-15M WKM5730-15M WKM579B-15M WKM579BK-15M Female RA 15
RSM575-1M RSM579-1M RSM5727-1M RSM5730-1M RSM579B-1M RSM579BK-1M Male ST 1
RSM575-2M RSM579-2M RSM5727-2M RSM5730-2M RSM579B-2M RSM579BK-2M Male ST 2
RSM575-4M RSM579-4M RSM5727-4M RSM5730-4M RSM579B-4M RSM579BK-4M Male ST 4
RSM575-6M RSM579-6M RSM5727-6M RSM5730-6M RSM579B-6M RSM579BK-6M Male ST 6
RSM575-8M RSM579-8M RSM5727-8M RSM5730-8M RSM579B-8M RSM579BK-8M Male ST 8
RSM575-10M RSM579-10M RSM5727-10M RSM5730-10M RSM579B-10M RSM579BK-10M Male ST 10
RSM575-15M RSM579-15M RSM5727-15M RSM5730-15M RSM579B-15M RSM579BK-15M Male ST 15
WSM575-1M WSM579-1M WSM5727-1M WSM5730-1M WSM579B-1M WSM579BK-1M Male ST 1
WSM575-2M WSM579-2M WSM5727-2M WSM5730-2M WSM579B-2M WSM579BK-2M Male RA 2
WSM575-4M WSM579-4M WSM5727-4M WSM5730-4M WSM579B-4M WSM579BK-4M Male RA 4
WSM575-6M WSM579-6M WSM5727-6M WSM5730-6M WSM579B-6M WSM579BK-6M Male RA 6
WSM575-8M WSM579-8M WSM5727-8M WSM5730-8M WSM579B-8M WSM579BK-8M Male RA 8
WSM575-10M WSM579-10M WSM5727-10M WSM5730-10M WSM579B-10M WSM579BK-10M Male RA 10
WSM575-15M WSM579-15M WSM5727-15M WSM5730-15M WSM579B-15M WSM579BK-15M Male RA 15
