DeviceNet Bus Tees (Drop/Branch/Segment Power Supply)



These Tees are designed for DeviceNet to enable Branches or Drops from the Main Bus Line. Manufactured with Stainless Steel or Nickel Plated Brass coupling nuts, they provide quick and secure IP67 connections.
The naming sequence on the Sizes column is starting on the left branch of the tee and anticlockwise to the bottom of the tee, then to the right branch of the tee.

The "h" shaped Tees offer the ability to align two of the cables in parallel where a right angled connection is not possible. Similar flexibility is offered with models that have a cordset as part of the Tee. Please insert the length (in metres) of cordset required where * appears.

Designed for DeviceNet  -  All connectors are 5-Pole
Other gender and options for keyway position are available to order
Type
(316 Stainless Steel)
Type
(Nickel Plated Brass)
Description Sizes Drawing
RSCV 2RKCV 57 RSC 2RKC 57 M12 Bus Tee (Drop/Branch)
M12 drop
Max drop 6 metres
M12 Male,
M12 Female,
M12 Female
1
RSCV RKCV 572-*M/RKCV 57 RSC RKC 572-*M/RKC 57 M12 Bus Tee (Drop/Branch)
M12 cordet drop (*=Length)
Max drop 6 metres
M12 Male,
M12 Female,
M12 Female
2
VB2-FKMV/FKMV/FSMV 57 VB2-FKM/FKM/FSM 57 M12 Bus Tee (Drop/Branch)
M12 drop
Max drop 6 metres
M12 Female,
M12 Female,
M12 Male
3
RSMV FKMV RKMV 57 RSM FKM RKM 57 7/8" Bus Tee (Drop/Branch)
M12 drop
Max Drop 6 metres
7/8" Male,
7/8" Female,
M12 Female
4
RSMV RKCV 57x-*M RKMV 57 RSM RKC 57x-*M RKM 57 7/8" Bus Tee (Drop/Branch)
M12 cordset drop (*=Length)
Max Drop 6 metres
7/8" Male,
7/8" Female,
M12 Female
5
RSMV-2RKMV 57 RSM-2RKM 57 7/8" Bus Tee (Drop/Branch)
Max Drop 6 metres
7/8" Male,
7/8" Female,
7/8" Female
6
MT-RSMV/2RKMV 57/DNET MT-RSM/2RKM 57/DNET 7/8" Bus Tee (Drop/Branch)
Max Drop 6 metres
7/8" Male,
7/8" Female,
7/8" Female
7
SH-RKMV/RSMV/RKMV 57 SH-RKM/RSM/RKM 57 7/8" Bus "h" Tee (Drop/Branch)
Max Drop 6 metres
7/8" Female,
7/8" Male,
7/8" Female
8
SH-RSMV-2RKMV 57 SH-RSM-2RKM 57 7/8" Bus "h" Tee (Drop/Branch)
Max Drop 6 metres
7/8" Male,
7/8" Female,
7/8" Female
9
RSM RKM 57 WSM 40 PST RSM RKM 57 WSM 40 PST 7/8" Bus Power Tee
Supplies Segment Power &
Reverse Current Protection
7/8" Male,
7/8" Female,
7/8" Male
10

PINOUTS:                    M12 (Eurofast)                                  7/8" (Minifast)



Dimensions Drawings

Inches (millimetres)

                    1:   RSCV 2RKCV 57                            2: RSCV RKCV 572-*M/RKCV 57

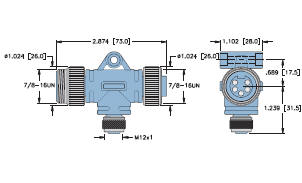

3: VB2-FKMV/FKMV/FSMV 57                             4: RSMV FKMV RKMV 57

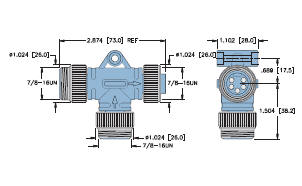

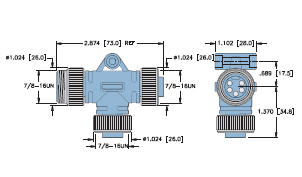

5: RSMV RKCV 57x-*M RKMV 57                                6: RSMV-2RKMV 57

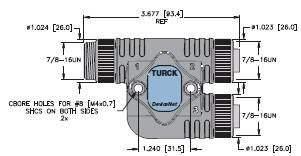

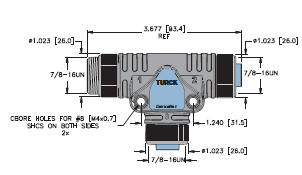

       7:  MT-RSMV/2RKMV 57/DNET                             8: SH-RKMV/RSMV/RKMV 57

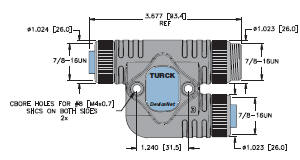

           9:  SH-RSMV-2RKMV 57                                 10: RSM RKM 57 WSM 40 PST
