DN DiagnosticConn

These connectors provide a convenient bus monitoring facility at a bus drop/tee or anywhere else using a straight-through connector. 4 indicating LEDs monitor the voltage on the bus Low Voltage Threshold is 12.4V minimum, "OK" Voltage Range is 12.96V - 24.78V and High Voltage Threshold is 25.3V maximum. Two mounting holes make it easy to position the connectors for proper visibility.

Designed for DeviceNet - All connectors are 5-Pole Other gender and options for keyway position are available to order
Type (316 Stainless Steel)	Type (Nickel Plated Brass)	Description	Sizes	Drawing
MT-RKMV/RSMV/RKMV 57/DNET/VM	MT-RKM/RSM/RKM 57/DNET/VM	7/8" Bus Tee (Drop/Branch) With Diagnostic LEDs Max Drop 6 metres	7/8" Female, 7/8" Male, 7/8" Female	1
MT-RSMV/2RKMV 57/DNET/VM	MT-RSM/2RKM 57/DNET/VM	7/8" Bus Tee (Drop/Branch) With Diagnostic LEDs Max Drop 6 metres	7/8" Male, 7/8" Female, 7/8" Female	2
SH-RKMV/RSMV/RKMV 57/VM	SH-RKM/RSM/RKM 57/VM	7/8" Bus "H" Tee (Drop/Branch) with LED Diagnostics Max Drop 6 metres	7/8" Female, 7/8" Male, 7/8" Female	3
RSMV RSMV 57-0/VM	RSM RSM 57-0/VM	7/8" Diagnostic LED Straight Connector (joins Female-Female)	7/8" Male, 7/8" Male	4
RSMV RKMV 57-0/VM	RSM RKM 57-0/VM	7/8" Diagnostic LED Straight Connector (joins Male-Female)	7/8" Male, 7/8" Female	5
RKMV RKMV 57-0/VM	RKM RKM 57-0/VM	7/8" Diagnostic LED Straight Connector (joins Male-Male)	7/8" Female, 7/8" Female	6

PINOUTS: M12 (Eurofast) 7/8" (Minifast)

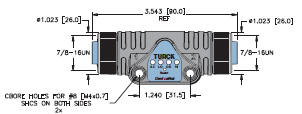

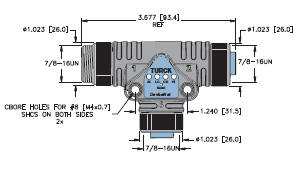

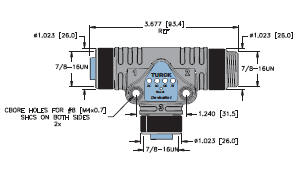

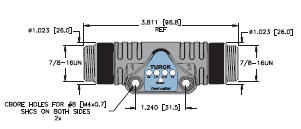

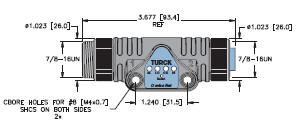

Dimensions Drawings

Inches (millimetres)

1: MT-RKMV/RSMV/RKMV 57/DNET/VM 2: MT-RSMV/2RKMV 57/DNET/VM

3: SH-RKMV/RSMV/RKMV 57/VM 4: RSMV RSMV 57-0/VM

5: RSMV RKMV 57-0/VM 6: RKMV RKMV 57-0/VM
