DeviceNet™ Conduit Adapters and Wall Box Adapters


Conduit Adapter - 2 Gang

These DeviceNet Conduit Adapters are designed for use with U.S. 3/4" Form 8 or Mark 9 conduit boxes. However we can provide varying designs of suitable stainless steel mounting boxes or wall plates to suit your requirements. These outlets provide a useful quick disconnect arrangement.  A gasket and mounting screws are provided with the adapter. The IP67 rating is dependent on the outlets being used with the appropriate connector or blanking cover. Connectors are stainless steel.

Type Outlet Sockets Socket Connector For US Conduit Box Degree of Protection
BCA-57-E123 1 M12 3/4" Form 8  or Mark9 IP67
BCA-57-E223 2 M12 3/4" Form 8  or Mark9 IP67
BCA-57-M123 1 7/8" 3/4" Form 8  or Mark9 IP67
BCA-57-M223 2 7/8" 3/4" Form 8  or Mark9 IP67
BCA1-F7-57-M123 1 7/8" 1" Form 7 IP67
BCA1-F7-57-M223 2 7/8" 1" Form 7 IP67

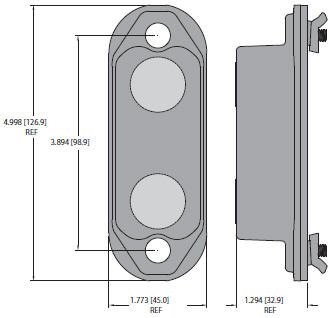

Dimensions Drawing

Inches  (mm)



Type:  BCA-57-x                                                           Type: BCA1-F7-57-x





Wall Plate Adapter

DeviceNet Wall Plate Adapter

BPA-57-E113 has M12 Female Connector

BPA-57-M113 has 7/8" Female Connector

These DeviceNet Wall Plate Adapters are designed for use with U.S. single gang wall outlet boxes. However we can provide varying designs of suitable stainless steel mounting boxes or wall plates to suit your requirements. These outlets provide a useful quick disconnect industrial outlet arrangement. A gasket is provided with the adapter. The IP67 rating is dependent on the outlets being used with the appropriate connector or blanking cover. Connector is female, either M12 or 7/8" in size and stainless steel.

PINOUTS



M12                       7/8"

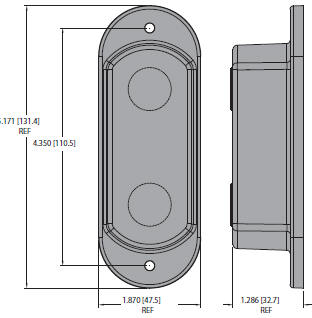

Dimensions Drawing

Inches (millimetres)
