DeviceNet™ Junction Boxes IP67 - I/O Blocks

These Junction Boxes, or I/O blocks as they are also known, enable flexible connection of multiple I/O to an DeviceNet Bus in the field or on a machine without the need for an enclosure.

These units are ideal in harsh applications such as mobile equipment, automotive, food and beverage and offer quick and secure plug-in connections.

Type No of Inputs No of Outputs Input Type Notes Degree of Protection Drawing
FDNL-CSG88-W 8 8 pnp Single 7/8" Bus Connection IP67 1
FDNL-L1600-T 16 0 pnp/npn PNP/NPN Configurable Inputs IP67 1
FDNL-N1600-T 16 0 npn NPN Inputs IP67 1
FDNL-S0808HI-MM 8 8 pnp Output: 2A High Power IP67 1
FDNL-S1600-T 16 0 pnp   IP67 1
FDNL-S1600-W 16 0 pnp Single 7/8" Bus Connection IP67 1
FDNL-SN0808N-C 8 8 pnp In: PNP/NPN, Out:NPN, Bus M12 IP67 1
FDNL-XSG16-T 16 16 4-20mA 16 Channels Configurable In/Out IP67 1
FDNP-L0808H-TT 8 8 pnp/npn In: PNP/NPN, Out: 2A High Power IP67 2
FDNP-P0808H-TT 8 8 pnp Outputs: 2A High Power IP67 2
FDNP-S0808G-TT 8 8 pnp   IP67 2
FDNP-S0808G-WW 8 8 pnp Connectors: Bus 1x7/8", Aux 1x7/8" IP67 2
FDNP-S0808H-WW 8 8 pnp Connectors: Bus 1x7/8", Aux 1x7/8". Out: 1.4A IP67 2
FDNP-XSG16-ST 16 16 pnp/npn 16 Ch Configurable In/Out, Rear Terminals IP67 2
FDNP-XSG16-TT 16 16 pnp/npn 16 Channels Configurable In/Out IP67 2



DeviceNet™ Passive Junction Boxes IP67  -   I/O Blocks

These are designed for DeviceNet and have a variety of drop quantities, housing material and port location. All are IP67 when fitted with the correct cordset/connector or blanking cover. Bus In/Out connectors are 7/8" nickel plated brass and these units are also available with stainless steel connectors

Type Drop
Connectors
No of Drops Connector
Postion
Housing
Material
Bus In/Out Connectors Drawing
JBBS-57-E1001 M12 10 Side Cast Aluminium 7/8" 3
JBBS-57-E801 M12 8 Side Cast Aluminium 7/8" 3
JBBS-57-E601 M12 6 Side Cast Aluminium 7/8" 4
JBBS-57-E401 M12 4 Side Cast Aluminium 7/8" 4
JBBS-57-M801 7/8" 8 Side Cast Aluminium 7/8" 3
JBBS-57-M601 7/8" 6 Side Cast Aluminium 7/8" 3
JBBS-57-M401 7/8" 4 Side Cast Aluminium 7/8" 4
JBBS-57-E811 M12 8 Front GRP 7/8" 5
JBBS-57-E1021 M12 10 Side GRP 7/8" 6
JBBS-57-E821 M12 8 Side GRP 7/8" 6
JBBS-57-E621 M12 6 Side GRP 7/8" 6
JBBS-57-E421 M12 4 Side GRP 7/8" 7
JBBS-57-FS-E424 M12 4 Front GRN 7/8" 8



Dimensions Drawings

Inches (millimetres)

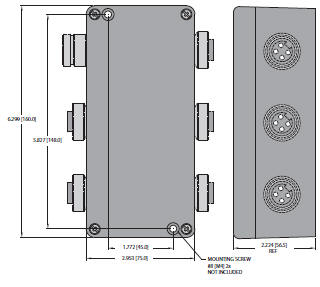

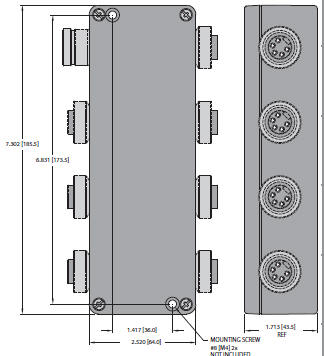

Drawing 1                                                                                   Drawing 2

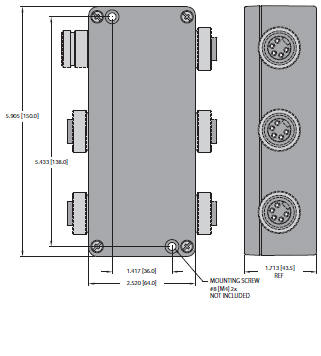

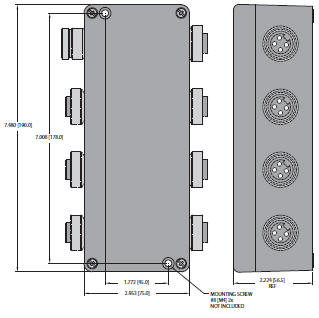

Drawing 3                                                                                   Drawing 4

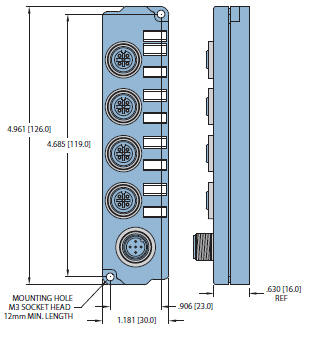

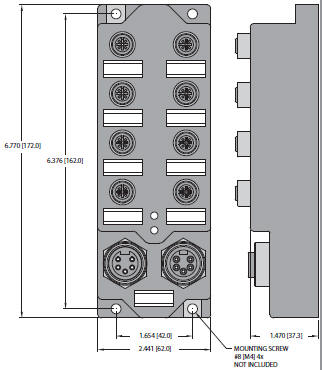

Drawing 5                                                                                   Drawing 6

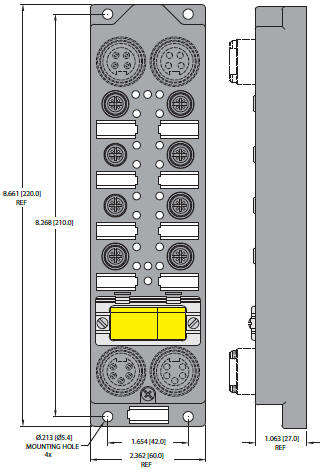

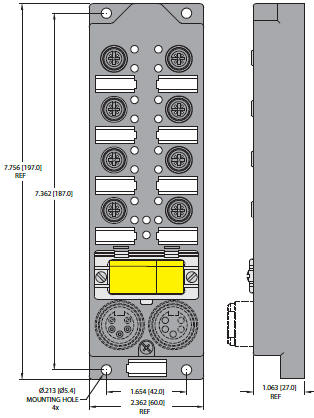

Drawing 7                                                                                   Drawing 8
