DeviceNet Bus Couplers, Reducers, Gender Changers



The following is a list of useful 7/8" and M12 DeviceNet connectors, which facilitate a variety of connection situations. Available with 316 Stainless Steel or Nickel Plated Brass coupling nuts. Larger connectors have mounting holes to enable attaching the connector to a wall or bracket if required.

Designed for DeviceNet  -  All connectors are 5-Pole
Other gender and options for keyway position are available to order
Type
(316 Stainless Steel)
Type
(Nickel Plated Brass)
Description Sizes Drawing
RSMV 57-FKV 4.5 RSM 57-FK 4.5 7/8" to M12
Reducer/Size Adaptor
7/8" Male
M12 Female
1
RSCV RKCV 57 RSC RKC 57 M12 Coupler
Straight
M12 Male
M12 Female
2
RSCV WKCV 57 RSC WKC 57 M12 Coupler
Right Angled
M12 Male
M12 Female
3
WSMV RKMV 57 WSM RKM 57 7/8" Coupler
Right Angled
7/8" Male
7/8" Female
4
RSMV RSMV 57-0 RSM RSM 57-0 7/8"Gender Changer
(joins Female-Female)
7/8" Male
7/8" Male
5
RSMV RSMV 57 RSM RSM 57 7/8" Gender Changer
(joins Female-Female)
7/8" Male
7/8" Male
6
RKMV RKMV 57-0 RKM RKM 57-0 Gender Changer
(joins Male-Male)
7/8" Female
7/8" Female
7
RKMV RKMV 57 RKM RKM 57 Gender Changer
(joins Male-Male)
7/8" Female
7/8" Female
8

PINOUTS:                    M12 (Eurofast)                                  7/8" (Minifast)



Dimensions Drawings

Inches (millimetres)

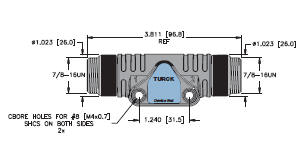

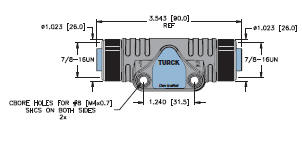

1:  RSMV 57-FKV 4.5                                      2:  RSCV RKCV 57

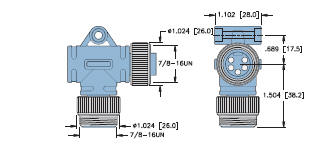

3:  RSCV WKCV 57                                      4:  WSMV RKMV 57

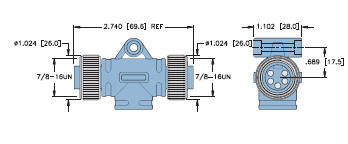

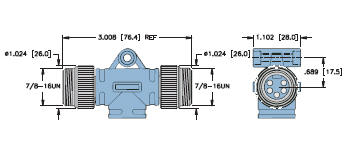

5:  RSMV RSMV 57-0                                        6: RSMV RSMV 57





7:  RKMV RKMV 57-0                                      8:  RKMV RKMV 57
