DeviceNet™ M12 Cordsets

Connectors on Both Ends

As seen on our DeviceNet Bulk Cable page, there are over 20 types of DeviceNet cable. When combined with the different connector types, the result is quite a large range of cordsets. With connectors on both ends, the list of possible part numbers is too long to list here. Instead, the part number can be assembled using the matrix below. Standard lengths are 1M, 2M, 4M, 6M, 8M, 10M, 15M and in +5M increments for longer lengths available to order.

For Stainless Steel Coupling Nuts change RSC to RSCV, WSC to WSCV, RKC to RKCV, WKC to WKCV

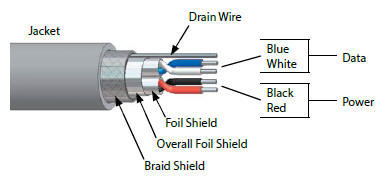

Typical DeviceNet Cable

M12 Connector Dimensions in Inches (millimetres)




RSC Male Straight M12                     WSC Male Right Angled M12




          RKC Female Straight M12                  WKC Female Right Angled M12

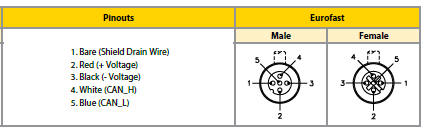

Meaning of Type Codes

To use the matrix, select the connector on one end from the left columns. Select the connector on the other end from the rows along the top. Where the row and column intersect is the guide for the part number. All deviceNet cables begin with 57, so replacing the x, complete this number with the desired cable type. Replace the * with the length of cordset required in metres.

For example if a 10 metre cordset using Cable Type 5724 is required with an M12 Straight Male connector on one end and an M12 Female Right Angled connector on the other, the part number is RSC WKC 5724-10M


M12 - M12 Cordsets for DeviceNet

Note: When M12 connector is used only Mid and Thin types of cable can be used.

    Male Straight Male Right Angled Female Straight Female Right Angled


M12





M8



  RSC WSC RKC WKC


Male Straight

RSC RSC RSC 57x-*M RSC WSC 57x-*M RSC RKC 57x-*M RSC WKC 57x-*M


Male Right Angled


WSC   WSC WSC 57x-*M WSC RKC 57x-*M WSC WKC 57x-*M


Female Straight


RKC     RKC RKC 57x-*M RKC WKC 57x-*M


Female Right Angled


WKC       WKC WKC 57x-*M

Cable Types are HERE. Standard lengths are 1M, 2M, 4M, 6M, 8M, 10M, 15M and in +5M increments for longer lengths available to order.




M12 - M8 Reducing Cordsets for DeviceNet

These cordsets have M8 connector (left hand column) on one end and an M12 connector (top rows) on the other.

Note: When M8 connector is used only Pico Thin Type 5724 or 5715 cable can be used.

Also when Pico Thin cable is used, the overmoulding on the M12 connectors is smaller. See below for dimensions. The M12 connector part numbers change from RSC, WSC, RKC, WKC to RST, WST, RKT, WKT.

For Stainless Steel Coupling Nuts change RSC to RSCV, WSC to WSCV, RKC to RKCV, WKC to WKCV and change PSG 5M, PKG 5M to PSGV 5M, PKGV 5M.

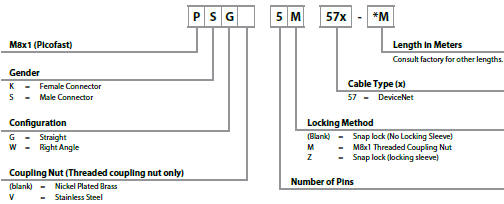

Meaning of Type Codes

    Male Straight Male Right Angled Female Straight Female Right Angled


M12





M8



  RST WST RKT WKT


Male Straight

PSG 5M PSG 5M RST 57x-*M PSG 5M WST 57x-*M PSG 5M RKT 57x-*M PSG 5M WKT 57x-*M


Male Right Angled


PSW 5M PSW 5M RST 57x-*M  PSW 5M WST 57x-*M PSW 5M RKT 57x-*M PSW 5M WKT 57x-*M


Female Straight


PKG 5M PKG 5M RST 57x-*M  PKG 5M WST 57x-*M  PKG 5M RKT 57x-*M PKG 5M WKT 57x-*M


Female Right Angled


PKW 5M  PKW 5M RST 57x-*M  PKW 5M WST 57x-*M PKW 5M RKT 57x-*M  PKW 5M WKT 57x-*M

Cable Types are HERE. Standard lengths are 1M, 2M, 4M, 6M, 8M, 10M, 15M and in +5M increments for longer lengths available to order.



M12 Pico Connector Dimensions in Inches (millimetres)



RST Male Straight M12 Pico Connector               WST Male Right Angled M12 Pico Connector





RKT Straight Female M12 Pico Connector            WKT Right Angled Female M12 Pico Connector

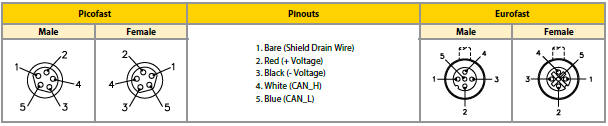

M8 Pico Connector Dimensions in Inches (millimetres)

PSG 5M Male Straight M8 Pico Connector               PSW 5M Male Right Angled M8 Pico Connector



PKG 5M Straight Female M8 Pico Connector            PKW 5M Right Angled Female M8 Pico Connector
